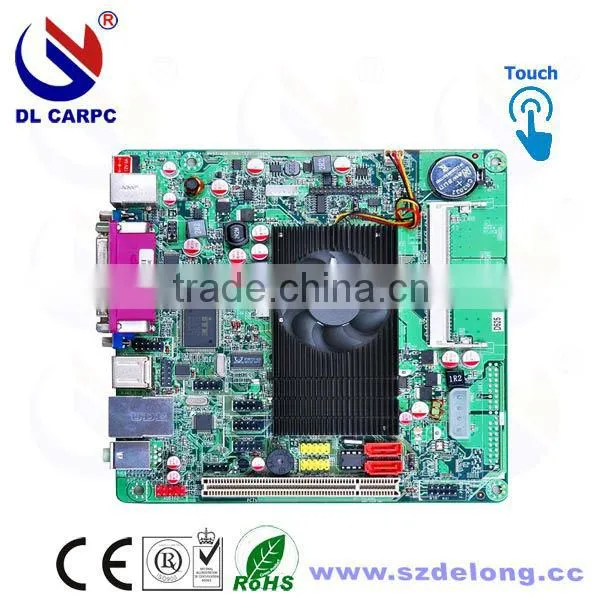

Intel Atom Dual Core CPU D525 MINI ITX Mainboard1.Onboard dual core cpu,1.8GHz
2.17*17cm,mini motherboard
3.VGA,HDMI...
Hot Sale Intel Atom Dual Core CPU D525 MINI ITX Mainboard Intel Atom Mainboard
Introduction:
INTEL D510 - D525 + NM10 series chipset,
Support INTEL EBGA437 533 external clock ATOM D510 - D525
Support: dual channel DDR3 memory.
Plate load: Intel GMA 3150 graphics core.
Support: a PCI.
Provide: 2 COM port, and 2 IDE interface, 2 SATA interface,
support: ALC662 channel output, a Realtek 8103 c, 10/100/1000 m Ethernet controlle
Specification
| Chipset: | INTEL D510 - D525 + NM10 series chipset |
| CPU: |
Intel D525 dual-core 1.8 G, 6 COM port memory support DDR3 generation memory
|
| RAM: | support 1*DDR3 generation memory, the maximun support 2G DDR3 |
| Accelerated graphics port: | The integrated video card model for INTEL EXTREME GMA3150, the biggest can be Shared 256 MB memory, graphics card is equivalent to INTEL G31 efficiency. |
MINI-ITX Embeded Motherboard Specification
| Graphics cards | Intel Graphics Media Accelerator662 ,support DirectX 9.0 |
| Extended slots | 1*PCI Slot |
| Onboard IDE | 1*IDE,1*MINI-IDE |
| Onboard serial ATA | 2*SATA |
| Onboard Lan | 1* Realtek 8103C,10/100/1000M LAN |
| Onboard sound chip | HD ALC662 2/4/5.1 Channel output |
| Onboard TV/AV Output | 1 pcs(optional) |
| Front I/O interface |
3 *USB row needles support 6 *USB2.0 port 1*ATX Power connector 1 set of lead sound pin 1 set of serial row needles |

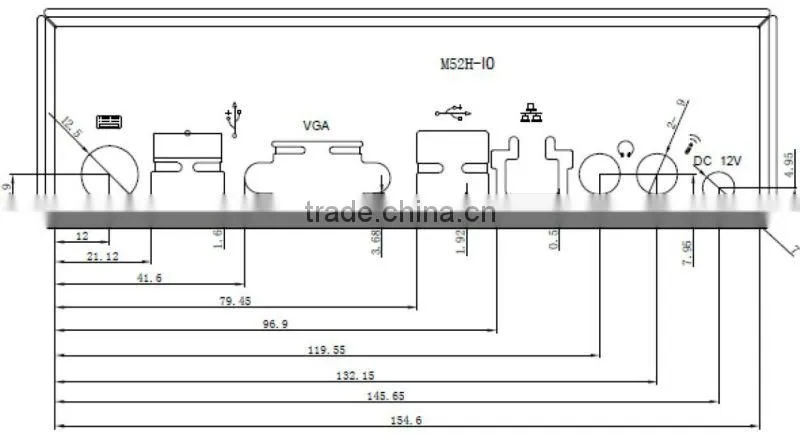

| Back I/O interface |
1*RJ45 LAN PORT 1*PS2 keyboard/mouse connector 1* Video connector support VGA 2*USB 2.0 1*HD Audio interface 6*COM Ports |
| BIOS |
AMIBIOS 4/8Mbit flash memory |
| OS | Windows XP, Windows 2000,Linux, Win CE |
| System monitoring and management |
Wake On Lan
System power management Temperature management, voltage management Fan speed monitoring
|
| Working Temperature | 0°C ~ 60°C |
| Working Humidity | 0% ~ 95% (relative humidity, no condensation) are suitable for all kinds of environment |
| ATX |
MINI-ITX 17 cm x 17 cm |
-ITX

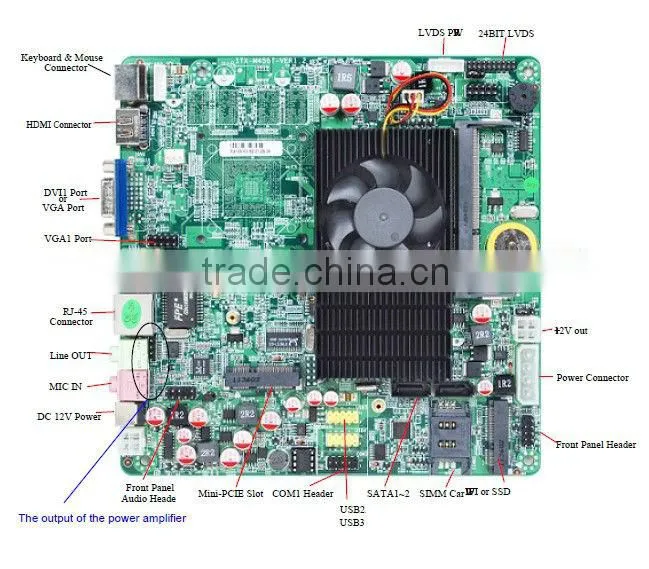

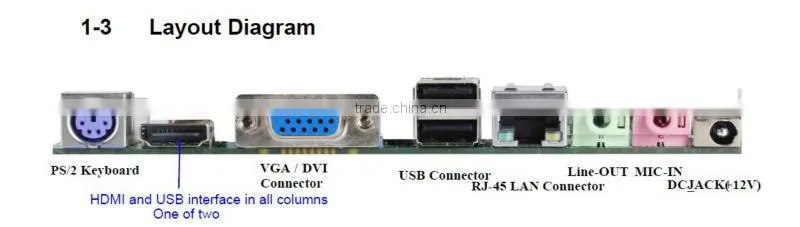

Layout Diagram
Jumper
| Jumper | Name | Description |
| JBAT | CMOS RAM Clear Function Setting | 3-pin Block |
Connectors
| Connector | Name | Description |
| DC12V_IN1 | DC power Connector | DC Jack |
| PWR1 | Power out Connector | 4-pin Connector |
| KB1 | PS2 Keyboard & Mouse Connector | 6-pin Female |
| HDMI | High-Definition Multimedia Interface | 19-pin Connector |
| VGA1 | Video Graphic Attach Connector | 15-pin Female |
| USB1 | USB Port Connectors | 4-pin Connector s |
| USB1 | RJ-45 LAN Connectors | 8-pin Connectors |
| JPHONE1 | Line Out | 1 Phone JACK |
| JMIC1 | MIC | 1 Phone JACK |
| SATA1/SATA2 | Serial ATAII Connectors | 7-pin Connector |
Headers
| Header | Name | Description |
| FP_AUDIO1 | Front panel audio Headers | 9-pin block |

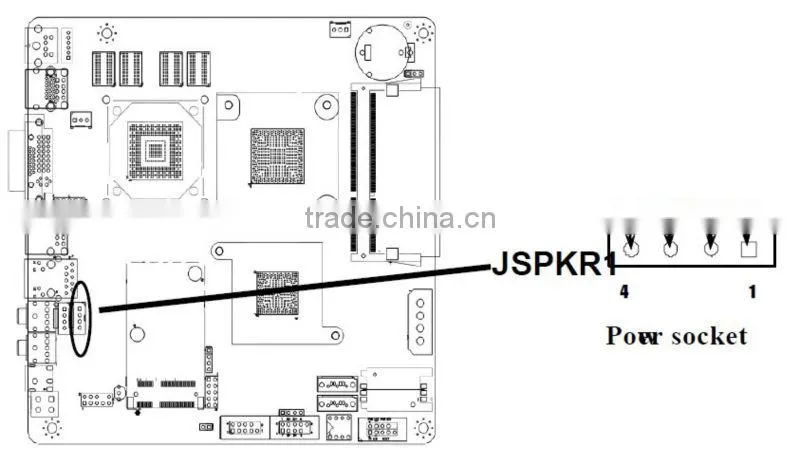

| JSPKR1 | output of the power amplifier-In Header | 4-pin Block |
| COM1 | Serial Port Header | 9-pin Block |
| USB3 | USB Header 4-pin Block | |
| USB4 | USB Header 9- pin Block |
Hardware Installation

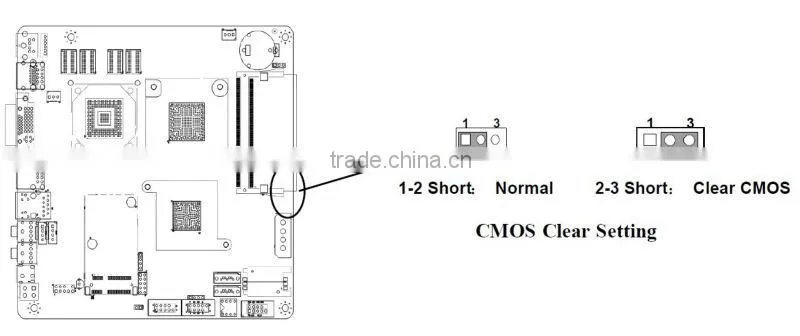

Jumper Setting
(1) Clear CMOS (2-pin): JBAT

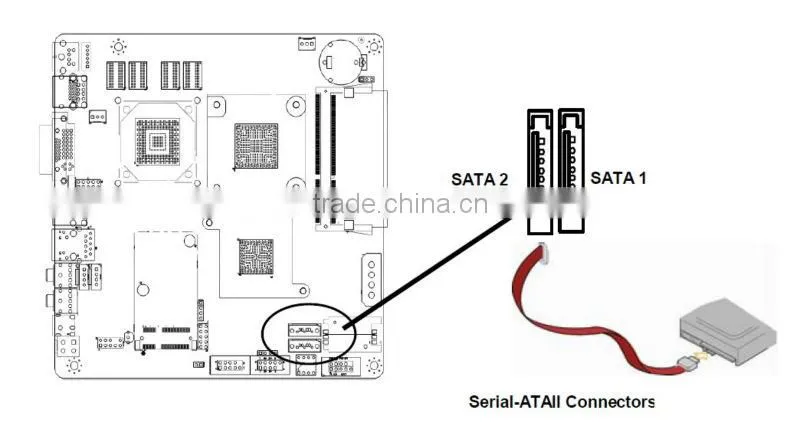

(2) Serial-ATAII Port connector: SATA1/SATA2

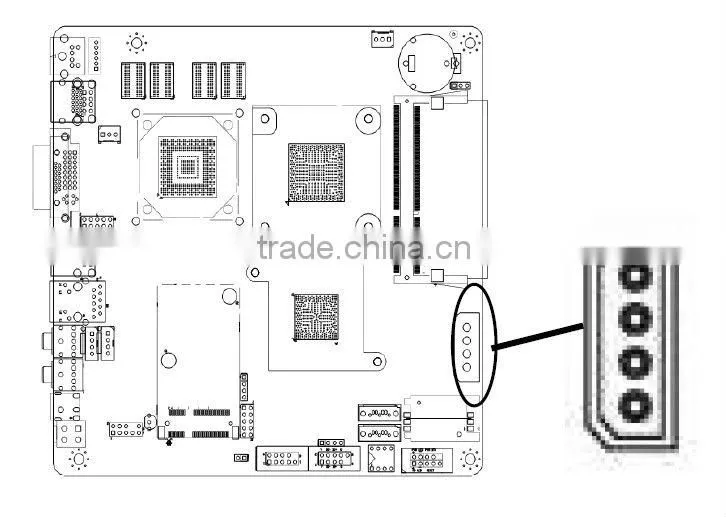

(3) Large 4-Pin Power Connector: PWR1
The connectors are 4-pin connector that supports extra 12V / 5V power to your
system.
Headers

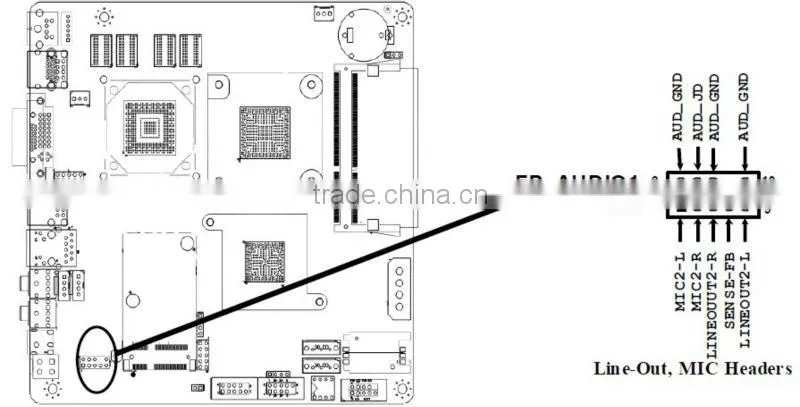

(1) Line-Out, MIC-In Header (9-pin): FP_AUDIO1 Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
(2) CD AUDIO-In Headers (4-pin): CDIN1
CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM
CD-Audio output connector.

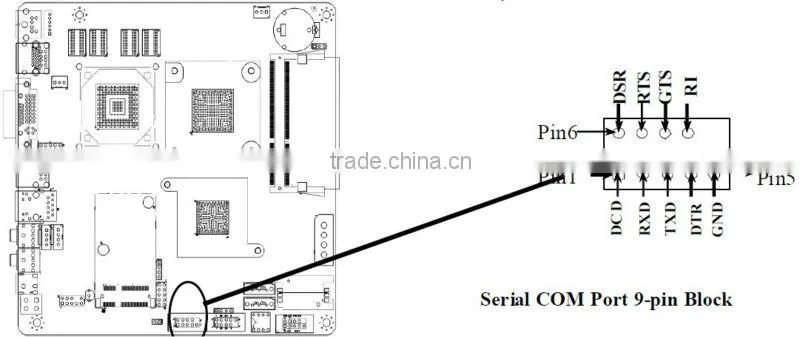

(3) Serial Port Connectors (9-Pin female): COM1

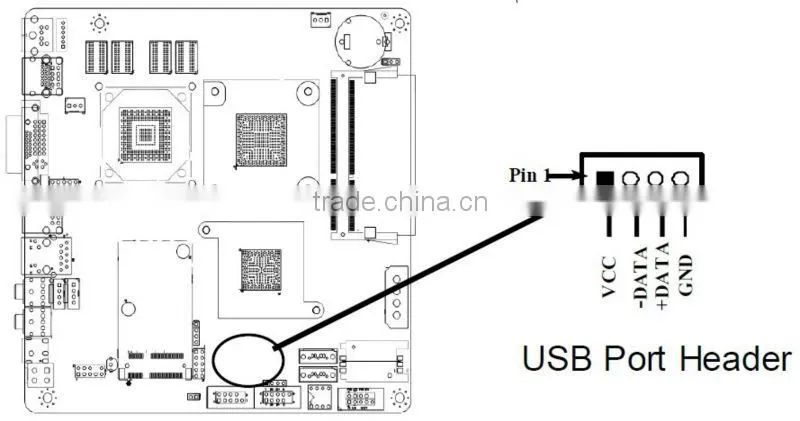

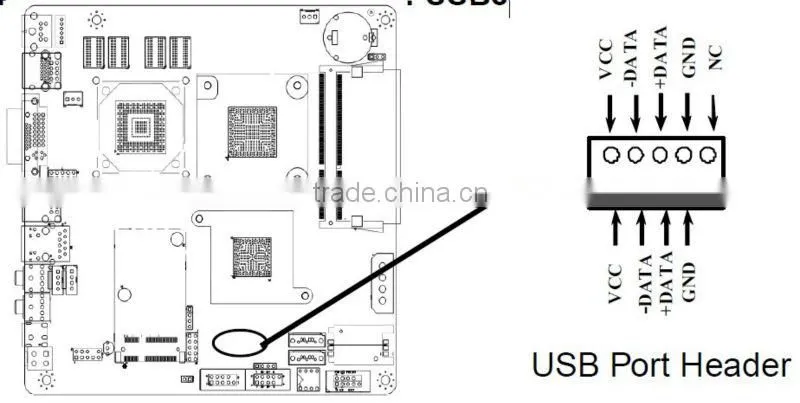

(4) USB Port Headers (9-pin): USB3
(5) USB Port Headers (4-pin): USB2

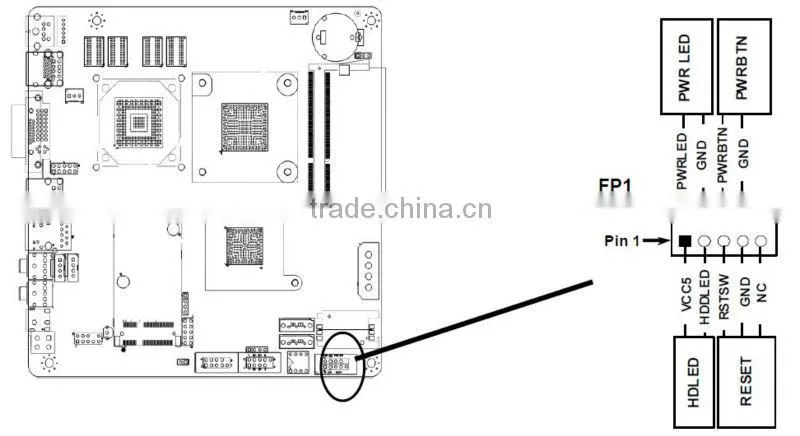

(6) Front Panel Header: FP1

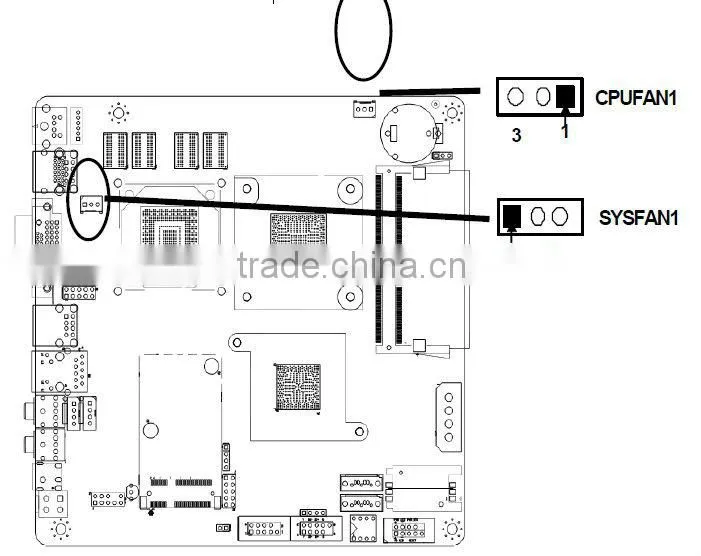

(7)FAN Speed Headers (3-pin): CPUFAN1, SYSFAN1
Pin1: GND
Pin2: +12V fan power
Pin3: Fan Speed

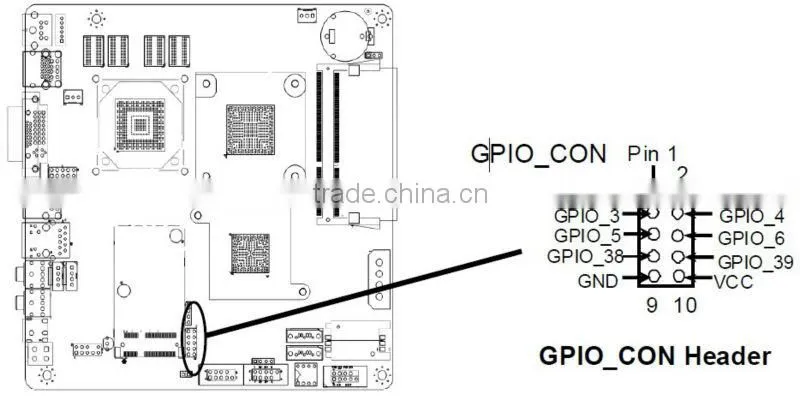

(8) GPIO Header (10-pin): GPIO_CON
