Specification

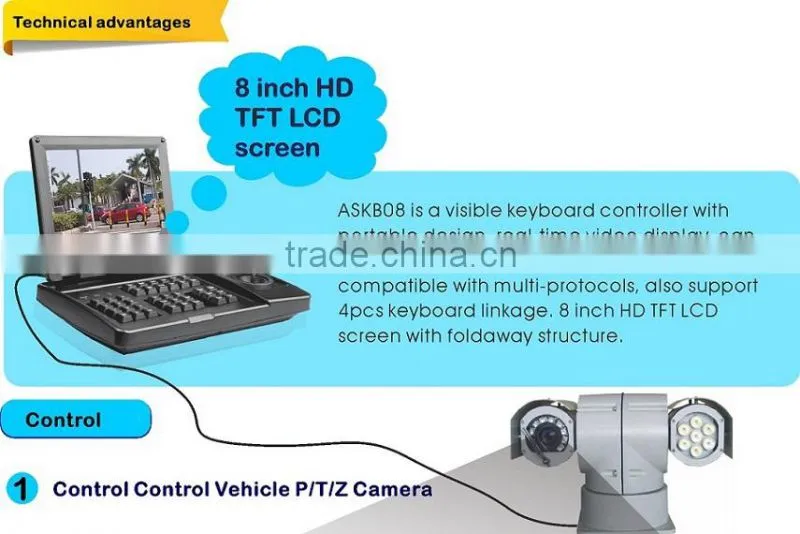

1.Protable Foldable HD visual Keyboard ,Show the camera pictur in the real time

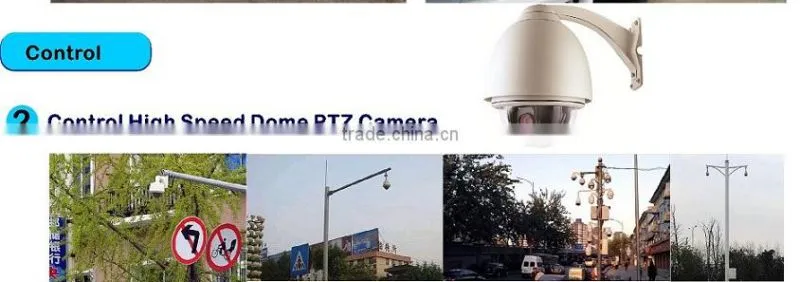

2. Control the high speed dome
3.DVR,Matrix,By 3-Axis Joystick, which is compatible with Multi protocols,
4. Support the 4 pcs keyboard together in sthe same time,

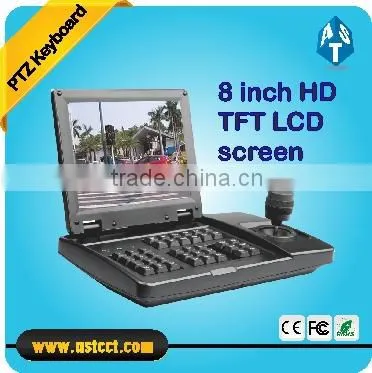

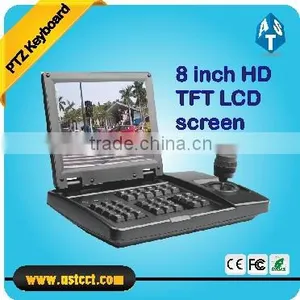

5. 8 Inch High definition TFT -LCD Screen Can show the image that returns from the front-end in real time
6. Image is adjustable automatically, No Manual setting
7. OSD edible menu in Chinese and English can set the kinds of Protocols
8. Tt is easy to operate. Support ABS,VGA signal input 800*600 resolution.
9. control high speed dome from different factories and mainstream DVR and Pelco matrix
10.. Independet interface Panel and expansively, which can meet the requirement of markets
11.Extra-Low consumption, 1W for standby mode,

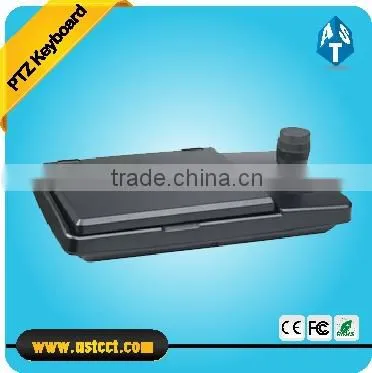

12. foldable structure design can show the best view screen
| Model No. | ASKB08 |
| LCD screen | 8" TFT-LCD |
| View angle | 0°~135° |
| Video input | Complex video(NTSC/PAL),VGA |

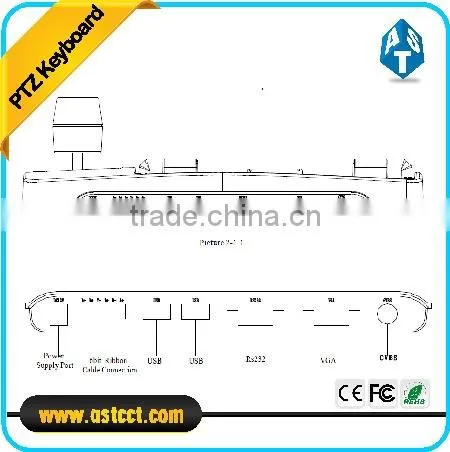

| communication | RS232,RS485,RS422,USB2.0 |
| Distance | Max. transmitting distance 1200m |
| Baud rate | 2400bps,4800bps,9600bps,19200bps |
| Protocol | PELCO P/D, VISCA,DAHUA,HAIKAN |
| Power supply | DC( 9V~12V)±10% |
| Electric current | 350mA |
| Battery | Ni-MH 700mAh |
| Power consumption | 4.2W |
| Standby consumption | 1W |
| Environment temperature | -20℃ ~ +50℃ |
| Humidity | 0~95%(Non-condensation) |

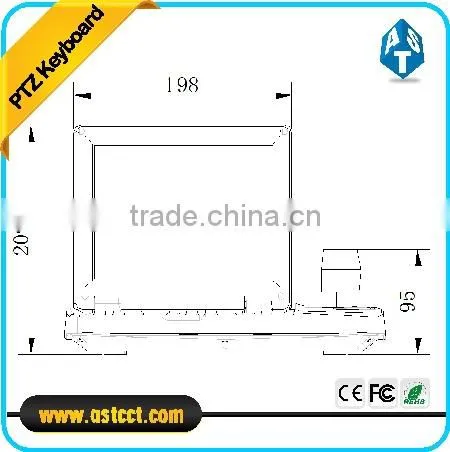

| Dimension | 290(L)*181(W)*95(H)mm |
| Net weight | 1.6Kg |
