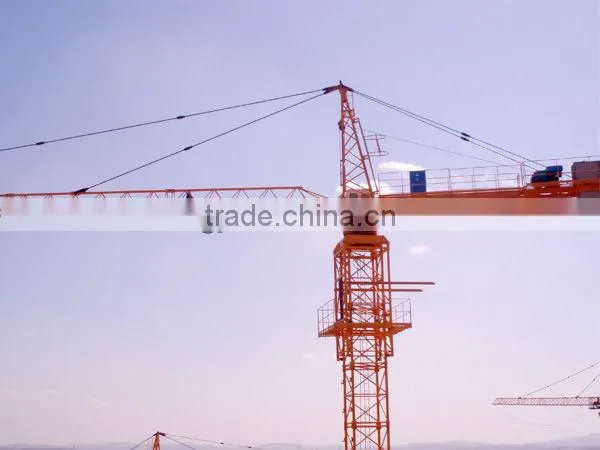

Help CenterBuilding Tower Crane (top Kit Tower Crane)
Related Products
-
QTZ200 70m 12t Tower Crane ISO9001&CE ApprovedNegotiableMOQ: 1 Set -
QTZ31.5 Self Raise Building Tower CraneNegotiableMOQ: 1 Set
-
Self Fast-erecting Tower Crane QTK20NegotiableMOQ: 1 Set
-
12 Tons H3/36B Tower Crane (QTZ250) With 60m JibNegotiableMOQ: 1 Set
-
Hammer-head Tower Crane XCMG BrandNegotiableMOQ: 1 Set
Specifications
building tower craneCCC/CE certification
using steel materials:16M and Q235B
Electric device impoted Schneider,Omr
inside climbing Tower Crane
Main Technical Parameters of QTZ Inside Climbing Tower Crane
|
Model
Parameters |
QTZ 315 (7035) |
QTZ 300 (7031) |
QTZ 200 (7020) |
QTZ 160 (6516) |
QTZ 125A (6516) (5518) |
QTZ 100A (5515) |
QTZ 80A (6010) (5512) |
QTZ 63B (5610) (5013) |
QTZ 63C (5211)
|
QTZ 40 (4708) (4510) |
QTZ 40A (4708) |
QTZ 31.5 (3883) (4075) (4264) |
|
Max .Radius |
70 |
70 |
70 |
65 |
60 |
55 |
60 |
56 |
52 |
47 |
47 |
42 |
|
Independent Height |
53 |
50 |
50 |
50 |
46 |
46 |
46 |
41 |
40 |
32.5 |
29 |
30 |
|
Max. Lifting Capacity |
16 |
12 |
12 |
10 |
8 |
8 |
8 |
6 |
6 |
4 |
4 |
3 |
|
Max. Height |
301 |
221 |
200 |
200 |
201 |
21 |
201 |
161 |
140 |
135 |
120 |
100 |
|
|
Wall-attached Frame |
11 |
8 |
7 |
6 |
6 |
6 |
8 |
6 |
6 |
5 |
6 |
5 |
|
Main Material |
1402x16 Angle steel welding |
1352x12 Square steel tube |
1352x12 Square steel tube |
160x14 Reinforcing mast section Angle steel |
160x12 Angle steel |
140x12 Angle steel |
125x10 Angle steel |
||||||

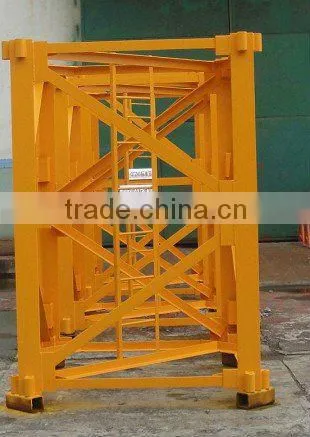

Standard Mast Section Dimension |
2.083x2.083 x3 |
2.083x2.083 x3 |
2.083x2.083 x3 |
1.935x1.935 x2.8 |
1.835x1.835 x2.5 |
1.835x1.835 x2.5 |
1.835x1.835 x2.5 |
1.835x1.835 x2.5 |
1.615x1.615 X2.5 |
1.5x1.5 X2.5 |
1.5x1.5 X2.2 |
1.5x1.5 X2.4 |
|
Hoisting Speed |
0-120 |
0-102 |
0-102 |
100/50/10 |
100/50/8.5 |
100/50/8.5 |
80/40/10 |
80/40/10 |
80/40/10 |
70/35/9 |
70/35/9 |
57.5/26.6/5.2 |
|
Mini. Stabilizing Falling Speed m/min |
2 |
2 |
2 |
5 |
4.25 |
4.25 |
5 |
5 |
5 |
4.5 |
4.5 |
5.2 |
|
|
Slewing Speed r/min |
0-0.7 |
0-0.7 |
0-0.7 |
0-0.60 |
0-0.65 |
0-0.65 |
0-0.6 |
0-0.62 |
0-0.62 |
0-0.7 |
0-0.75 |
0-0.6 |
|
Traveling Speed |
0-80 |
0-80 |
0-80 |
0-60 |
0-60 |
0-60 |
0-60 |
40/20 |
40/50 |
42/21 |
42/21 |
42/21 |
|
Climbing Speed |
0.46 |
0.46 |
0.46 |
0.4 |
0.5 |
0.5 |
0.69 |
0.6 |
0.6 |
0.5 |
0.5 |
0.7 |
|
Motor Total Power |
117.5 |
117.5 |
117.5 |
86.5 |
67 |
67 |
56.4 |
55.2 |
32.8 |
21.4 |
21.4 |
20.7 |
|
Complete Machine Total Weight |
Independent Structure Weight |
89300 |
80900 |
72300 |
61150 |
54094 |
53694 |
44900 |
36800 |
33279 |
24539 |
21021 |
18961 |
Counter Weight |
27.75 |
27.75 |
27.75 |
18.65 |
19.08 |
17.64 |
15.8 |
14.85 |
11.475 |
8.11 |
8.10 |
5.2 |
|
Designing tower crane is available:
To provide you detailed quotation, we need to confirm the following details.
1.The height of the tower crane you needed.
2.The tip load and max loading you needed.
3.The span of the tower crane
4.The voltage frequency in your country
Detailed information will be sent to you the moment we get your confirmation
