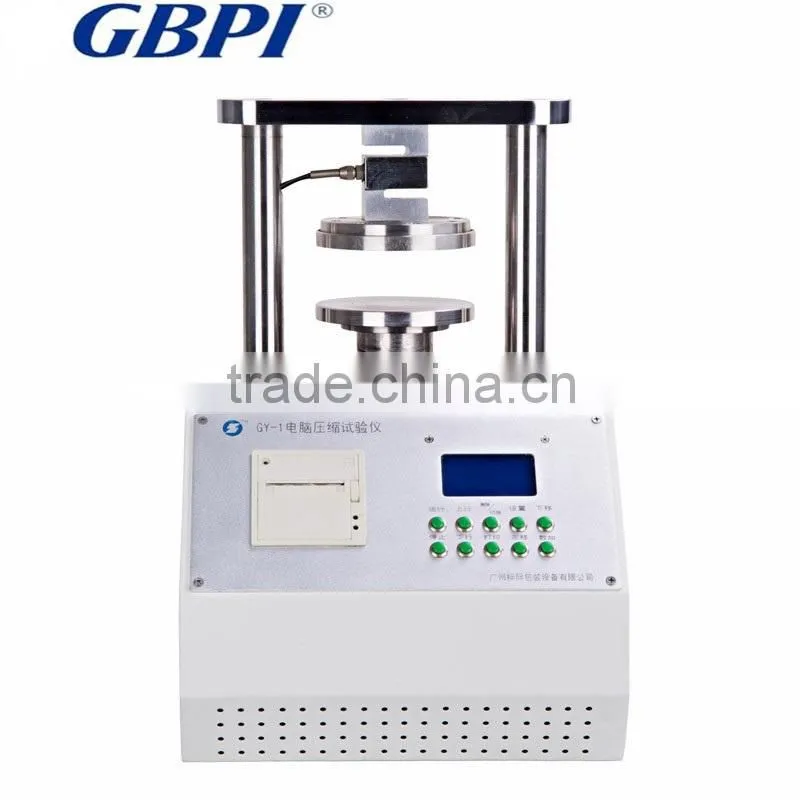

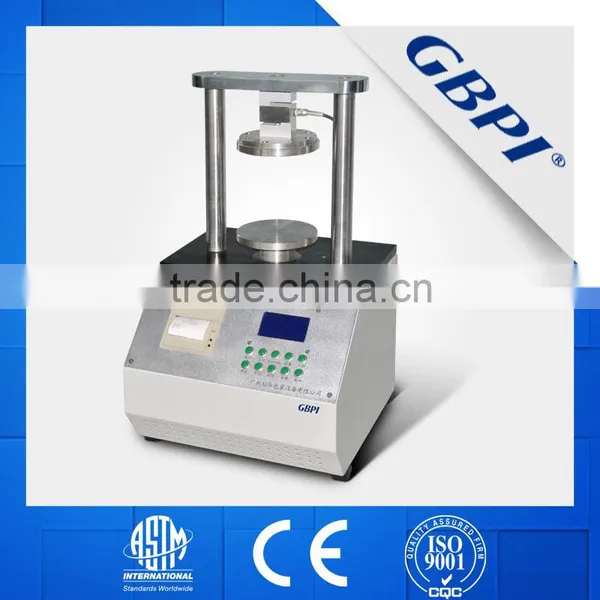

GY-1 Corrugated Paper Compression Tester
Standards
TAPPI T472, JIS P8126
Functions
To test the compression (crush) resistance in vertical direction of corrugated paper, kraft paper and paper board. Can also test the bonding strength and horizontal pressure resistance.
Corrugated Paper Compression Tester
Standards
TAPPI T472, JIS P8126
Functions
To test the compression (crush) resistance in vertical direction of corrugated paper, kraft paper and paper board. Can also test the bonding strength and horizontal pressure resistance.
Applications
*Corrugated paper, kraft paper and paper board
Techinical Parameter
Test range |
50 ~ 600N |
Resolution |
1N |
Test accuracy |
±1% of displayed value |
Function options |
horizontal pressure, vertical pressure, bonding strength, ring crush |
Compression board size |
100x100mm (can customize) |
Travel distance |
70mm |
Test Speed |
default 12.5±3mm/min, manual adjust 5~100mm/min |
Weight |
30kg |
Power supply |
220V 50Hz |
Instrument size |
330x340x500mm |
Service
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
