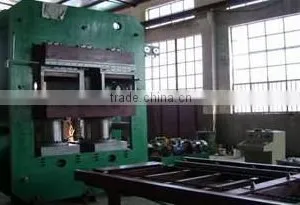

Help CenterAutomatic Curing Press / Multilayer Plate Type Rubber Mat Vulcanizer / Rubber Sheet Vulcanizing Press
Related Products
-
Automatic Rotary Curing Press / Rotary Rubber Curing Press / Drum Type Rubber VulcanizerNegotiableMOQ: 1 Set -
Plate Vulcanizing MachineNegotiableMOQ: 1 Set
-
Conveyor Belt Curing PressNegotiableMOQ: 1 Set
-
Inner Tube VulcanizerNegotiableMOQ: 1 Set
-
Inner Tube Vulcanizing Press / Tire Inner Tube Vulcanizer MachineNegotiableMOQ: 1 Set
Specifications
1.rubber vulcanizier press is used to make rubber sheet, rubber mat and tile.2.total pressure:25T-8000Tons
3.warranty:1 year
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor
intensity and low energy consumption.

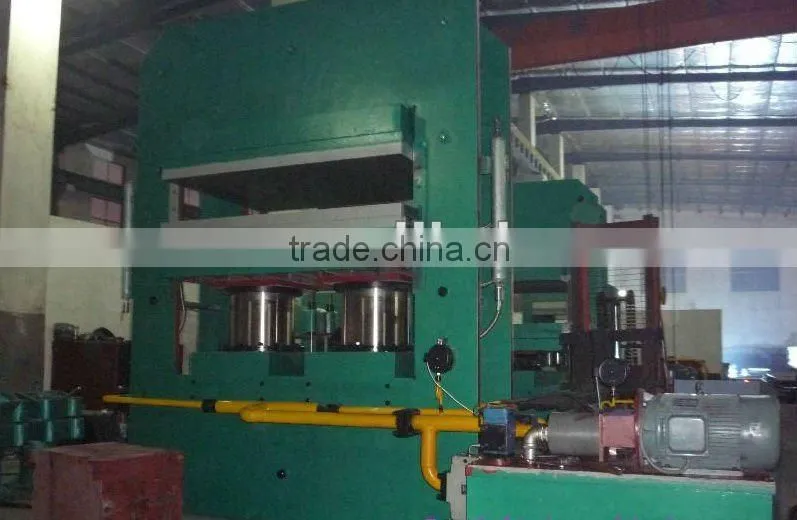

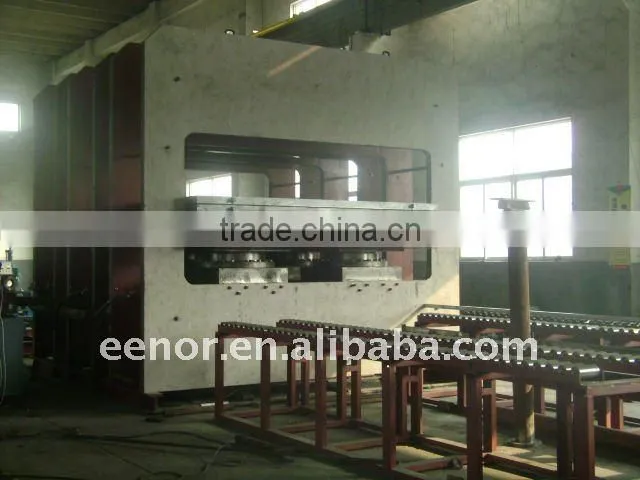

Automatic curing press / Multilayer plate Type Rubber Mat Vulcanizer / rubber sheet vulcanizing press
Plate type rubber mat vulcanizer:
1-passed ISO9001:2008/CE.
2-make rubber mat from tyre powder.
3-has 20 year experience.
Multilayer Plate Type Rubber Mat Vulcanizer
Technical parameter:
Type |
XLB-DQ400*400*2 |
XLB-DQ600*600*2 |
XLB-DQ750*850*2 |
XLB-DQ1000*1000*2 |
XLB-DQ1500*1500*2 |
XLB-DQ300*300*2 |
Total pressure |
0.50 MN |
1.00 MN |
1.60 MN |
4.00 MN |
8.00 MN |
0.25 MN |
Plate size |
400*400 mm |
600*600 mm |
750*850 mm |
1000*1000 mm |
1500*1500 mm |
300*300 mm |
Plate clearance |
125 mm |
125 mm |
125 mm |
125 mm |
125 mm |
125 mm |
Working layer nuber |
2 |
2 |
2(4) |
2(4) |
2(4) |
2 |
Piston stroke |
250 mm |
250 mm |
250(500) |
250(500) |
250(500) |
250 mm |
Plate pressure |
3.1 Mpa |
2.8 Mpa |
2.5 Mpa |
4.0 Mpa |
3.6 Mpa |
2.1 Mpa |
Motor power |
2.2 kw |
3 kw |
3 kw |
5.5 kw |
5.5 kw |
2.2 kw |
weight |
1300 kg |
3500 kg |
6500 kg |
11000 kg |
22000 kg |
1050 kg |
1. This vulcanizing machine is used for all kinds of vulcanizing mould,rubber and plastic mould products,and non-mould products.
2. Being a column structure and dowward pressing trpe,the heating plate opens by the seif-weight of the heating plate,platfrom and plunger.The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
3. This engine base is combined together with the cylinder and base frame,which is made of ductile iron to increase the cylinder intensity and abrad ability,The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
4. By moving the operational handle of the control value to the two different positions,the heating plate can open and close.
5. It uses the electric pipe for heating,thus makes the workshop clean with easy and reliable operation.
6. We can design and manufacture all kinds of no-standard rubber machinery according to the requirement of the customers
