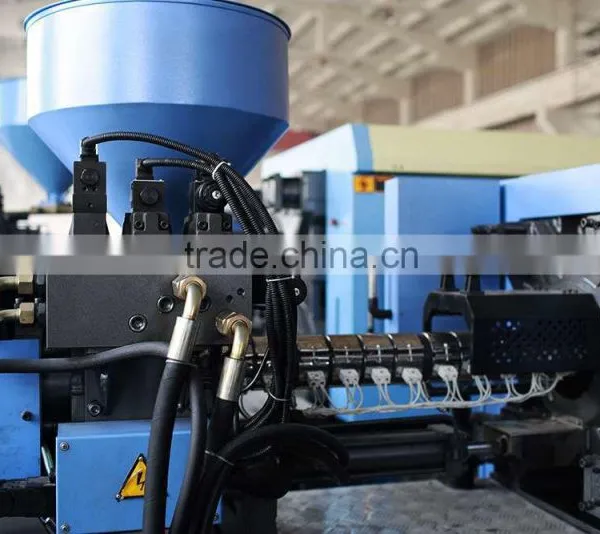

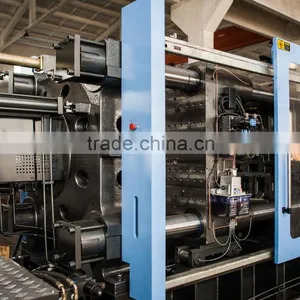

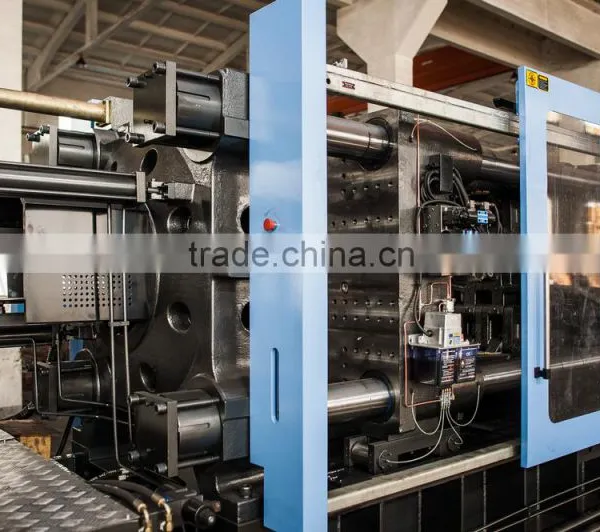

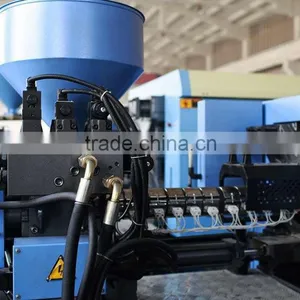

plastic pallet injection molding machines 1180ton
1.Precision,
2.Fast,
3.Energy saving,
4.Stable and super long life plastic machine
|
INJECTION UNIT |
|
Unit |
LSF-1180 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
110 |
120 |
130 |
|
Screw L/D Ratio |
L/D |
22 |
20.2 |
18.6 |
|
Short Size |
Cm3 |
4619 |
5500 |
6452 |
|
Injection weight |
G |
4203 |
5005 |
5871 |
|
Injection Rate |
g/s |
785 |
930 |
1010 |
|
Plasticizing capacity |
g/s |
150 |
173 |
192 |
|
Injection Pressure |
Mpa |
174 |
146 |
125 |
|
Screw Speed |
Rpm |
0-110 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
11800 |
||
Space Between Tie Bars |
mm |
1150X1100 |
|||
Toggle Stroke |
mm |
1200 |
|||
Max. Mold Height |
mm |
1200 |
|||
Min. Mold Height |
mm |
500 |
|||
Ejector Stroke |
mm |
320 |
|||
Ejector Tonnage |
KN |
215 |
|||
Ejector Number |
P |
21 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
45+45 |
|||
Heater Power |
Kw |
68 |
|||
Machine Dimension(L*W*H) |
M |
12X2.8X3.3 |
|||
Machine Weight |
T |
56 |
|||
|
Oil Tank volume |
L |
1950 |
||
ADVANTAGES:
(1) Energy saving
(2) High speed system response with short moulding cycles
(3) Significant working life of the hydraulic oil and hydraulic components, thereby reducing frequency of maintenance and maintenance costs
(4) The extra oil filtration requirements are met by special imported filter components
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
Packaging Detail: |
Plastic injection molding machine in wooden pallet |
Delivery Detail: |
15-45days after receiving TT deposit or L/C at sight |
Good Quality: Strict quality control system .Good reputation in the market.
Fast Delivery: High efficiency forwarder,quality ,quantity and timely shipment.
Good Service: Our company provide one-stop service
Founded in 2001,Changzhou Longsheng Machinery Co.Ltd
Is a professional manufacturer of plastic pallet injection molding machines ,
With all those advantages and leading technology implementation,LSF series injection molding machines are extremely suitable for the injection molding processing of many different types of plastic productssuch as precision electronics, telecommunication equipment, home appliances, toys, auto parts and so on.
