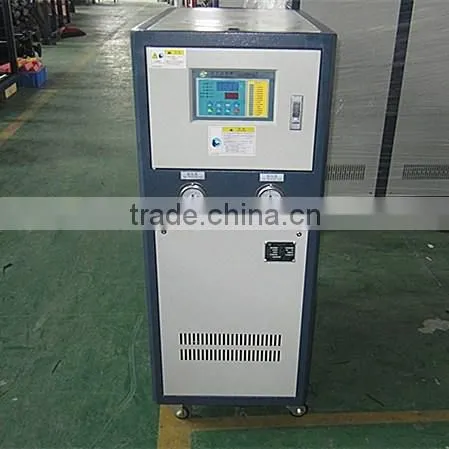

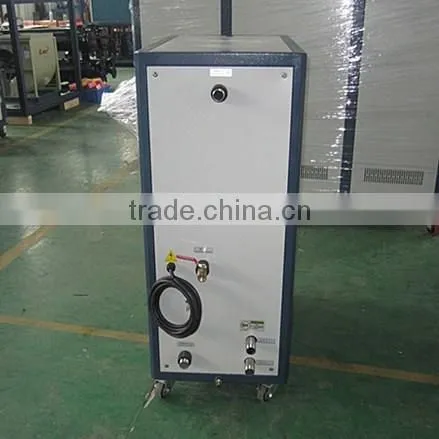

AC-05W water chiller for Industrial Quick Detail:
High/Low pressure protection for the compressor and overheating protection inside the machine
Low water level alarm and low water temperature alarm
Certification:CE & ROHS
Compressor type: Totally closed vortex type or piston type
Refrigerating capacity: 13690Kcal/h(50HZ)
Warranty:1 year
AC-05W water chiller for Industrial Description:
High/low pressure protection for the compressor and overheating protection inside the machine
Low water level alarm and low water temperature alarm
Imported compressor from Europe, US and Japan
Refrigerating system welded with oxygen free method, to reduce oxides and ensure the smooth surface
Throttle components from Danfoss (Denmark) and Alco (US)
SUS304 stainless steel water tank, to avoid corrosion or water leak
Stainless plate, coil, shell and tube or fin type efficient heat exchanger
RS485 communication function, to realize automatic management(optional)
Electrical devices supplied from OMRON, FUJI, TE, LG, MOELLER and SCHNEIDER
Control mode: imported micro-computer or PLC(optional)
Perfect safety protection, failure display, and not requiring professional personnel for maintenance
Highly efficient evaporator and condenser, to save over 30% energy
2 compressor heads for over AC-08, for individual or joint operation
AC-05W "water chiller" for Industrial Specifications:
ITEM |
UNIT |
AC-05W |
|
Cooling capacity |
KW50HZ |
15.91 |
|
|
Kcal/h 50HZ |
13690 |
|
Total input |
KW |
4.5 |
|
Maximum Running Current |
A |
10.4 |
|
Power supply |
|
3N-380V 50HZ |
|
Refrigerant |
Name |
R22 |
|
|
Charge |
Kg |
2.8 |
|
Control Type |
Capillary Tube |
|
Compressor |
Type |
|
Hermetic scroll or piston |
|
Power |
Kw |
3.75 |
Cooling water |
Flow |
M3/h |
3.42 |
|
In/Out Pipe Size |
G1” |
|
Chilled water |
Flow |
M3/h |
2.74 |
|
Tank |
M3 |
0.065 |
|
In/Out Pipe Size |
G1” |
|
water Pump |
Power |
Kw |
0.75 |
|
Pressure |
Kpa |
290 |
Size(L×W×H) |
mm |
1080×580×1230 |
|
Weight |
Kg |
150 |
|
AODE Factory service hotline: +86-13682516936
Our Customers Service hotline: +86-13682516936
AODE Certification Service Online: +86-13682516936
AODE Spirit Service Online: +86-13682516936
AODE Components Service Online: +86-13682516936
Applications ervice Online: +86-13682516936
Successful Projects Service Online: +86-13682516936
AODE Service Service Online: +86-13682516936
Aode machinery provides customers with professional and high-speed before sale, sale, after-sales service,service details are as follows;
1, Provides customers with a full range of technical support and technical training anytime, anywhere.
2, The whole equipment free one-year warranty and lifetime maintenance.
3, Provides customers with the thoughtful usage of maintenance tips and perfect after-sales service management system.
4, Received after-sales requirement, technicians will arrive the user factory within 24 hours and handle the equipment failure immediately.
Terms and Conditions:
1.Trade terms: EXW, FOB, CIF and so on
2.Delivery Time: Within 20-25 days after received deposit
3.Payment Terms:40% T/T in advance, 60% balance before delivery
4.Shipping port: Shenzhen, Tianjin or Shanghai
5. Package: Wooden case
