PCI-E Express Adapter 4 Port USB 3.0 HUB Expansion Card for Desktop Computer
| Product Model | |
| Model Number | P-LT109 |
| Warranty Information | |
| Warranty | 18 months |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (Low Profile bracket optional) |
| Chipset ID | Renesas uPD720201 |
| Industry Standards | USB 3.0 Specification Rev. 1.0 |
| PCI Express Base Specification Rev. 2.0 | |
| Intel xHCI Specification Rev. 1.0 | |
| UASP (USB Attached SCSI Protocol) Rev. 1.0 | |
| Interface | USB 3.0 |
| Port Style | Integrated on Card |
| Ports | 4 |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 4 - USB 3.0 A (9 pin; 5Gbps) Female |
| Internal Ports | 1 - Large 4 pin molex Power Male |
| Software | |
| OS Compatibility | Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), Linux |
| Special Notes / Requirements | |
| Note |
The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. |
| System and Cable Requirements |
PCI Express enabled computer or server with an available PCI Express x1 slot or higher ( x4, x8, x16) |
| Large 4 pin molex power connector | |
| Package content | |

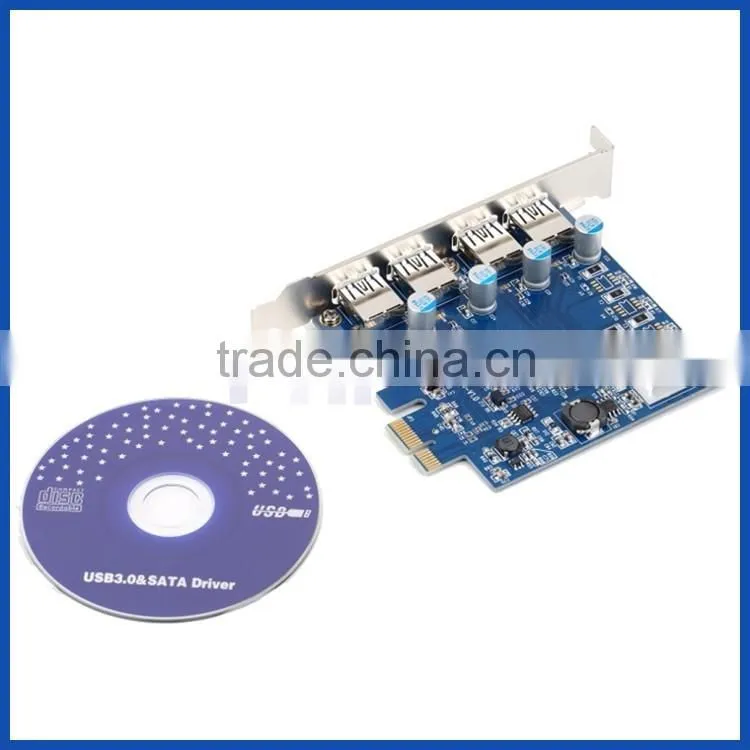

| Included in Package | 1 - 4 Port PCI Express USB 3.0 Card |
| 1 - Driver CD | |
