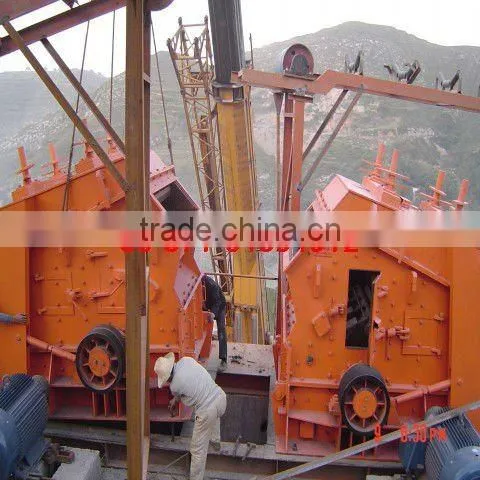

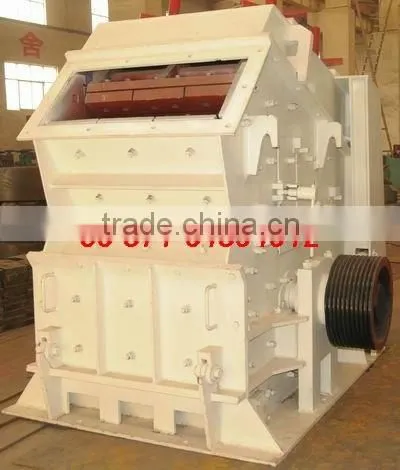

Mineral ore crusher
Mineral ore crusher introduction:
Mineral ore crusher is used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris.
Mineral ore crusher working principle:
When the mineral ore crusher works, the motor drives the rotor rotate of the mineral ore crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the crusher.
Mineral ore crusher characteristics:
Excellent cubic final products
Special structure
Non-key connection
High chrome hammer
Durability in long time simplicity in operation
Mineral ore crusher technical parameter:
Models |
Rotor size (mm) |
Feed opening (mm) |
Max. feed size (mm) |
Capacity (t/h) |
Power (kW) |
Weight (t) |
PF1007 |
Φ1000×700 |
400×730 |
300 |
15-30 |
37 |
5.54 |
PF1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
55 |
15 |
PF1210 |
Φ1250×1050 |
400×1080 |
350 |
70-130 |
95 |
15.25 |
PF1214 |
Φ1250×1400 |
400×1430 |
350 |
90-180 |
132 |
19 |
PF1315 |
Φ1320×1500 |
860×1520 |
500 |
120-250 |
200 |
24 |
PF1320 |
Φ1320×2000 |
860×2030 |
500 |
160-350 |
260 |
27 |
Note: This series breaker fits in the hard stone crushing, and the 90% of the output materials size ≤ 40mm
