Specifications
1.silent diesel generator 30kw2.global service for 12 month
3.ISO,CE certificate
4.low noise with good quality
1. silent diesel generator 30kw general feature:
1) Output range: 30kW (37.5kVA)
2) Engine model: Cummins
3) Alternator: Stamford, Marathon series Stamford copy
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) silent generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
CE approved 50hz 3 phase silent diesel generator 30kw
2.Cummins Engine parameter:
Engine Model |
4BT3.9-G2 |
Configuration |
4 cycle , 4 cylinders in line |
Aspiration |
Turbocharged |
Bore×Stroke |
102 x120 mm |
Rated speed |
1500rpm |
Displacement |
3.9 L |
Compression Ratio |
16.5:1 |
Prime Power |
36KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
214g/kw.h |
Starter Motor |
DC24V, |
Marathon Alternator technical data:
Alternator model |
GM-30-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
30 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Certificate & Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
5.picture of control system and factory:
picture for reference

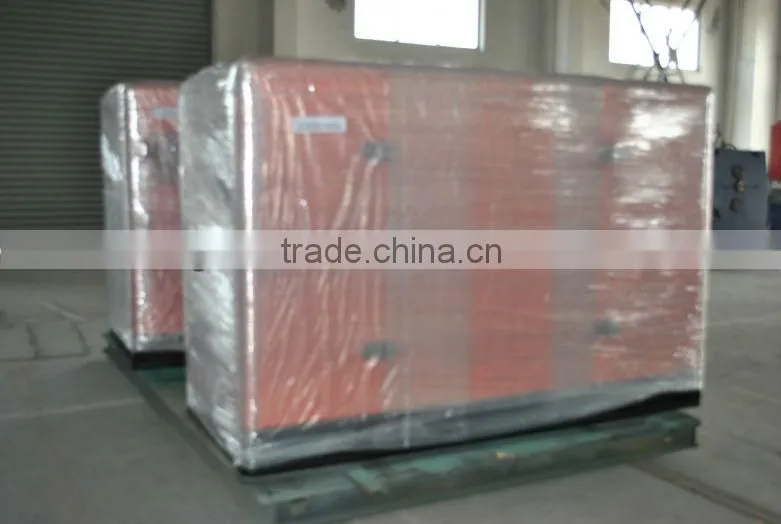

Package
