Specifications
le trailer genset2.global service for 12 month
3.ISO,CE certificate
4.three wheels or four wheels

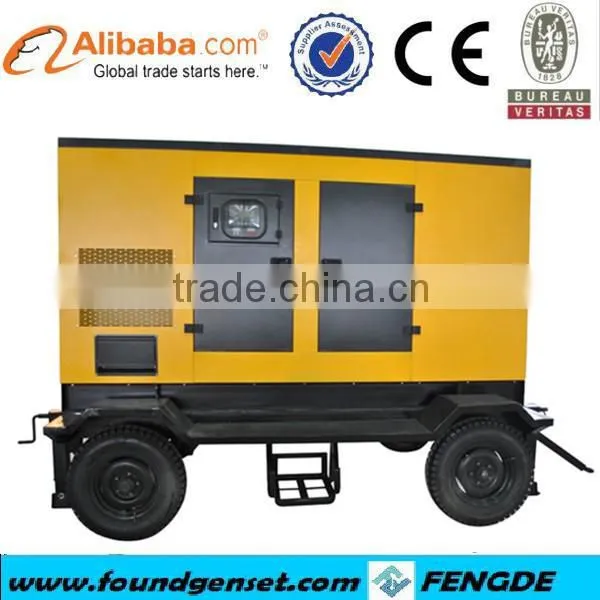

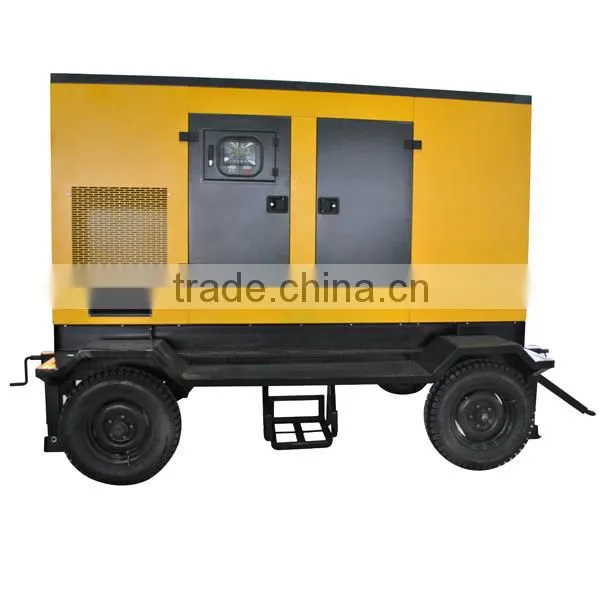

CE,ISO approved factory 125kva diesel mobile genset with three or four wheels
1. specifications:
Besides all performances of Silent Type Gen Sets, JG Silent Type Gen Sets with Trailer has
Advantages as follows:
Equipped armor plate spring of structure poised;
The trailer adopt the adjustable- height bolted towed rack, which is suitable for different height trailer;
Have mechanical underprops at each corner of the trailer. Inertial traveling brake, station brake & disengage emergency brake between trailer and tractor
With turning lamp, brake indicator light and standard BNC connector plugs for back lamp
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2. Diesel Generator Technical Data:
Genset Technical Data | |
Prime power |
100 kW |
Standby power |
110 kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Engine model |
6BTA5.9-G2 |
Alternator model |
MP-100-4 |
Cummins Diesel Engine Technical Data
Engine Model |
6BTA5.9-G2 |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbocharged after water-cooled |
Bore×Stroke |
102 x120 mm |
Rated speed |
1500rpm |
Displacement |
5.9 L |
Compression Ratio |
17.5:1 |
Prime Power |
100KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
211g/kw.h |
Starter Motor |
DC24V, |
Marathon Alternator Technical Data
Alternator model |
SV274 |
Alternator manufacturer |
Sunvim |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
100 kW |
Rated speed |
1500 rpm |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
Cummins seris generator specifications
4.Warranty
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
5.Certificate & Document
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
6.picture of control system and factory:
