Specifications
1.68kw generator2.ISO,CE certificate
3.factory direct sale
4.Volvo technology

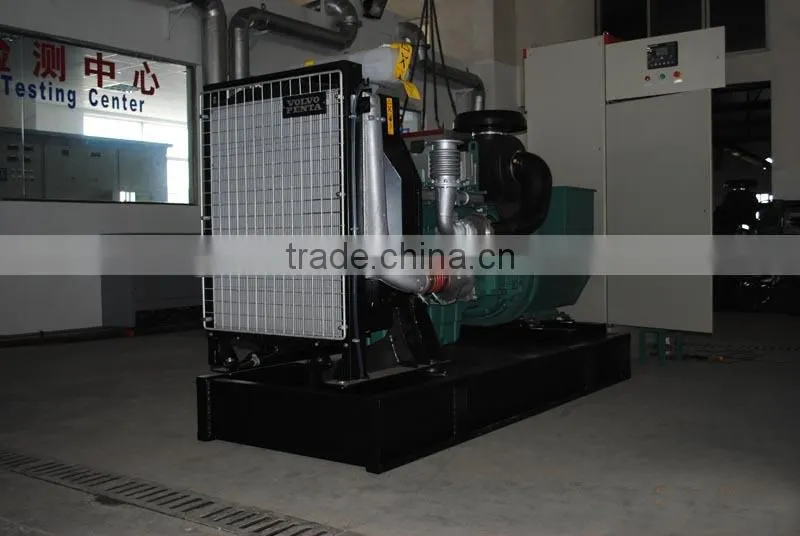

1. 68kw generator general feature
1) Coupled with Volvo diesel engine and Stamford Or Marathon alternator
2) 24V DC start motor and storage battery
3) Brushless, Self-excited, IP23, insulation class H alternator
4) 40°C radiator as standard, 50°C is optional
5) Key start panel control system as standard, digital auto-start panel is optional
6) Optional open type or silent type
All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail.
2.Volvo Diesel Engine Technical Data
Engine Model |
TD520GE |
Configuration |
4 cycle , 4 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
108x130 mm |
Rated speed |
1500rpm |
Displacement |
4.76 L |
Compression ratio |
17.5:1 |
Prime Power |
75KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
213g/kw.h |
Starter Motor |
12V |
3.Stamford Alternator Technical Data
Brand |
Stamford |
Alternator Model |
UCI224G |
Capacity |
68KW |
Voltage |
220/380V |
Frequency & Speed |
50HZ/1500RPM |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Voltage Adjust range |
≥5% |
Voltage Regulation NL-FL |
≤±0.5% |
Insulation Grade |
H |
Protection Grade |
IP23 |
4.Warranty
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
5.Certificate & Document
1)Alternator
operation and maintenance manual 1PC
2) Engine
operation and maintenance manual 1PC
3)Generator
4)Overall drawings of the set 1PC
5)Electrinic system drawing 1PC
6)Bench test 1PC
7)Packing list 1PC
