Specifications
We have a 17 year plus record in this industry from which we have built up significant data, soundly based on experience and1.Conical(paeallel) twin screw& barrel
Production scope:
Conical twin screw and double holes cylinder Φ35/70~Φ92/178Parallel twin screw and double holes cylinderΦ35/35~Φ250/250
CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares.
2.Screw & barrel for single screw extruder Production scope: Screw diameter Φ20~Φ500 Maximum screw length 10,000mm Barrel inner bore diameter Φ500mm

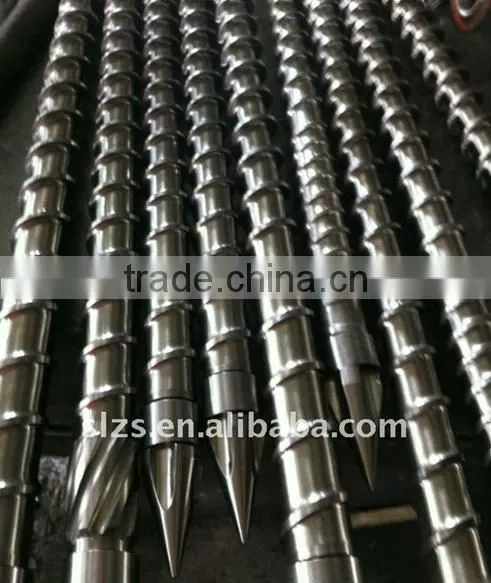

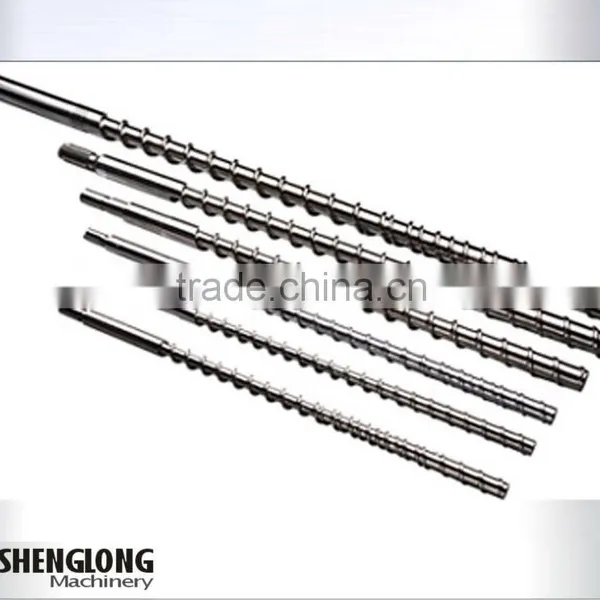

Screw & barrel for injection molding machine
Production scope: Screw diameter Φ20~Φ500 Maximum screw length 10,000mm Barrel inner bore diameter Φ500mm

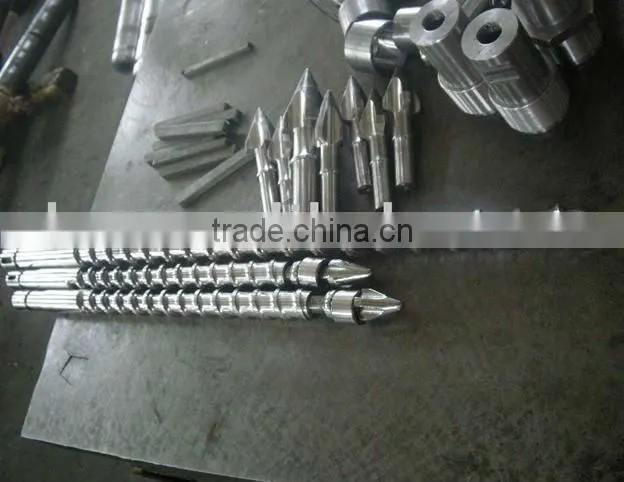

Assembly parts of screw & barrel
Technical data:
Depth of Nitrated Layer: 0.5-0.8mm Hardness of nitration: 900-1020Hv Fragility of nitration: Less than grade 1 Surface roughness: Ra 0.4um Hardness of Cr-coating Layer: ≥950Hv Thickness of Cr-coated Layer: 0.03-0.08mm Hardness of Bimetallic Layer: HRC55-72 Depth of Bimetallic Layer: >2mm
2. Screw specifications; 20mm-300mm, L/D=15-55, length: ≤ 18000mm, injection capacity: 30g-25000g, clamping force: 25-3200 tons.
3. Treatment; Quenching, nitriding, blackening, electroplated hard-chrome (according to clients' requirement).
4. We can do all types of screws according to clients' requirements.
If you have a sketch, send it over via Fax or Email, and we'll advise if we can Make it or Repair it!
If you have any questions or want more details of our products, please contact with us.
