Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX

Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX thumbnail-1

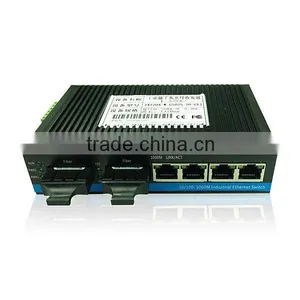

Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX thumbnail-2
Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX thumbnail-3
Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX thumbnail-4

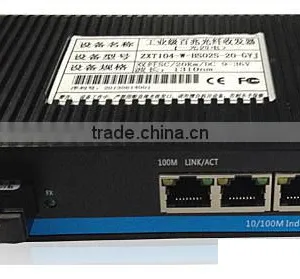

Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX thumbnail-5
Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX thumbnail-6
Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX photo-1
Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX photo-2

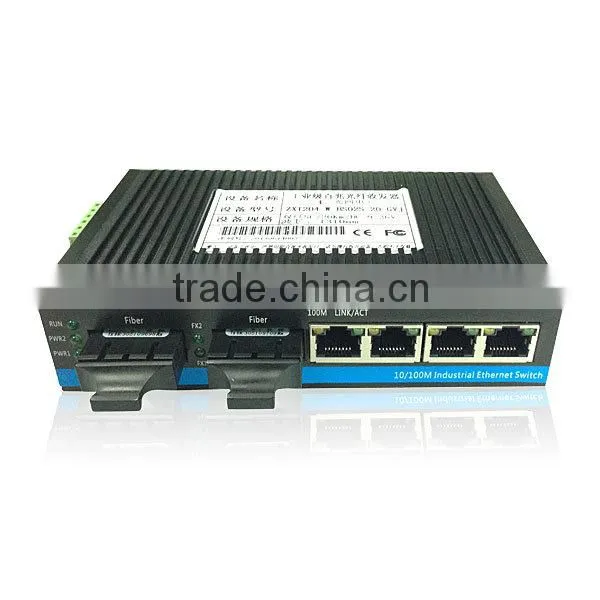

Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX photo-3

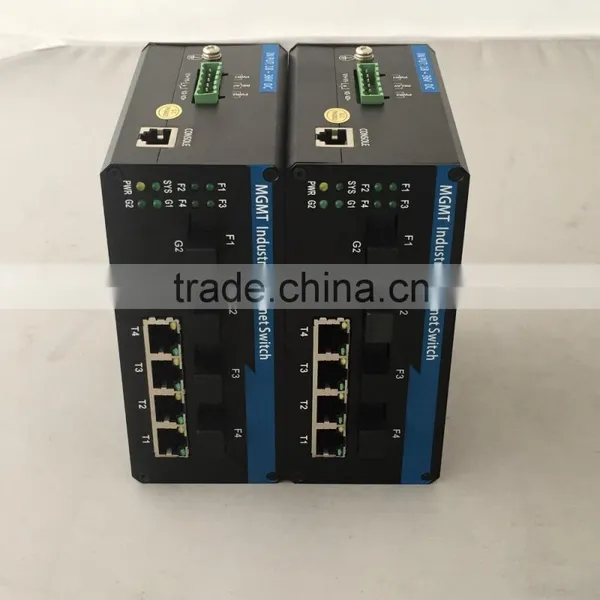

Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX photo-4

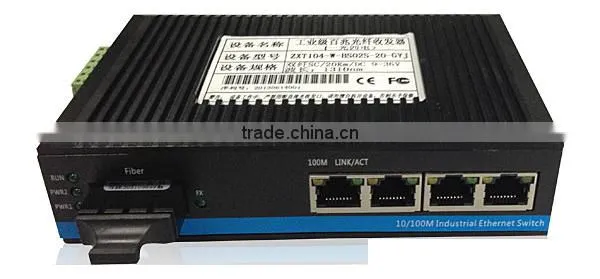

Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX photo-5

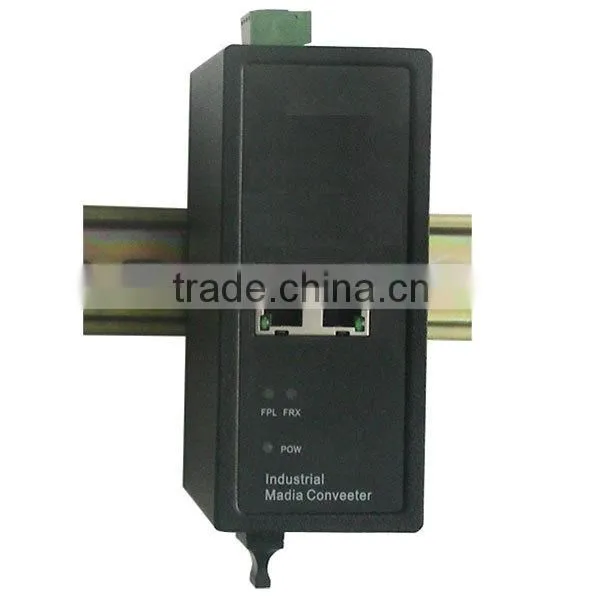

Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX photo-6
US$ 86.00 - 86.00 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
tincam
Model Number:
TBC-GF2606
Contact Supplier Request Quote Chat Now
Shenzhen Tianbo Communication Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name tincam
Model Number TBC-GF2606

Industrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX

Product Description



Specifiaction:

Type: 4*10/100 Base-TXand 2*100Base-FX

UTP port : RJ45 ports, support for auto-negotiation and auto matic identification fo MDI/MDI-X

Fiber port : Single-mode and Multimode are optional, ST/SC/FC/LC available

Transmission Distance:

Twisted-pair Transmission: 1~100M

FiberTransmission : Multimode<5KM ; Single-mode : 20/40/60/80KM optional

Power supply:

Working Pressure: DC 9V~36V, Dual power input

Working consumption:<5W

Working environment:

Working Temperature: -40~+80

Storage Temperature: -45~+85

Ambient Humidity: 0~95%

Structure:

Dimension: 145mm*36mm*96mm

Install : DIN-rail

Weight: 0.3kg

Protection Level: IP40

Electromagnetic compatibility:

EN61000-4-2 ESD: ± 6KV contact discharge, ± 8KV air discharge
EN61000-4-3 Electromagnetic Fields: 10V / m (80 ~ 1000MHz)
EN61000-4-4 Instantaneous pressure: ± 4KV power cord, ± 2KV data lines

EN61000-4-5 surge voltage: ± 4KV/CM, ± 2KV/DM power cord, ± 2KV data lines
EN61000-4-6 anti-conduction: 3V (10KHz ~ 150KHz), 10V (150KHz ~ 80KHz)
EN55022: EN55022 Class AIndustrial Fiber Media Converter 4*10/100M Base-TX and 2*100M Base-FX
