Tong Hai Power the pioneer industrial boilers of China market, and we have various boilers for worldwide customers.

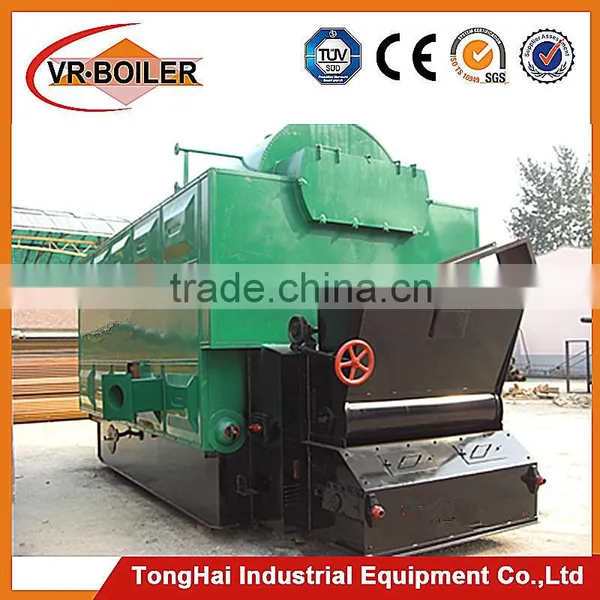

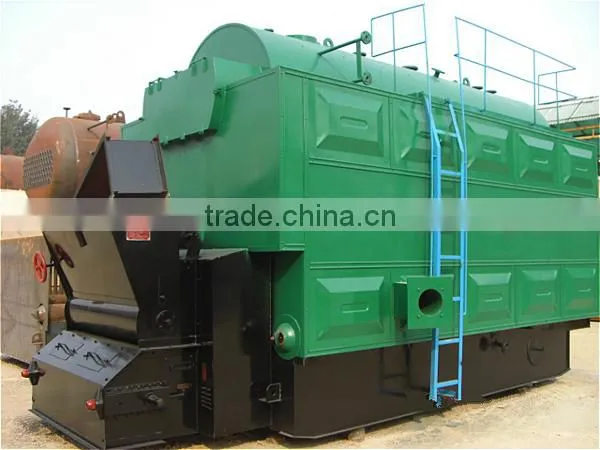

chain grate coal fired steam boiler
1.The boiler shall employ single return screwed pipe,arched tube plate,and aerofoil flue,which shall make quasi-steel resistance of the shell to change into quasi-steel,avoiding tube plate crack due to high temp.
2.The rational design of cycle scrap,shall prevent the bottom of the shell from being heated & swelling.Water circulation reliabilities shall be improved by installing supply water injectors,avoiding the ash deposition of water-wall tube.So the reliable combusion equipment shall ensure the normal operation of the boiler.
3.The optimization of boiler type shall decrease the size of boiler body,reducing the cost of boiler house 30%.
4.Because of excellent combustion efficiency,automatic coal supply,automatic slag-removal,the labor intensity of the stoker shall be reduced.
|
Item parameter Model |
DZG 0.5-0.7-AII |
DZL(W) 1-0.7-AII |
DZL(W) 2-0.7/1.25-AII |
DZL(W)4-1.25/1.6-AII |
DZL(W) 6-1.25-AII |
DZL(W)8-1.25-AII |
DZL(W) 10-1.25-AII |
DZL(W)20-1.25-AII |
|||
Rated evaporation capacity |
t/h |
0.5 |
1 |
2 |
4 |
6 |
8 |
10 |
20 |
||
Operation pressure |
Mpa |
0.7 |
0.7 |
0.7/1.25 |
1.25/1.6 |
1.25 |
1.25 |
1.25 |
1.25 |
||
Steam temperature |
℃ |
169.6 |
169.6 |
169.6/194 |
194/203 |
194 |
194 |
194 |
194 |
||
Water-inlet temperature |
℃ |
20 |
20 |
20 |
20/60 |
20 |
20 |
105 |
105 |
||
Boiler heating efficiency |
% |
71.76 |
74.41 |
77 |
81 |
81.5 |
82 |
82.75 |
82.75 |
||
Area of stoker |
m2 |
1.26/0.88 |
1.74 |
3.04 |
5.14 |
7.4 |
11.4 |
11.4 |
20.8 |
||
Primary steam valve drifted diameter |
mm |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN80 |
PN1.6/2.5DN100 |
PN1.6DN125 |
PN1.6DN150 |
PN1.6DN150 |
PN1.6DN200 |
||
Water inflow valve drifted diameter |
mm |
PN1.6DN40 |
PN1.6DN40 |
PN1.6DN40 |
PN1.6/2.5DN50 |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN50 |
PN1.6DN65 |
||
Fuel |
Coal available |
II type bitumite |
|||||||||
Consumption |
kg/h |
75 |
145 |
290 |
580 |
960 |
1220 |
1490 |
2700 |
||
Dimensions of biggest parts for shipment (L x W x H) |
m |
2.8*2*2.7 |
4.53*1.9*3.07 |
5.82*2.1*3.22 |
6.5*2.66*3.52 |
7.7*3*3.54 |
7.1*3.2*3.5 |
8.2*3.3*3.6 |
9.45*3.77*7.1 |
||

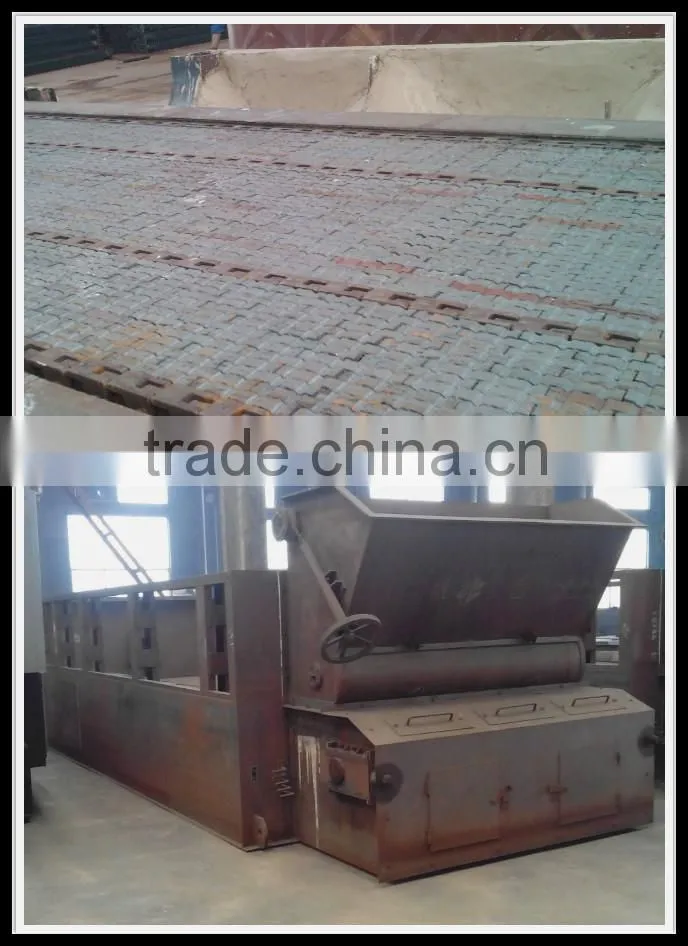

chain grate:

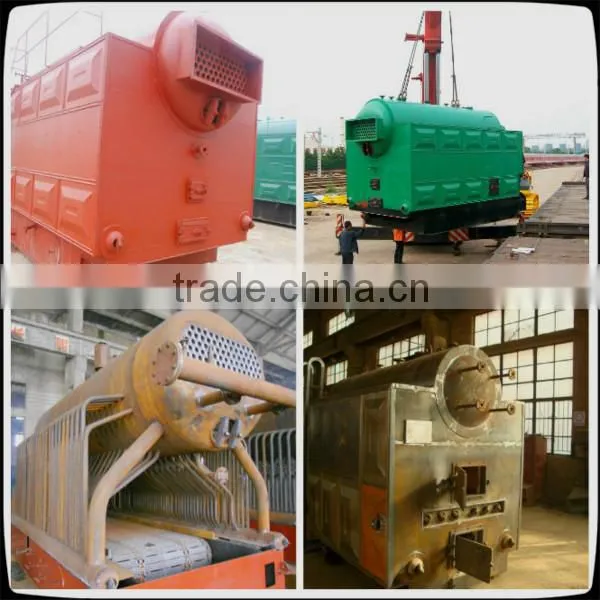

boiler body:

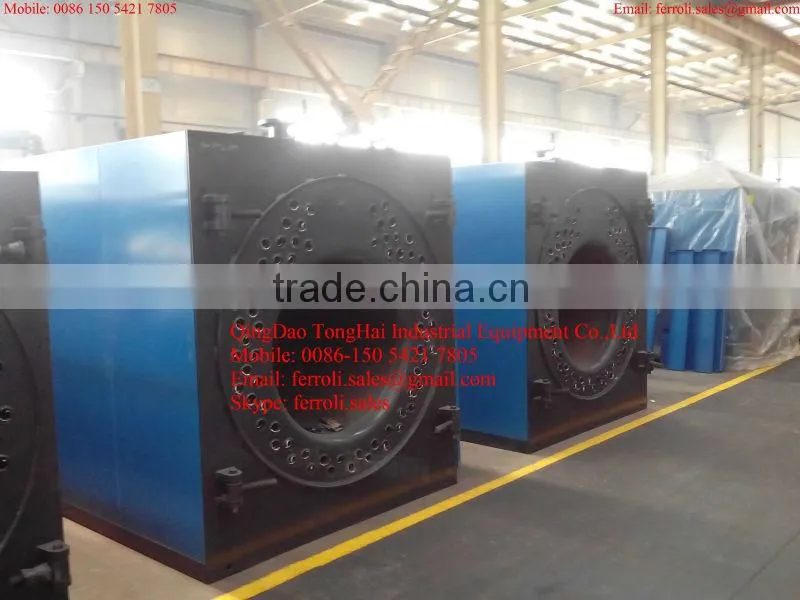

working shop:
boiler parts package:

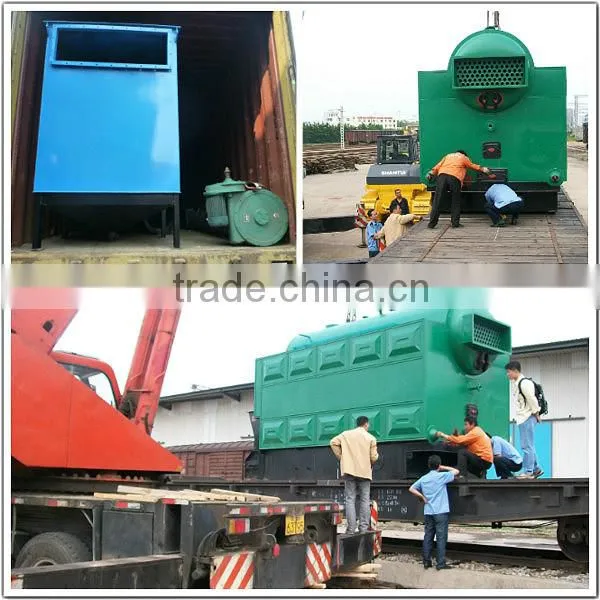

boiler shipping:
Horizontal automatic coal fired steam boiler main purpose is to provide high quality steam and motive power for industrial production, such as textile, papermaking, rubber, food, hospital and other industries.
Compared with the other domestic capacity products ,we have the advantages of reasonable and compact structure and low steel consumption.
Our services:
1,We can help design and manufacture boilers according to customers’ special requirements.
2,Engineers are available service overseas
3,Ferroli boiler body warranty 3 years
4,Engineers 24hours online
