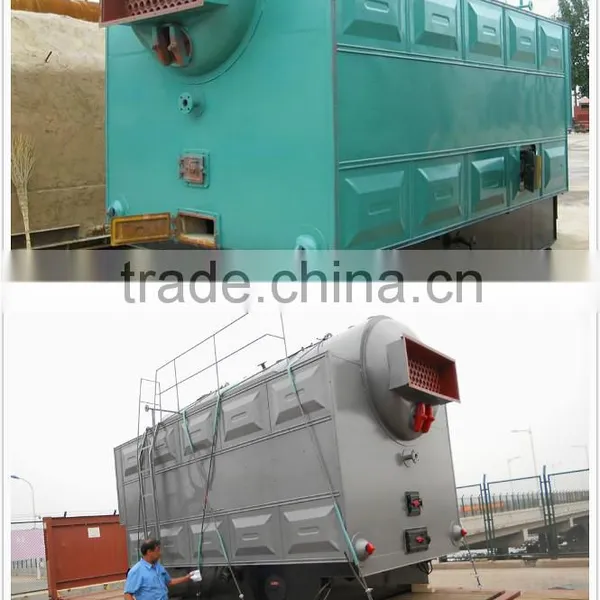

Help CenterTextile Pharmaceutical Industrial Horizontal 4 Ton Coal Steam Boiler
Related Products
-
DZL Series 1t/h-20t/h Industrial Coal Fired Steam Boiler for SaleUS$ 3000.00 - 3000.00MOQ: 1 Set -
High Quality Low Price Coal Fired BoilerUS$ 2,000 - 50,000MOQ: 1 Set
-
Top Best Supplier China Industrial DZL Coal Fired BoilerUS$ 2,000 - 50,000MOQ: 1 Set
-
High Quality Chain Grate Stoker Coal Fired BoilerUS$ 2,000 - 50,000MOQ: 1 Set
-
Used Best 1 Ton Steam BoilerUS$ 3000.00 - 3000.00MOQ: 1 Set
1. The structure DZL boiler horizontal fast-assembling fire tube boilers and natural circulation.
2. Advanced design: The main heating tube of the boiler uses 20# low and medium pressure boiler seamless pipe and the boiler drum uses the special steel.
3. The front arch of the boiler use refractory brick. The back arch is low and long, so it has good combustion. Both blank flue and side wall use refractory bricks. Front wall and back wall of the boiler use common refractory bricks.
4. Reasonable air distribution in the grate, large combustion chamber, widely types of coal. The DZL boiler could use bituminous, anthracite or mixed coal. Because of high temperature flue gas enters the settling chamber firstly, and then from both sides of the flue into the wings, front smoke box, so it has good dust abatement.
Product features:
1.single drum.
2.monolayer arrangement.
pact structure, sufficient output.
4. operational safety, short construction period, and low installation cost .
5,saving energy.
6,environmental protection.
DZL quickly installed steam boiler specification
|
Item parameter Model |
DZG 0.5-0.7-AII |
DZL(W) 1-0.7-AII |
DZL(W) 2-0.7/1.25-AII |
DZL(W)4-1.25/1.6-AII |
DZL(W) 6-1.25-AII |
DZL(W)8-1.25-AII |
DZL(W) 10-1.25-AII |
DZL(W)20-1.25-AII |
||
Rated evaporation capacity |
t/h |
0.5 |
1 |
2 |
4 |
6 |
8 |
10 |
20 |
|
Operation pressure |
Mpa |
0.7 |
0.7 |
0.7/1.25 |
1.25/1.6 |
1.25 |
1.25 |
1.25 |
1.25 |
|
Steam temperature |
℃ |
169.6 |
169.6 |
169.6/194 |
194/203 |
194 |
194 |
194 |
194 |
|
Water-inlet temperature |
℃ |
20 |
20 |
20 |
20/60 |
20 |
20 |
105 |
105 |
|
Boiler heating efficiency |
% |
71.76 |
74.41 |
77 |
81 |
81.5 |
82 |
82.75 |
82.75 |
|
Area of stoker |
m2 |
1.26/0.88 |
1.74 |
3.04 |
5.14 |
7.4 |
11.4 |
11.4 |
20.8 |
|
Primary steam valve drifted diameter |
mm |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN80 |
PN1.6/2.5DN100 |
PN1.6DN125 |
PN1.6DN150 |
PN1.6DN150 |
PN1.6DN200 |
|
Water inflow valve drifted diameter |
mm |
PN1.6DN40 |
PN1.6DN40 |
PN1.6DN40 |
PN1.6/2.5DN50 |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN50 |
PN1.6DN65 |
|
Fuel |
Coal available |
II type bitumite |
||||||||
Consumption |
kg/h |
75 |
145 |
290 |
580 |
960 |
1220 |
1490 |
2700 |
|

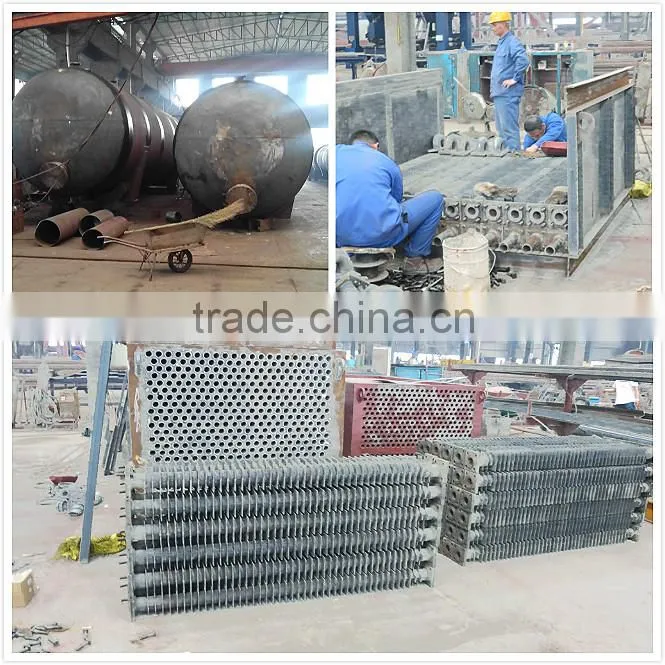

working shop:

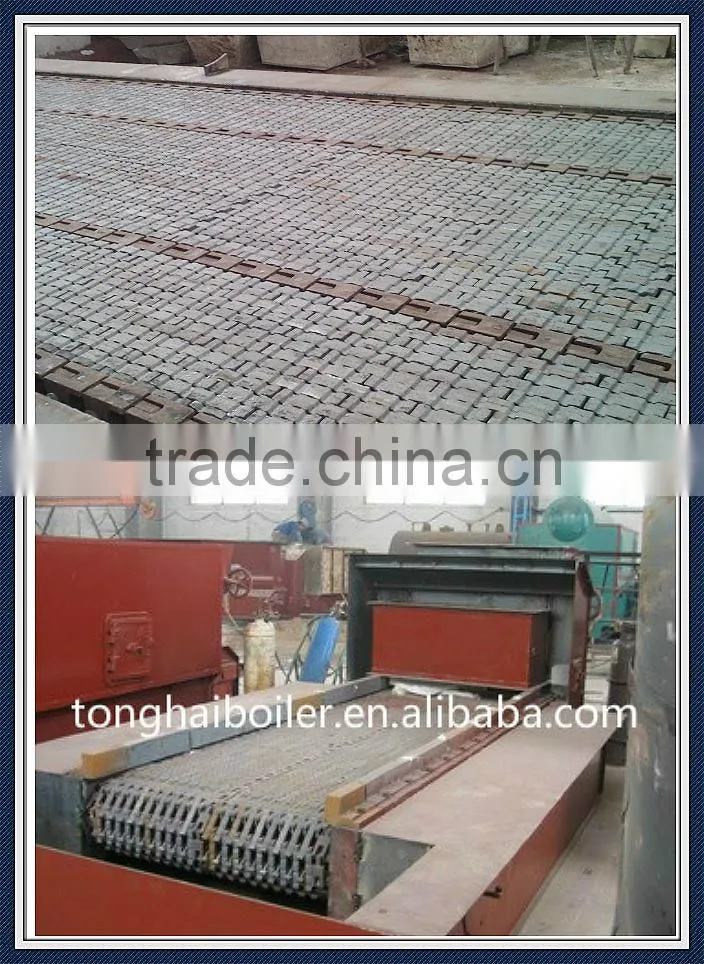

chain grate:
------We can help design and manufacture boilers according to customers’ special requirements.
------Engineers are available service overseas
------Ferroli boiler body warranty 3 years
------Engineers 24hours online
How to install a boiler?
Tonghai Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
How many years is the boiler’s life?
The boiler is designed for 20 years life.
How to choose a boiler model?
Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, Tonghai Boiler will suggest a suitable model based on your usage
How is the warranty term?
If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
