High Quality Chain Grate Stoker Coal Fired Boiler

High Quality Chain Grate Stoker Coal Fired Boiler thumbnail-1
High Quality Chain Grate Stoker Coal Fired Boiler thumbnail-2
High Quality Chain Grate Stoker Coal Fired Boiler thumbnail-3
High Quality Chain Grate Stoker Coal Fired Boiler thumbnail-4
High Quality Chain Grate Stoker Coal Fired Boiler thumbnail-5
High Quality Chain Grate Stoker Coal Fired Boiler thumbnail-6
High Quality Chain Grate Stoker Coal Fired Boiler photo-1
High Quality Chain Grate Stoker Coal Fired Boiler photo-2
High Quality Chain Grate Stoker Coal Fired Boiler photo-3
High Quality Chain Grate Stoker Coal Fired Boiler photo-4
High Quality Chain Grate Stoker Coal Fired Boiler photo-5
High Quality Chain Grate Stoker Coal Fired Boiler photo-6
US$ 2,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Qingdao Tonghai Industrial Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao TianJin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Water Tube
Pressure Low Pressure
Style Horizontal
Fuel Other, wood
Place of Origin Shandong, China
Brand Name TongHai
Model Number SZL
Output Steam
Dimension(L*W*H) 11.6m x 5.4m x 3.9m
Weight 56Ton
Certification ASME, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas

 High quality Chain grate stoker Coal fired Boiler



Welcome to QingDao TongHai Industrial Equipment Ltd. We were established in 2000 year, belong to Italy Heating Group wholly-owned boilers manufacturer. As the Europe manufactory, we intoduce boiler schemes, production line, inspection, services all from our Italy Headquarters. Following EU services, we provide the boiler 3 years warranty for clients. No only in China and Asia area, we are also responsible for supplying products to othr parts of the world. We are located in QingDao, Hi-Tech industrial park, investment thirty million dollars, and occupy one hundred thousand square meters. Our company is about 30 minutes' drive from QingDao airport, and you are most welcome to visit us when you are in China.





 Certificates:

High quality Chain grate stoker Coal fired Boiler







 Exhibition:

High quality Chain grate stoker Coal fired Boiler








Product Description

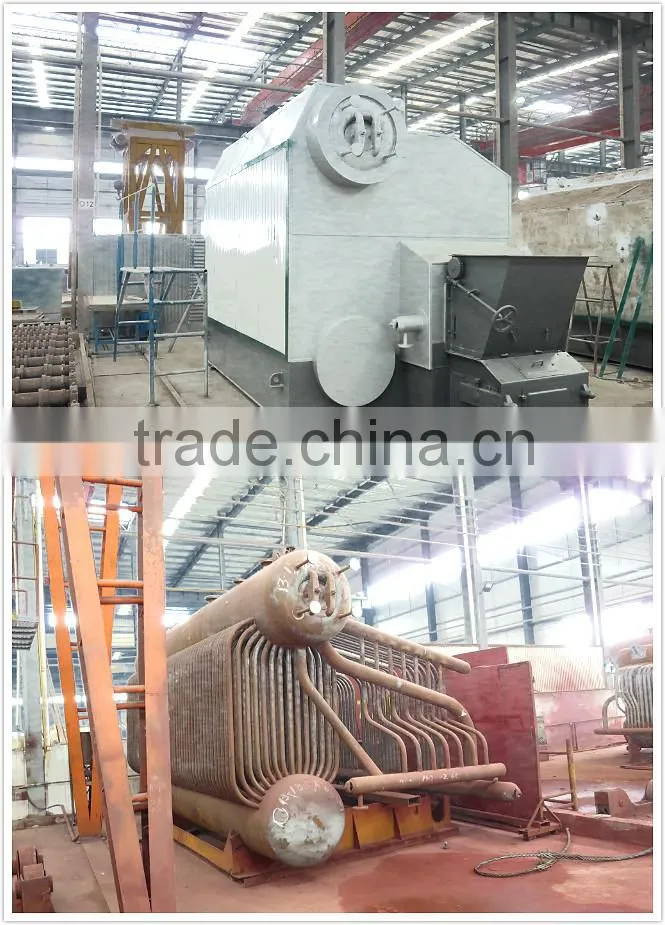

High quality Chain grate stoker Coal fired Boiler

1.This series boiler belong to double drums water tube boilers, designed for blowdown on surface and the quality of steam is pretty good.

2.Steam boiler is devided into saturated steam boiler and overheat steam boiler and meet the needs in seperated.

3. Boiler main body and grate adopt large parts for ex-factory, short installation time and low charge for installation.

4. boiler capacity of 4-35T / H (2.8-29MW).





Coal-fired Steam Boiler Technical specifications

Item/Type

SZL4-1.25-AII SZL4-1.6-AII

SZL6-1.25-AII SZL6-1.6-AII

SZL8-1.25-AII SZL8-1.6-AII

SZL10-1.25-AII SZL10-1.6-AII

SZL15-1.25-AII SZL15-1.6-AII

SZL20-1.25-AII SZL20-1.6-AII

SZL25-1.25-AII SZL25-1.6-AII

Rated capacity t/h

4

6

8

10

15

20

25

Rated steam pressure Mpa

1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

Rated Steam Temperature Degree

194/204

194/204

194/204

194/204

194/204

194/204

194/204

Feed water temperature Degree

20

60

60

60

105

105

105

Heated area

Radiation convection

15.6/112

21.6/132

25.2/171.5

29.5/204.1

37.21/284.68

58.4/307.4

64.8/384.8

Boiler Thermal efficiency %

81

80.3

81.6

81

81

80.7

80

Fuel Consumption kg/h

658

1002

1336

1673

2535

3378

4272

Effictive area of grate

6.4

7.8

10.04

11.8

17.81

22.56

24.52

Max. transport size

L (mm)

7070

7860

6900

7900

9300

11500

12000

W (mm)

2750

2960

3100

3100

3300

3300

3300

H (mm)

3524

3524

3525

3525

3522

3540

3540

Weight of largest parts of boiler transporting (T)

31/31.4

34.5

30

34

44.5

55

60

Class A boiler manufacture ASME, GB, CE, GOST, AS standard.

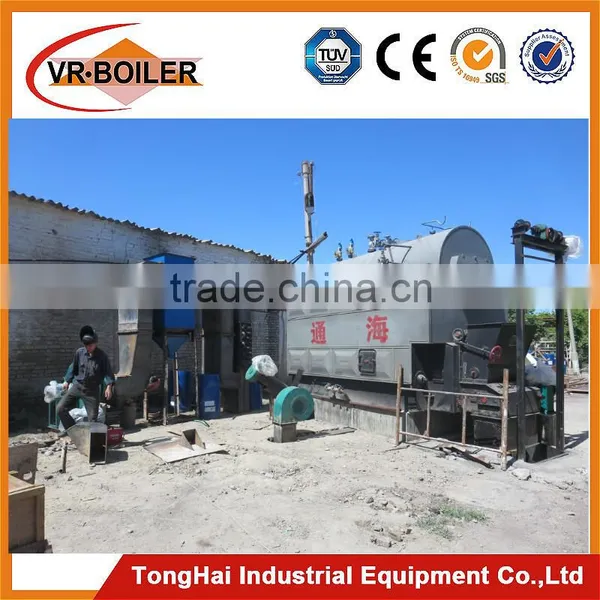

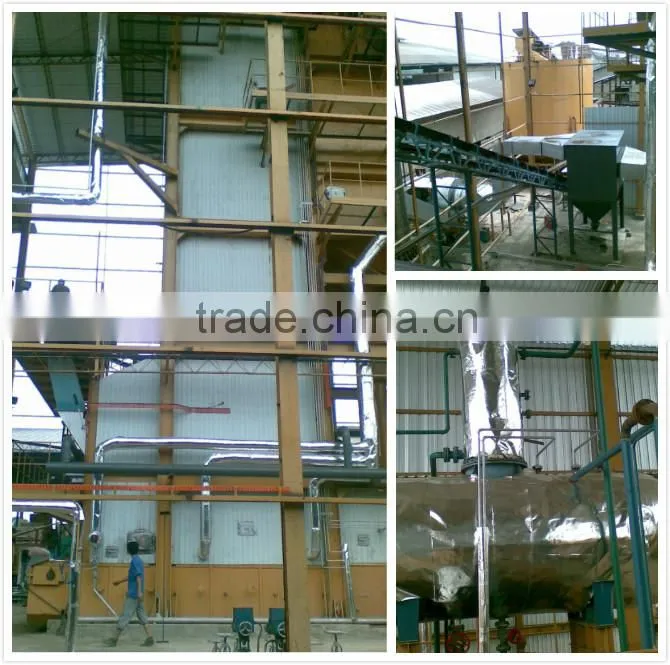

Customers reference



High quality Chain grate stoker Coal fired Boiler

High quality Chain grate stoker Coal fired Boiler





High quality Chain grate stoker Coal fired Boiler

Various Fuel can Accept:

High quality Chain grate stoker Coal fired Boiler








Packaging & Shipping



 High quality Chain grate stoker Coal fired Boiler

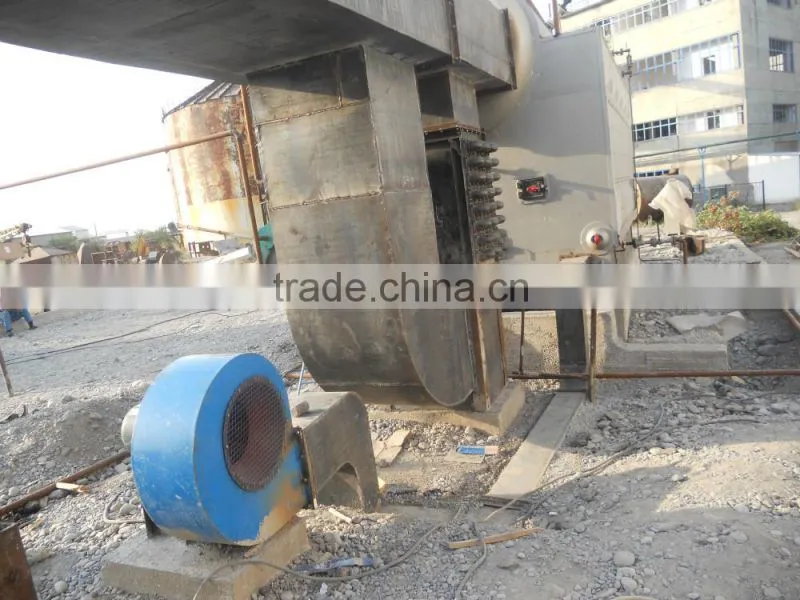

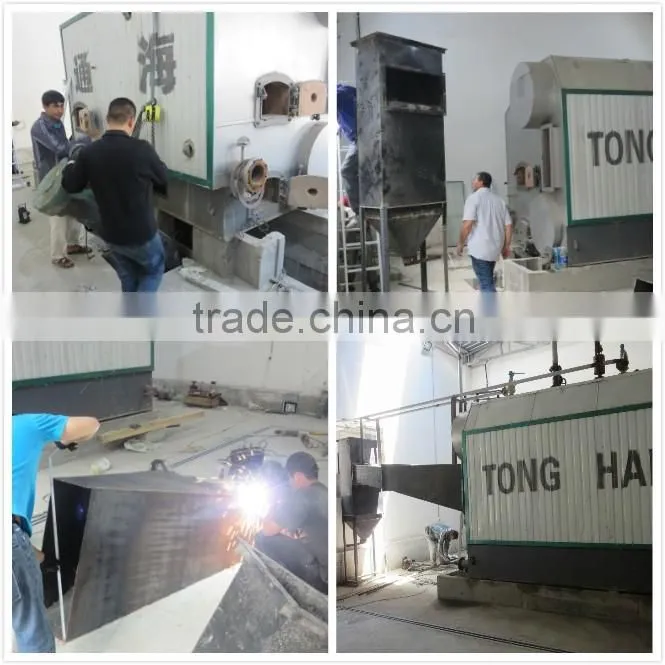

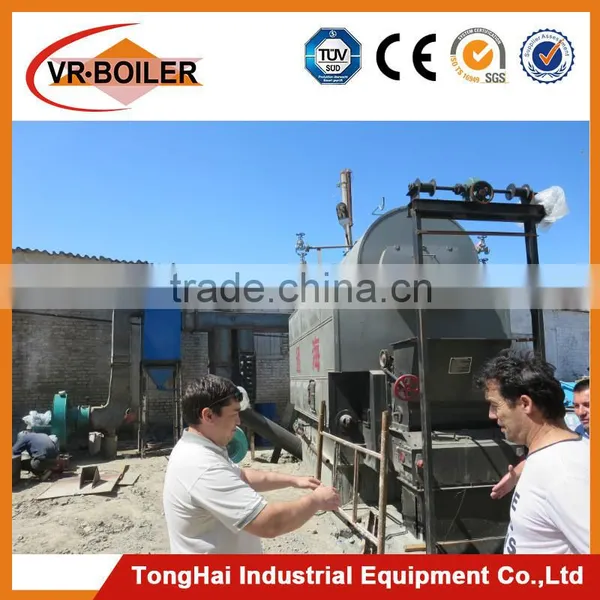

  Client Installation:High quality Chain grate stoker Coal fired Boiler
















Our Services



1, Boiler body warranty 3 years.



2, Study the needs of customers, help customers decision.



3, Provide the completely design drawing and technical training   service.



4, Supply all spare parts in boiler working life.



5,Engineers are available service overseas.









FAQ



How much steam capacity do you want ?

Answer: 0.5Ton/hr to 100Ton/hr

How much working pressure it the boiler ?

Answer: 4bar ~ 75bar

What kind of fuel do you prefer ?

Answer: Coal, Wood etc

And, what are the electric conditions in your market ? Voltage, HZ etc

Answer: 380V, 50HZ, 3Phase
