Tong Hai Power the pioneer industrial boilers of China market, and we have various boilers for worldwide customers.

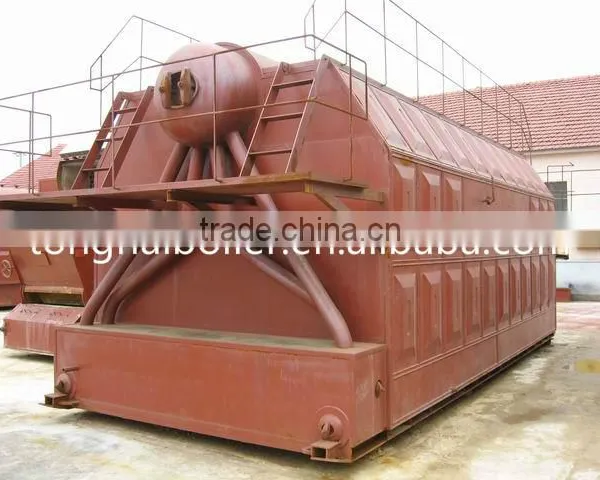

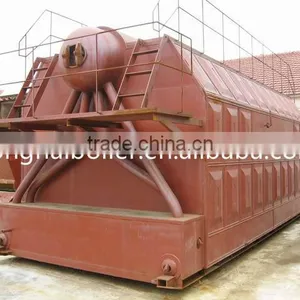

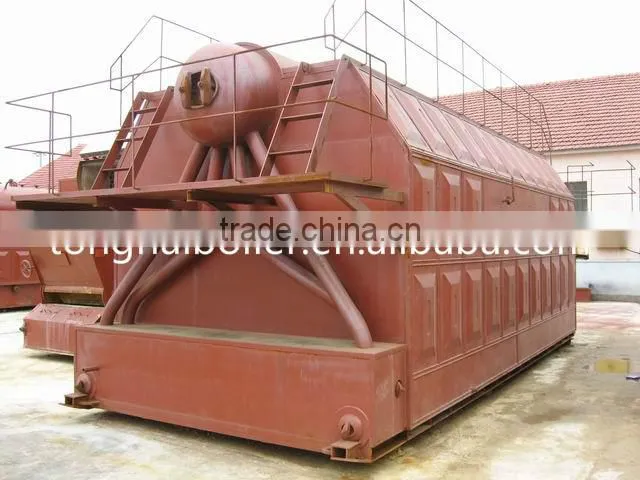

Coal fired chain grate steam boiler:
1.The boiler adopt single drum, monolayer arrangement, compact structure, sufficient output, safe and reliable operation, short construction period, and low installation cost ect.
2.The design of cyclone reburning chamber in furnace resulted in the decrease of dust contained in the flue gas. At the same time, incandescent carbon black particles shall burn further, enhancing the boiler thermal efficiency, and decreasing gas blackness, as a result, the gas emission concentration shall meet the requirements of grade A environmental protection area.
3.The grate employ the technology patent of small roller structure, boundary grate and so on, improving the operation reliability of the boiler.
4.Since the adoption of technology patent for the sealed wind chamber and bilateral grate air register, and the application of machining cone seal structure to grate adjusting air equipment, the sensitivity of the grate shall be improved.
5.According to the customers' requirements, other energy saving equipment, shall be matched.
Horizontal automatic coal fired steam boiler main purpose is to provide high quality steam and motive power for industrial production, such as textile, papermaking, rubber, food, hospital and other industries.
Compared with the other domestic capacity products ,we have the advantages of reasonable and compact structure and low steel consumption.
Technical specifications:
|
Item parameter Model |
DZG 0.5-0.7-AII |
DZL(W) 1-0.7-AII |
DZL(W) 2-0.7/1.25-AII |
DZL(W)4-1.25/1.6-AII |
DZL(W) 6-1.25-AII |
DZL(W)8-1.25-AII |
DZL(W) 10-1.25-AII |
DZL(W)20-1.25-AII |
|||
Rated evaporation capacity |
t/h |
0.5 |
1 |
2 |
4 |
6 |
8 |
10 |
20 |
||
Operation pressure |
Mpa |
0.7 |
0.7 |
0.7/1.25 |
1.25/1.6 |
1.25 |
1.25 |
1.25 |
1.25 |
||
Steam temperature |
℃ |
169.6 |
169.6 |
169.6/194 |
194/203 |
194 |
194 |
194 |
194 |
||
Water-inlet temperature |
℃ |
20 |
20 |
20 |
20/60 |
20 |
20 |
105 |
105 |
||
Boiler heating efficiency |
% |
71.76 |
74.41 |
77 |
81 |
81.5 |
82 |
82.75 |
82.75 |
||
Area of stoker |
m2 |
1.26/0.88 |
1.74 |
3.04 |
5.14 |
7.4 |
11.4 |
11.4 |
20.8 |
||
Primary steam valve drifted diameter |
mm |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN80 |
PN1.6/2.5DN100 |
PN1.6DN125 |
PN1.6DN150 |
PN1.6DN150 |
PN1.6DN200 |
||
Water inflow valve drifted diameter |
mm |
PN1.6DN40 |
PN1.6DN40 |
PN1.6DN40 |
PN1.6/2.5DN50 |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN50 |
PN1.6DN65 |
||
Fuel |
Coal available |
II type bitumite |
|||||||||
Consumption |
kg/h |
75 |
145 |
290 |
580 |
960 |
1220 |
1490 |
2700 |
||
Dimensions of biggest parts for shipment (L x W x H) |
m |
2.8*2*2.7 |
4.53*1.9*3.07 |
5.82*2.1*3.22 |
6.5*2.66*3.52 |
7.7*3*3.54 |
7.1*3.2*3.5 |
8.2*3.3*3.6 |
9.45*3.77*7.1 |
||
Weight of biggest parts for shipment |
t |
8.5 |
16.7 |
18/19 |
27/29 |
32 |
42 |
40 |
30 |
||
Overall dimensions of boiler assembled (L x W x H) |
m |
2.8*3.1*3.5 |
5.3*2.2*3.3 |
6.5*4.0*3.7 |
7.2*4.5*4.0 |
7.9**4.5*4.1 |
7.9*6*6.5 |
11.6*4.4*6.4 |
10.7*5.51*8.68 |
||
Water supply pump |
model |
1W2.4-10.5 |
1W2.4-10.5 |
1 1/2GC-5*4/6 |
1 1/2GC-5*7 |
1 1/2GC-5*7 |
2GC-5*6 |
2 1/2GC 6*6 |
65DG50*4 |
||
Motor power |
kw |
3 |
3 |
5.5/7.5 |
7.5/11 |
15 |
15 |
22 |
22 |
||
Auxiliaries boiler:

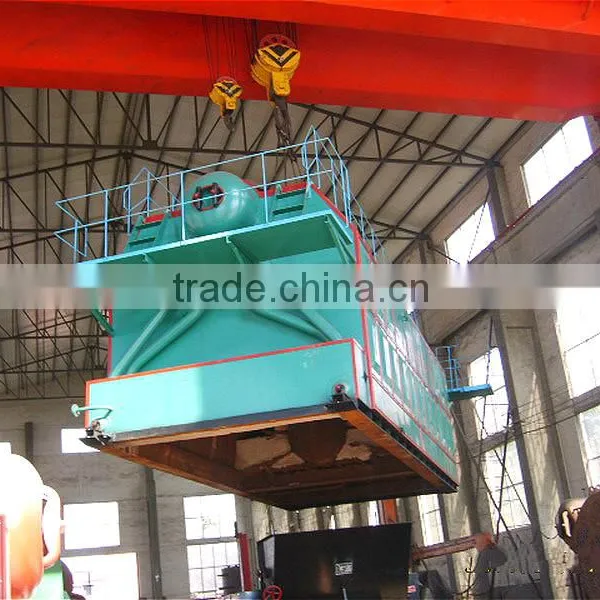

working shop:
Boiler shipping :
Our services:
------We can help design and manufacture boilers according to customers’ special requirements.
------Engineers are available service overseas.
------Ferroli boiler body warranty 3 years.
------Engineers 24hours online.
FAQ:
How to install a boiler?
Tonghai Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance
How many years is the boiler’s life?
The boiler is designed for 20years life,
How to choose a boiler model?
Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, Tonghai Boiler will suggest a suitable model based on your usage
How is the warranty term?
If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
