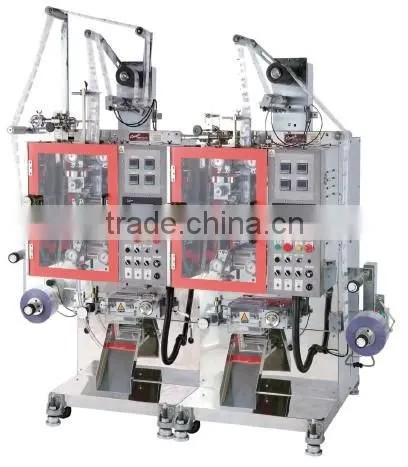

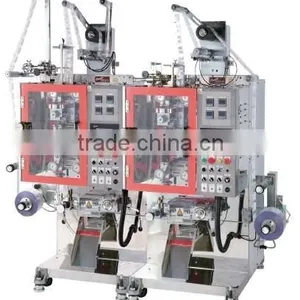

2TYL-1000 AUTOMATIC LIQUID & PASTE FILLING AND PACKAGING MACHINE
Product Specification:
This machine is liquid-paste automatic filling and packaging machine,which be manufactured to pursue small space occupied & high productivity. This machine is different with the ordinary 2 column packing, it can production and packing 2 fillings at the same time. Besides,the drive is controlled by different systems, so even if there is malfunction happened on one column,the other one can continue the production status and won’t be affected.
| SPECIFICATIONS: | |
| Filling Product: | Liquid & Paste
|
| Pouch Pattern: | 3-side seal & 4-side seal
|
| Pouch Height Range: | 40-200mm Variable range is limited by division of the horizontal seal 2divisions 3divisions 4divisions 6divisions According to the width of horizontal sealing pouch height range is different.
|
| Pouch Width: | 25-100mm 4-side seal when pouch width is 100mm
|
| Packaging Capacity: | 20-300 pouches per minute (depending on pouch height,film composition, product property,etc)
|
| Filling Capacity: | 1~100c.c. (depending on product property and filling device to be used)
|
| Applicable Film Width: | 50~200mm
|
| Maximum Film Roll Dia: | 400mm
|
| Power Consumption: | 3-phase 380V 5.5kw
|
| Machine Dimensions: | 1960mm(L)×1120mm(W)×2100mm(H)
|
| Machine Weight: | Approx.1500kg
|
| Application: | This machine is broadly used in packaging liquid soup, cosmetics,cleansing liquid and mayonnaie,which require high filling precision. |
Advantage:
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel is accord with the request of GMP.
Auto Package process
Packing Sample:
After Service:
The seller guarantee to solve all problems which may occur due to manufacture’s mistakes or wrong design, a
nd to provide all necessary spare parts and in case if the problem is serious and can’t be solved by buyer, The
seller has to send his technician on the buyer’s account.
