GXPS Pressure Sensor for Wide Scope of Application

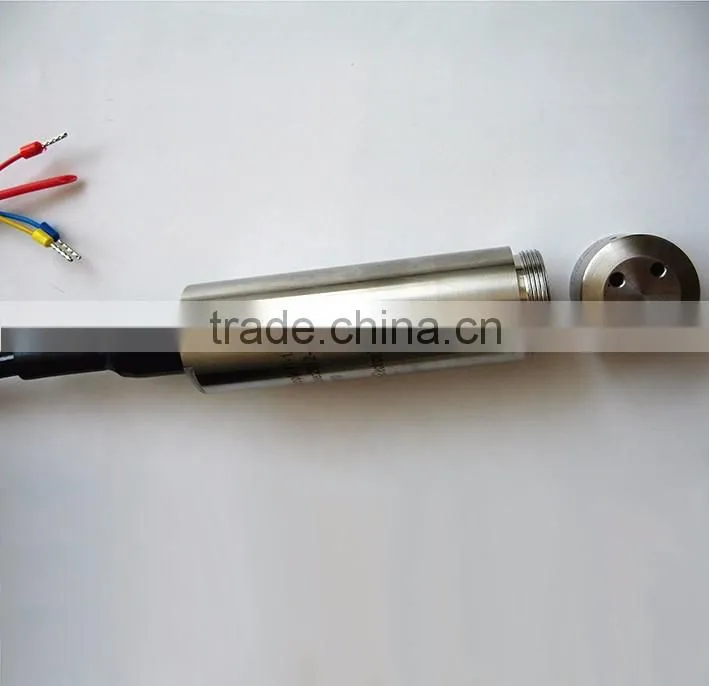

GXPS Pressure Sensor for Wide Scope of Application photo-1

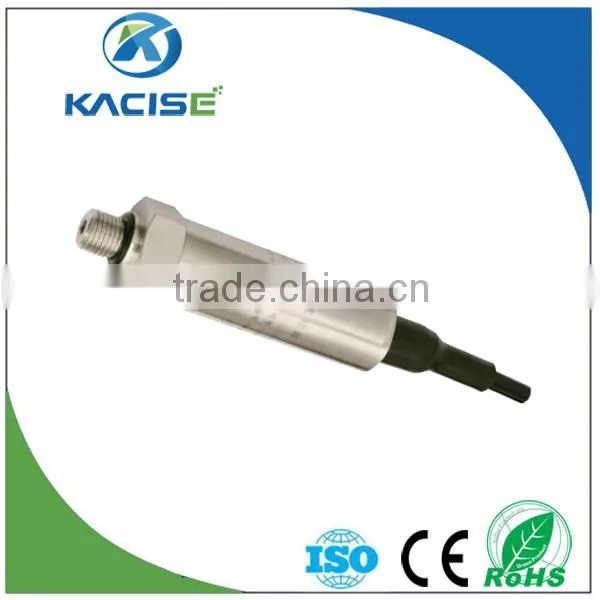

GXPS Pressure Sensor for Wide Scope of Application photo-2

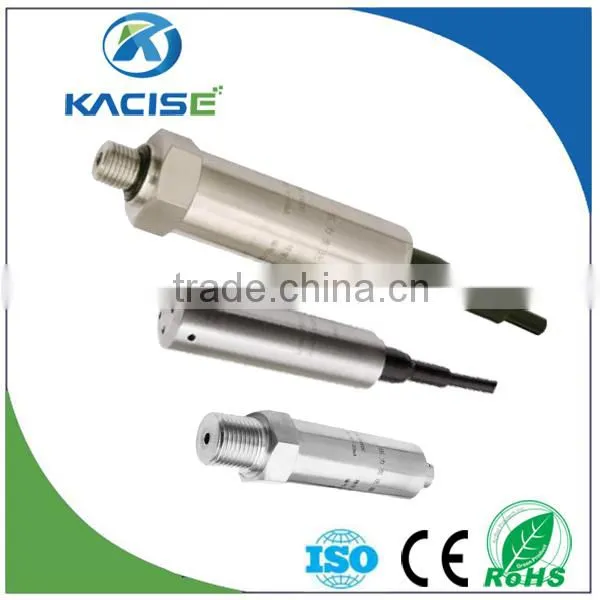

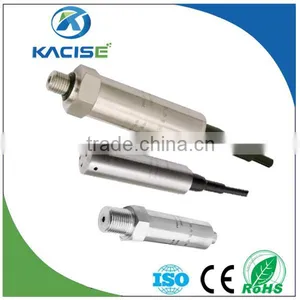

GXPS Pressure Sensor for Wide Scope of Application photo-3

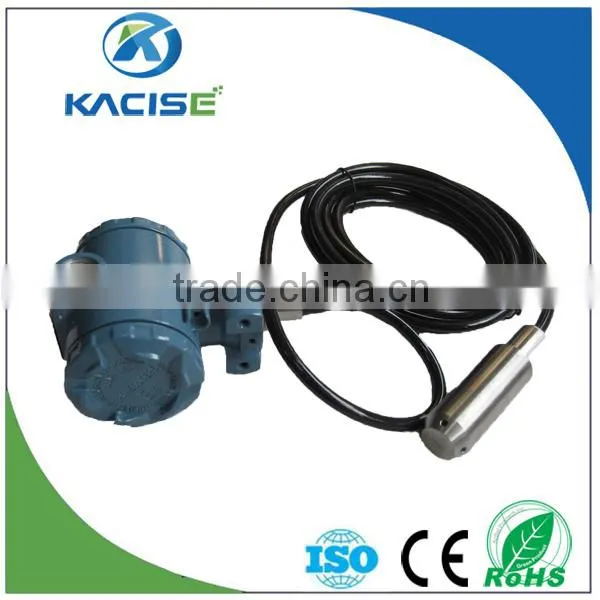

GXPS Pressure Sensor for Wide Scope of Application photo-4

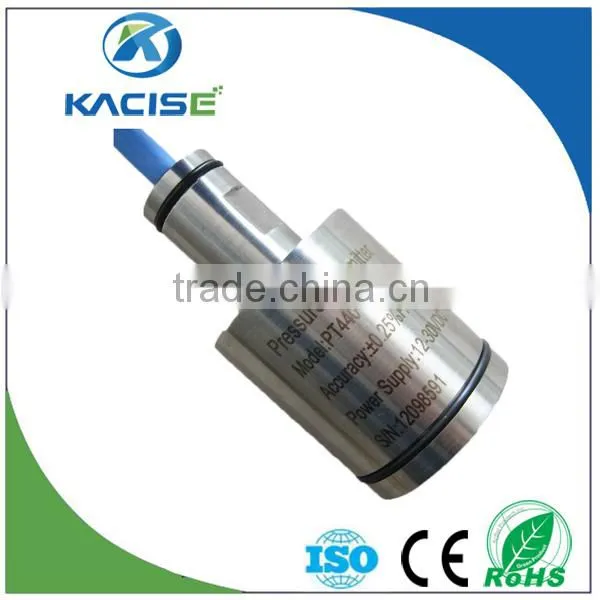

GXPS Pressure Sensor for Wide Scope of Application photo-5
US$ 79 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
KACISE
Model Number:
GXPS400 GXPS400M GXPS440 GXPS800
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shaanxi, China
Brand Name KACISE
Model Number GXPS400 GXPS400M GXPS440 GXPS800
Product Description

The GXPS pressure sensor is high resolution level sensor, it's made of stainless steel. It is robust for vibration, such as vehicle, generator, railway train and etc. Also it is good for bad quality liquid, such as sewage,mildly corrosive liquid or other water.

Specification
Numerical value




Pressure range
0~1……500mH2O
0~9.8KPa…4900KPa
0~0.09bar…49bar
0~0.09atm…48atm
0~1.4psi… 711psi
0~2.8inchHg…1400inchHg
Overload pressure
1.5times Rated pressure
Secondary containment
3 times rated pressure
Accuracy
±0.25%F.S,   ±0.5%F.S,  ±1.0%F.S
Stability
Typical value: 0.1%F.S   Max.: 0.2% F.S/year
Operating Temperature
-40°C~85°C  or -40 °C  ~125 °C
Compensation temperature
-10°C~70°C
Medium compatibility
All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties
2 line
3 line
Output signal
4~20mA
0~5V
0~10V
Power supplies
9~30Vdc
8~30Vdc/ac
11~30Vdc/ac
Load resistance
(U-10)/0.02(Ω)
〉 100kΩ
Insulation
〉 100MΩ@50V

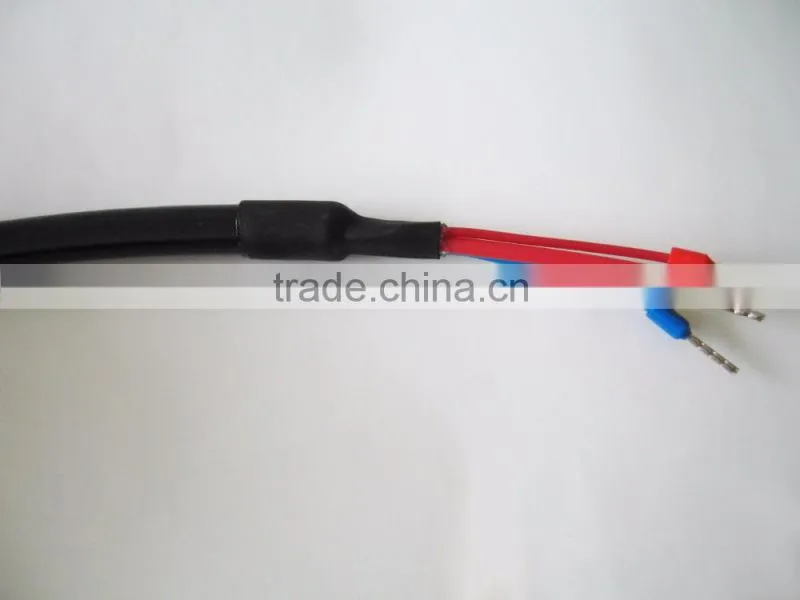

Electrical Connections
waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue   protection grade : IP68
Pressure interface
G1/4,input type
Response time
10ms
Warm up time
60ms
Electric strength
500Vac@1 second
Electromagnetic compatibility
electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection
air conduction resistance 8000V,case, cable conduction

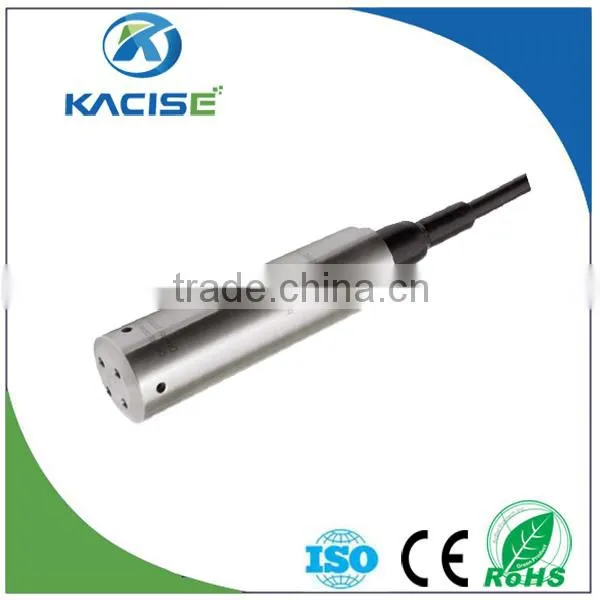

Products Show
Our Company

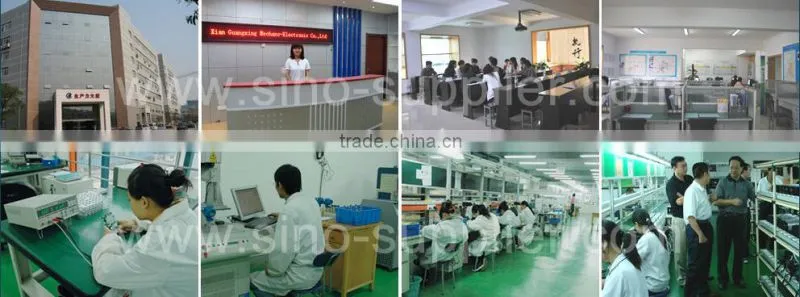

Factory

Our Factory

Workshop

Our Workshop

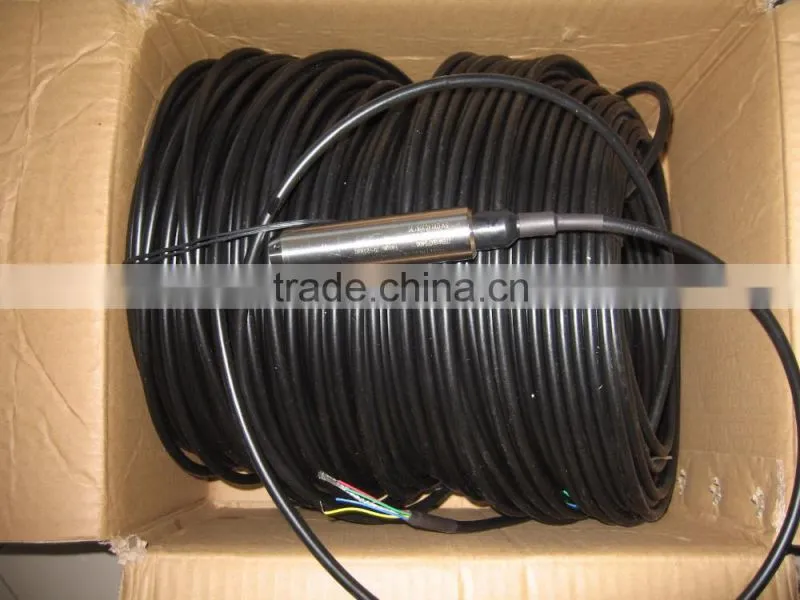

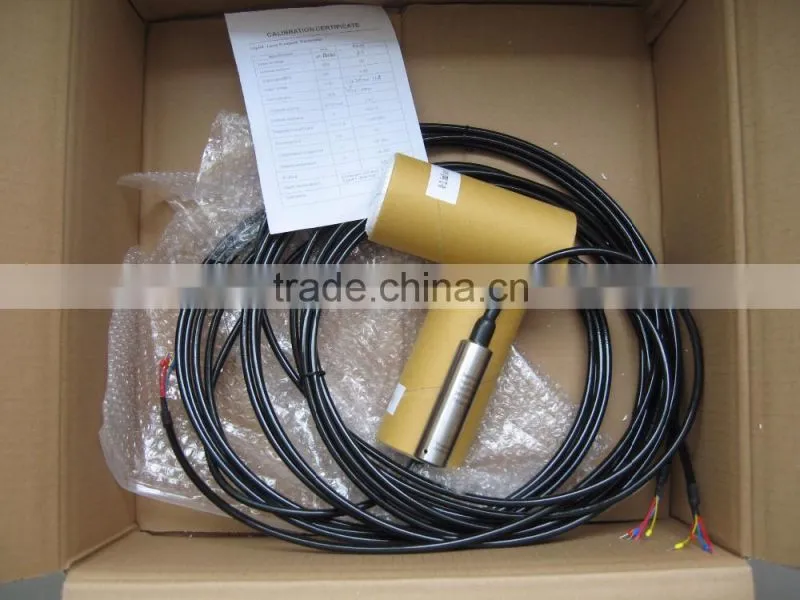

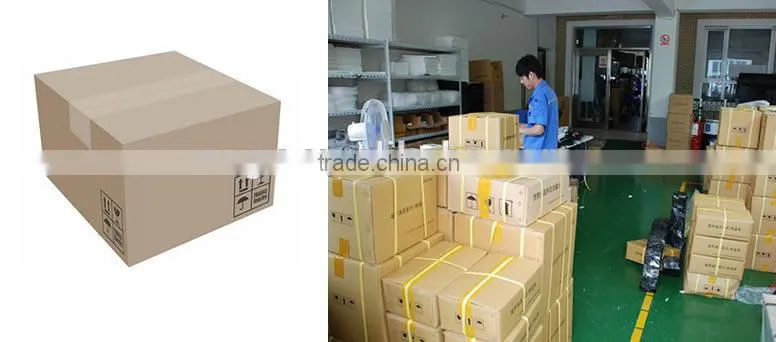

Packing & Delivery

Packing Details  : standard export packing

Delivery Details : 5-15 days after payment

Our Certifications

Certification: ISO9001, CMC, CE, RoHS, ATEX etc.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock, or it is 5-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample, samples and freight fee should be paid by customer .
