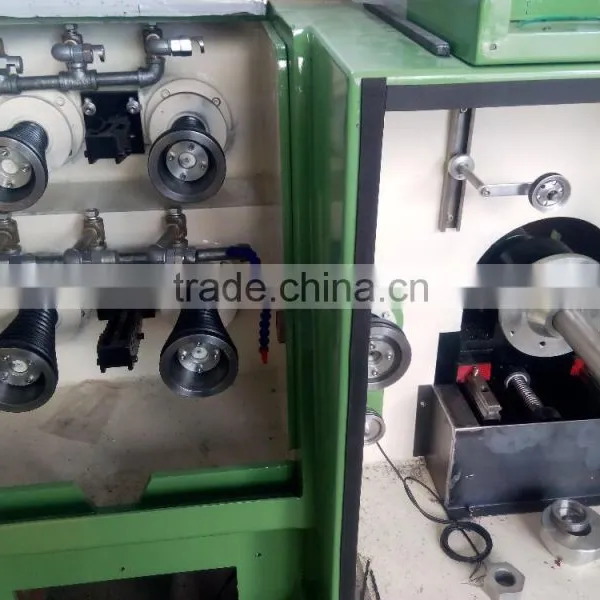

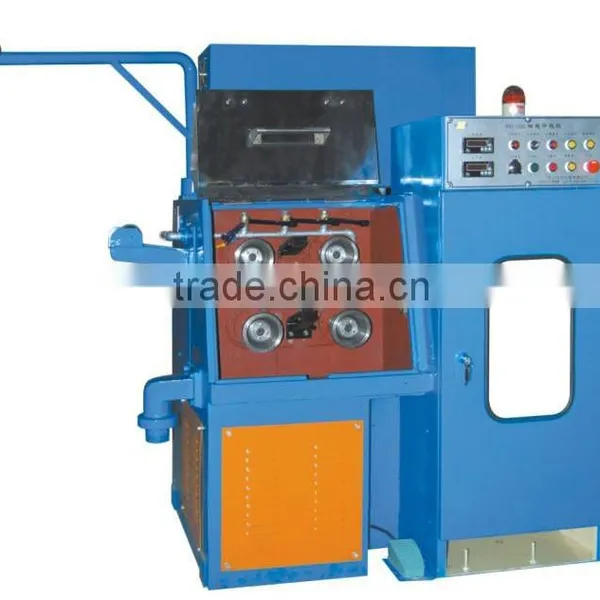

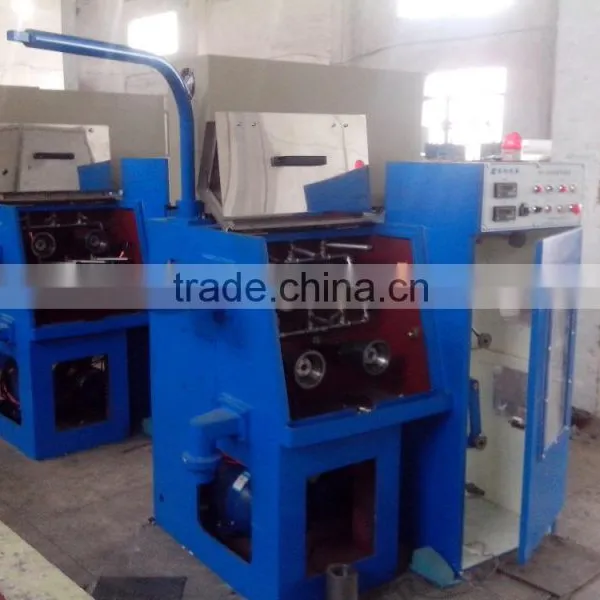

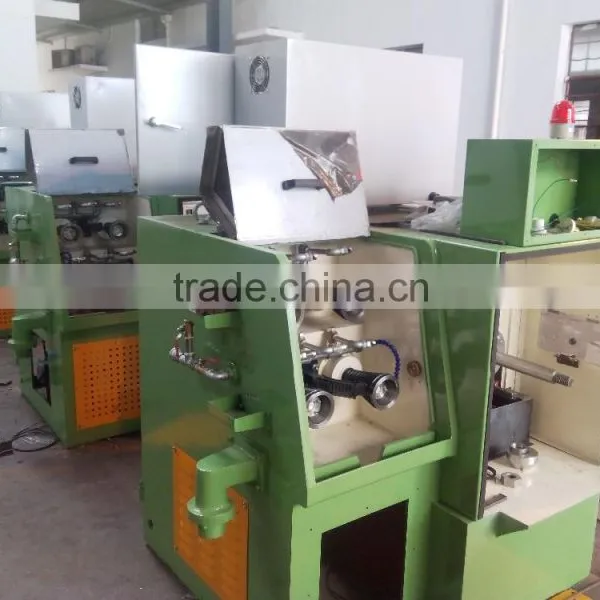

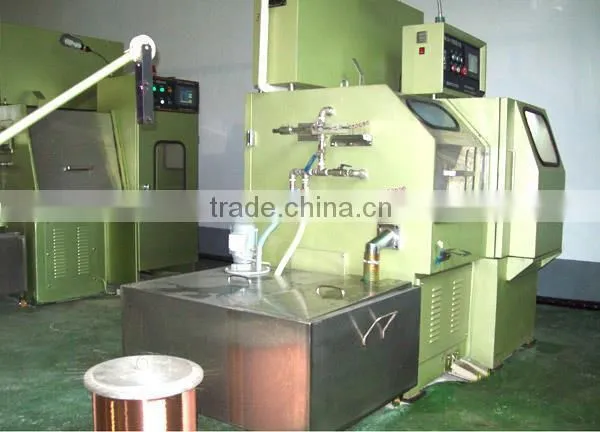

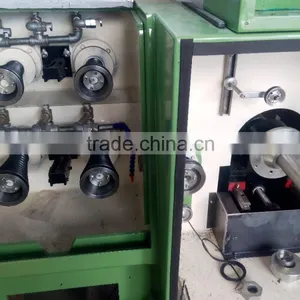

Supper Fine Wire Drawing Machine
US$ 10,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HXE
Model Number:
20D
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fine House Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set -
HXE-22DS Copper Aluminium Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
HXE-24DW Fine Copper Wire Drawing MachineUS$ 1 - 7,000MOQ: 1 Set
-
Silver Wire Drawing Machine / Gold Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
HXE-24DW Fine Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HXE
Model Number
20D
Usage
Drawing

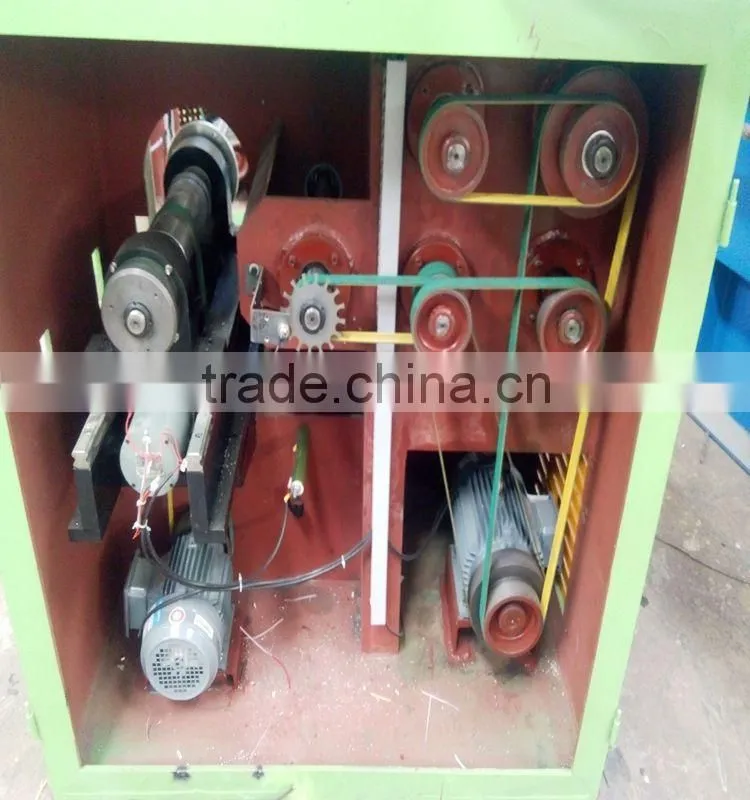

Supper fine wire drawing machine is used to drawing the copper wire from 0.15-0.4mm to0.05-0.12mm. The max.line speed is 1800 meters per minute.,so the machine is of high efficiency. Besides it is easy to operate and maintain.
product parameter
| outlet dia. | 0.05-0.12mm |
| inlet dia. | 0.15-0.4mm |
| Max.line speed | 1800mpm |
| dies No. | 20 |
| slip ratio of m/c | 10.5%+6% |
| frame | iron cast |

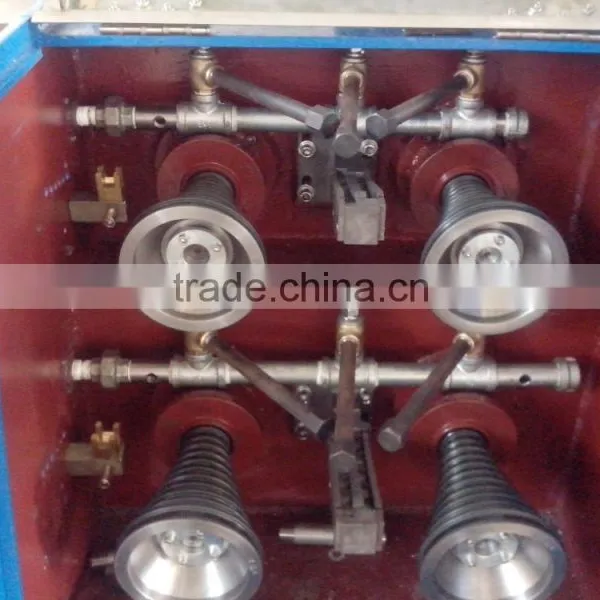

| capstan | ceramic plasma |
| Max. capstan diameter | 120mm |
| fix speed capstan diameter | 120mm |
| spooler bobbin size | 250mm |
| traversing unit | 50-100W strap sychronous motor |
| main motor | 5KW |
| spool motor | 2.2KW |
| transmission type | flat belt |
| revise system | PID sychronous control spooler |
| tension control | weight balance type |
| brake | magnetic brake |
| lubrication type for bearing | oil immersion |
| power source | 380v 50/60HZ |
