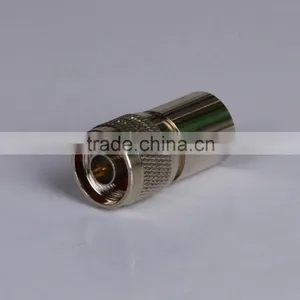

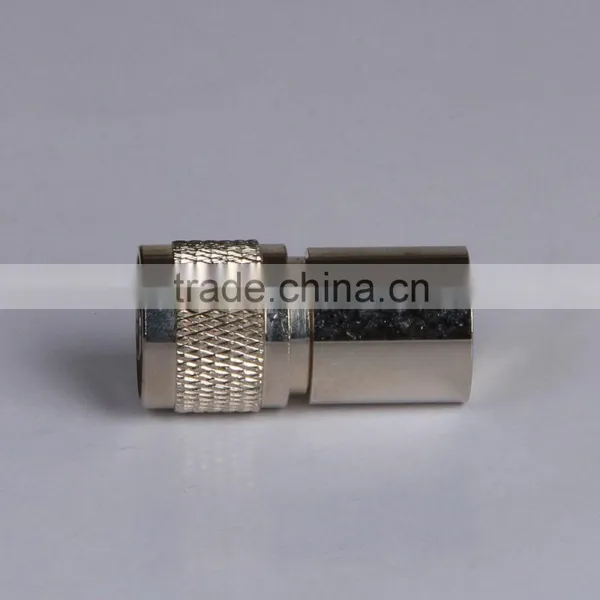

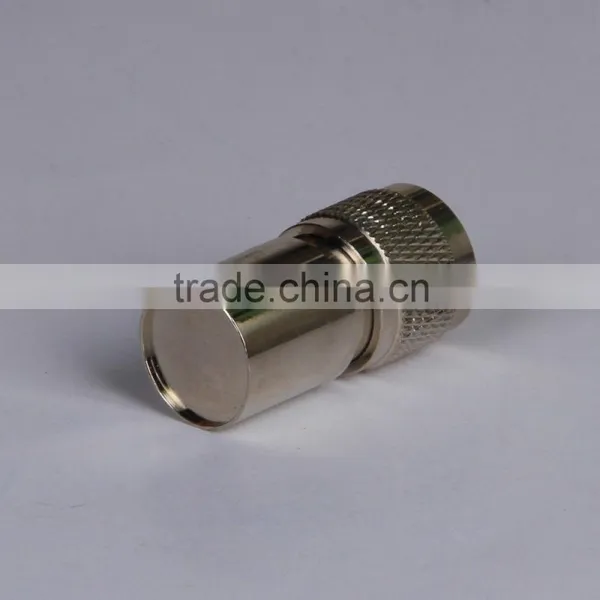

Help CenterCoaxial Termination Loading N Male RF Connector
Related Products
-
N Female Jack Panel Mount Chassis PCB RF Connector AdapterUS$ 0.5 - 1.5MOQ: 10 Pieces -
N Clamp Plug Male Connector for 50-5 KSR300 Cable Straight RF Coax ConnectorUS$ 0.6 - 1MOQ: 10 Pieces
-
N Pipe Connector ,cable ConnectorUS$ 0.5 - 5MOQ: 10 Pieces
-
N Male/plug Crimp for Rg142 Cable Connector Made in ChinaUS$ 0.8 - 1.5MOQ: 100 Pieces
-
Male to Female N Type RF Connector,adapterUS$ 0.1 - 5MOQ: 100 Pieces
Description
Type N is a kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50Ω and 75Ω. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. they are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11GHz.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Technical Characteristics
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
Impedance |
50Ω |
Vibration |
100m/S2 (10~500Hz), 10g |
Frequency Range |
DC-11GHz |
Insertion Loss |
<= 0.24dB/6GHz |
Withstanding Voltage |
2500V r.m.s at sea level |
Working Voltage |
1000Vr.m.s at sea level |
Insulation Resistance |
>= 5000 MΩ |
Coupling nut retention force |
450N |
Durability |
>= 500(cycles) |
Contact resistance: |
Center Contact <=1mΩ |
Outer Contact <=1mΩ | |
Voltage Standing Wave Ratio: |
Straight <= 1.15/6GHz |
|
Right angle <= 1.25/6GHz |
