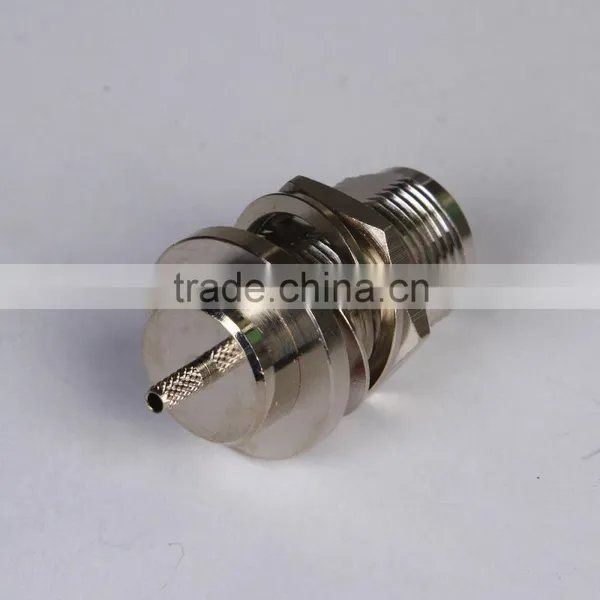

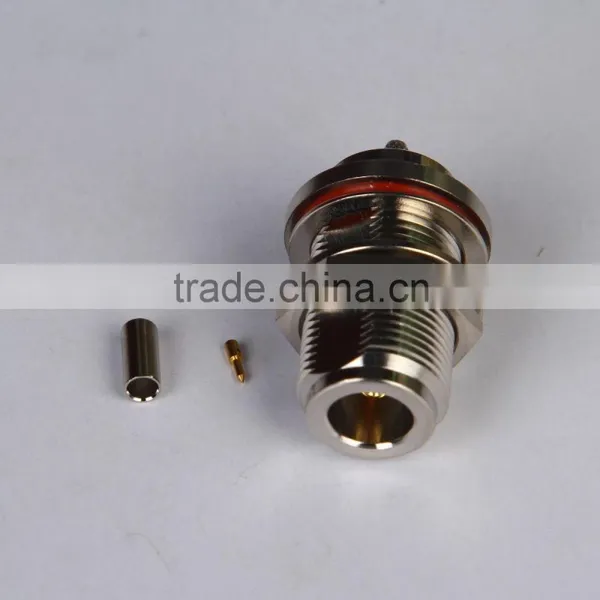

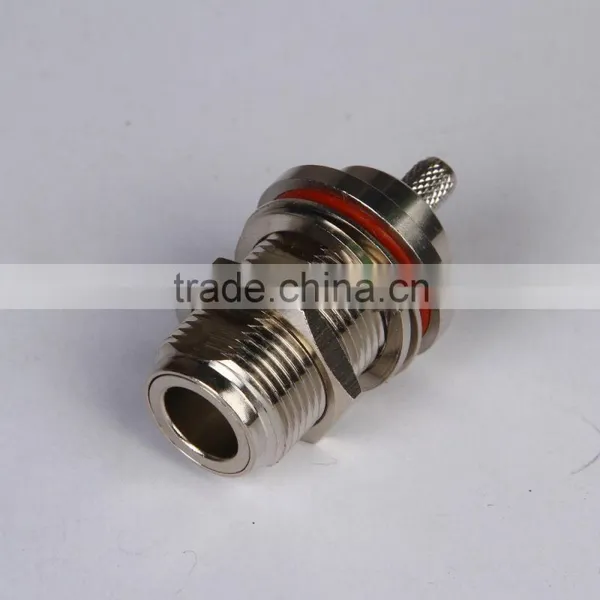

Help CenterN Female Waterproof RF Coaxial Cable Connectors
Related Products
-
RF Male/female Connector, China Supply N Type Coaxial Cable ConnectorUS$ 0.32 - 0.58MOQ: 100 Pieces -
N Type RF Male Honda Connector Adaptor, 50 OhmsUS$ 1.8 - 2.1MOQ: 100 Pieces
-
Coaxial Cable Price RF Connector, N Female Connector With Cables 3D-FB/ LMR200US$ 0.1 - 1MOQ: 100 Pieces
-
50 Ohms Male N Connector for Coaxial Cable Price, China Supply RF Connector for CommunicationUS$ 0.32 - 0.56MOQ: 100 Pieces
-
N Type Connectors, High Frequency Transformer, 50ohms Female Coaxial AdaptorUS$ 0.21 - 0.92MOQ: 500 Pieces
Major Technical Characteristics
Temperature Range |
-55~+155°C(PE Cable -40~+85°C) |
Vibration |
100m/S²(10~500Hz)10g |
Impedance |
50Ω |
Frequency Range |
DC~11GHz |
Working Voltage |
1000V r.m.s at sea level |
Withstanding Voltage |
2500V r.m.s at sea level |
Contact resistance |
Center Contact ≤1mΩ Outer Contact ≤1mΩ |
Insulation resistance |
≥5000MΩ |
Center conductor retention force |
≥0.56N |
Coupling nut retention force |
≤450N |
Insertion Loss |
≤0.24dB/6GHz |
Voltage Standing Wave Ratio |
Straight ≤1.15+6GHz Right angle ≤1.25+6GHz |
Durability(mating) |
≥500times(cycles) |
Our service advantage
1) factory sell directly & a good service
2) long-term, strong and steady supplying ability
3) delivery time: 5-7 working days
4) ex-factory price and competitive price
5) do as your requirements on package, brand or other designs
