Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > RF COAXIAL CONNECTOR,TYPE TNC CONNECTOR, 50OHM,RIGHT ANGLE/PLUG,MALE,MATCHING.
RF COAXIAL CONNECTOR,TYPE TNC CONNECTOR, 50OHM,RIGHT ANGLE/PLUG,MALE,MATCHING.
US$ 0.5 - 1.5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
TNC-C-KY1.5-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TNC Male Connector Crimp/Solder Attachment For RG58, LMR-195 CableUS$ 0.5 - 2MOQ: 10 Pieces -
Tnc Male Crimp,tnc Male Twist On,tnc Connector for Rg58 Rg59 Rg6 Rg213US$ 0.5 - 1.5MOQ: 10 Pieces
-
Shenzhen rp Tnc Female ConnectorUS$ 0.5 - 1.5MOQ: 10 Pieces
-
Factory Price Electrial Circular Connector TNC Male Crimp for RG174 Cable Coaxial ConnectorUS$ 0.5 - 2.5MOQ: 10 Pieces
-
Tnc Switch rf ConnectorUS$ 0.5 - 1.5MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
TNC-C-KY1.5-2
Type
TNC
Application
RF
Gender
Female
Specifications
1.Type:TNC
2.Socket:beryllium-copper/gold or silver plated

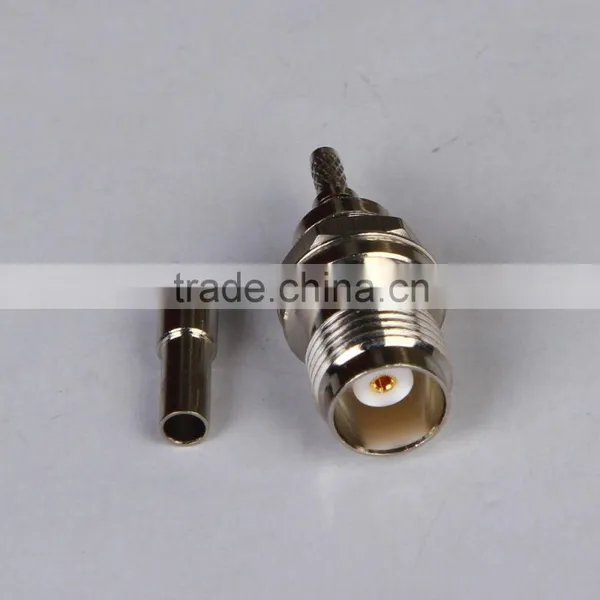

3.Female,bulkhead connector for RG174/316,50Ohm
4.Good price
Type TNC is one kind of RF coaxial connectors with screw coupling mechanism, Characteristic impedance is 50Ω.The characteristic of connector is in wide working frequency, reliable connection,great vibration performance etc.They are used in connection with RF coaxial cable in the the computer network, radio station, the mini-car telephone, navigation of spaceflight, microwave monitor system using radar and all kinds of radio equipments.
| MAJOR TECHNICAL CHARACTERISTICS | |
| Temperature Range | -55~ +155°C |
| Vibration | 150m/s2(10~2000Hz) 15g |
| Impedance | 50Ω |
| Frequency range | DC~11GHz |
| Working Voltage | 500V r.m.s at sea level |
| Withstanding voltage | 1500V r.m.s at sea level |
| Contact resistance | Center contact<=10m Ω Coter contact<=2.5m Ω |
| Insulation resistance | >=5000MΩ |
| Center conductor retentin force | >=0.57N |
| Insertion loss | <=0.20dB |
| Voltage Standing Wave Ratio | Straight <=1.22/3GHz Right Angle <=1.30/3GHz |
| Durability(mating) | >=500 times (cycles) |
| MATERIAL & PLATING | ||
| Body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| resilient contact | beryllium-copper | gold plated |
| insulator | PTFE | |
| crimp ferrule | copper alloy | nickel plated |
| O-ring sealing | 6146 silicone rubber | |
MIL-C-39012;
CECC 22200;
IEC 60169-17.
