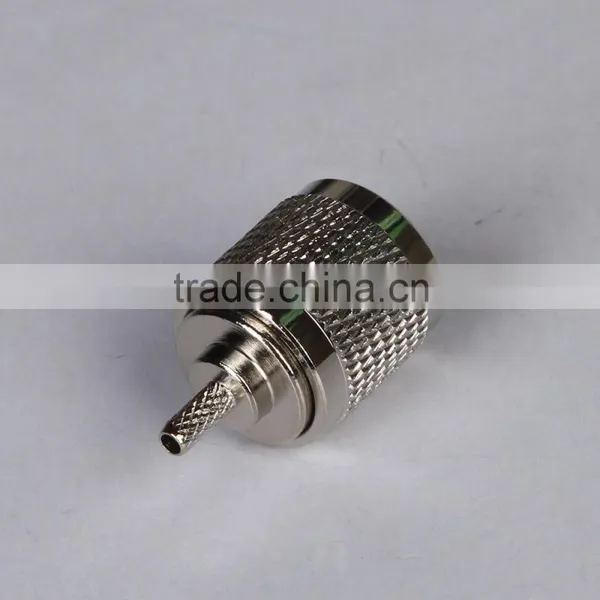

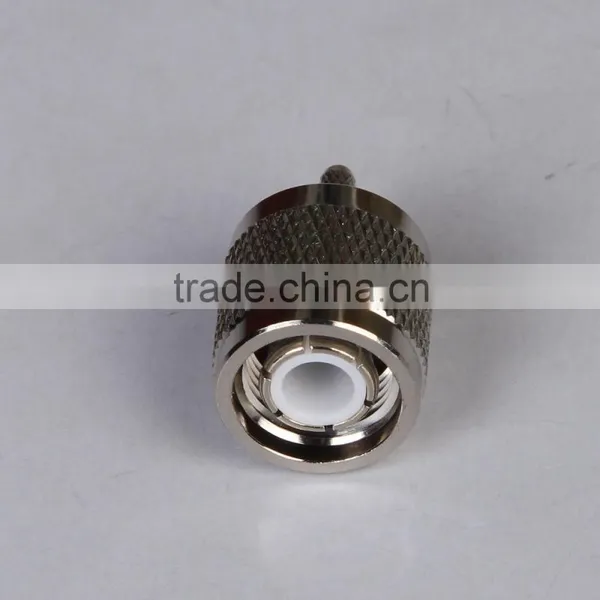

Tnc Male Crimp,tnc Male Twist On,tnc Connector for Rg58 Rg59 Rg6 Rg213
US$ 0.5 - 1.5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
TNC-C-J1.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shenzhen rp Tnc Female ConnectorUS$ 0.5 - 1.5MOQ: 10 Pieces -
Factory Price Electrial Circular Connector TNC Male Crimp for RG174 Cable Coaxial ConnectorUS$ 0.5 - 2.5MOQ: 10 Pieces
-
Tnc Switch rf ConnectorUS$ 0.5 - 1.5MOQ: 10 Pieces
-
Straight RP TNC Female Coaxial ConnectorUS$ 0.1 - 3MOQ: 100 Pieces
-
RF Crimp Clamp Solder Panel Mount Receptacles TNC Male Female ConnectorsUS$ 0.5 - 1.5MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
TNC-C-J1.5
Type
TNC
Application
RF
Gender
Male
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |
| Vibration | 150m/S²(10-2000Hz)15g | |
| Impedance | 50Ω | |
| Frequency range | DC-11GHz | |
| Working voltage | 500V r.m.s at sea level | |
| Withstanding voltage | 1500V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤10 mΩ | |
| Outer contact | ≤2.5 mΩ | |
| Insulation resistance | ≥5000MΩ | |
| Center conductor retention force | ≥0.57N | |
| Insertion loss | ≤0.20dB | |
| Voltage Standing Wave Ratio | ||
| Straight | ≤1.22/3GHz | |
| Right angle | ≤1.30/3GHz | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| resilient contact | Tin bronze | gold plated |
| insulator | PTFE | |
| crimp ferrule | copper alloy | nickel plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | MIL-C-39012 | |
| CECC 22200 | ||
| IEC-60169-17 | ||
According to the national and professional standards(GB&JS), we produce all kinds of RF coaxial connector:
SMA, SMB, SMC, BNC, TNC, N, 7/16(L29), 1.6/5.6(L9),MCX, MMCX, SSMA, SSMB, SSMC, SMZ, MC CARD(C2),UHF, MINI UHF, F, RCA etc.
And assembly of antenna, cable-package, audio and video connector, big specification connector of feeder line.
All kinds of adapter, impedance converter, fixed attenuator, termination loading, arrester.
All kinds of RF coaxial cable—SYV, SFF, RG, semi-rigid, etc.
• The aim of our company is to provide you outstanding quality, fast delivery, reasonable price, excellent after-sales.
• Please contact us for more details.
