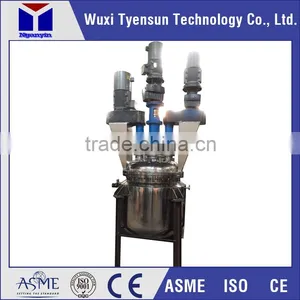

Help CenterTri-shaft Multi-function Dispersing and Mixing Vessel
Related Products
Multi-functional Tri-shaft Mixer is a product with dispersing, emulsifying, stirring functions developed on the basis of Dual Shaft Hydraulic Lifting mixer. It is mainly used in stirring and mixing of viscous material, the collocation of the tri-shaft stirring forms (dispersing +emulsifying +stirring, dispersing +dispersing+ stirring, stirring +stirring +stirring) to mix or stir the viscous materials single shaft mixer fails to mix; Its mixing efficiency is faster than dual shaft mixer, and the mixing effect is better.It has so strong adaptability that emulsion, dispersion and mixing can be simultaneously realized, and can be customized by the different requirement of materials characteristic and production process of the customer.
Options:
(1) Max. Capacity:7300L
(2) Materials Viscosity: ≤1,500,000 cp.
(3) Heating/Cooling: Jacket, optional.
(4) Agitator: Anchor, dispersion, butterfly, multi-layer , ribbon and etc.
(5) Installation Type: Hydraulic lifting/kettle mounted.
Other options are also available such as explosion-proof type, closed type, with lifting cover type,co-axial/dual shaft compound, multi-tanks type, etc..
Technology Parameter
| Model | Dispersing Power (kw) |
Dispersing Speed (rpm) |
Mixing Power (kw) |
Mixing Speed (rpm) |
Mixing Power (kw) |
Mixing Speed (rpm) |
Capacity (L) |
Hydraulic Power (kw) |
| TSM-100 | 3 | 0-2880 | 2.2 | 0-85 | 2.2 | 0-350 | ≤40 | 1.5 |
| TSM-200 | 7.5 | 0-1450 | 4 | 0-85 | 4 | 0-350 | ≤160 | 2.2 |
| TSM-300 | 11 | 0-1450 | 7.5 | 0-61 | 7.5 | 0-250 | ≤240 | 3 |
| TSM-500 | 18.5 | 0-1450 | 11 | 0-61 | 11 | 0-250 | ≤400 | 4 |
| TSM-800 | 30 | 0-1450 | 18.5 | 0-52 | 18.5 | 0-200 | ≤640 | 5.5 |
| TSM-1000 | 37 | 0-1450 | 22 | 0-52 | 22 | 0-200 | ≤800 | 7.5 |
| TSM-1300 | 45 | 0-1450 | 30 | 0-52 | 30 | 0-200 | ≤1000 | 7.5 |
| TSM-1500 | 55 | 0-1450 | 37 | 0-41 | 37 | 0-160 | ≤1300 | 11 |
| TSM-2000 | 75 | 0-1450 | 45 | 0-41 | 45 | 0-160 | ≤1600 | 11 |
(1) Wooden case usually.
(2) Sea shipping.
