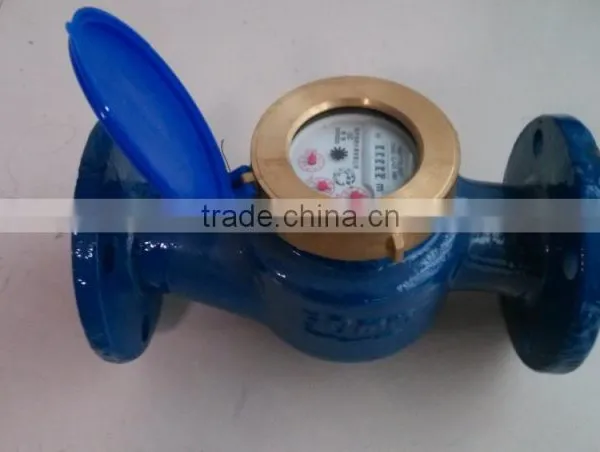

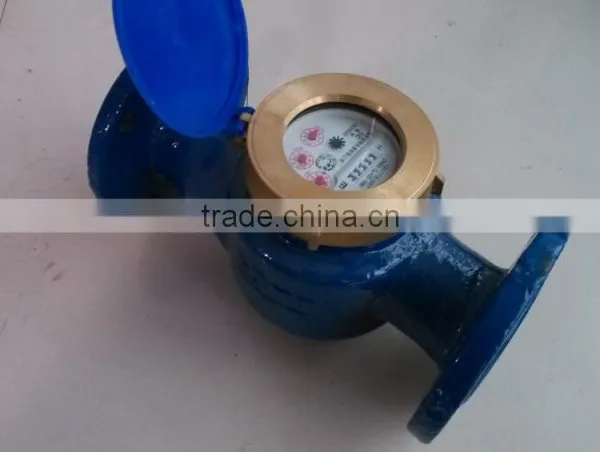

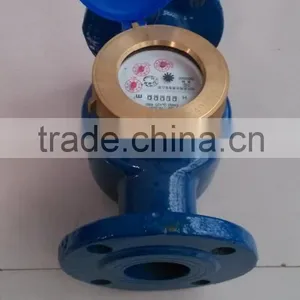

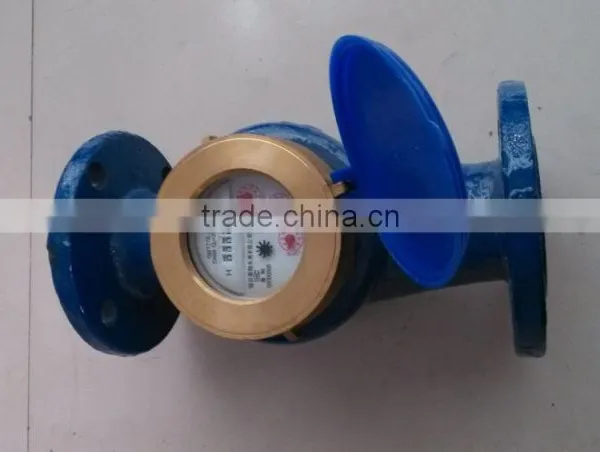

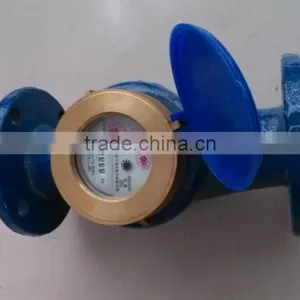

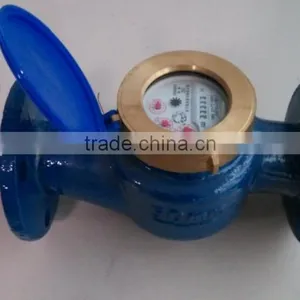

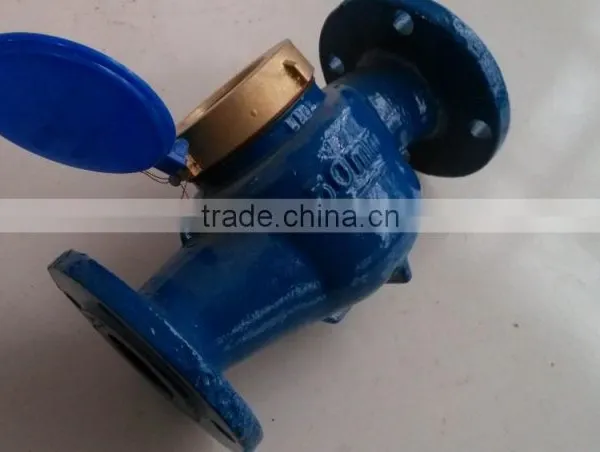

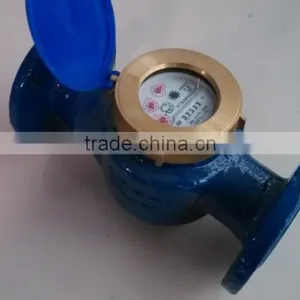

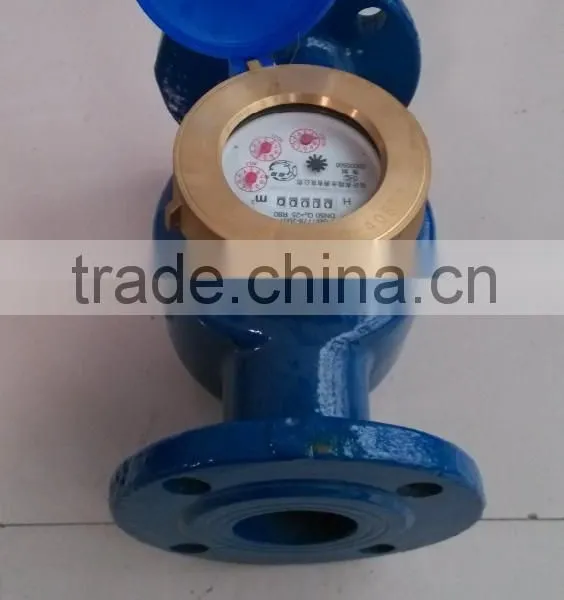

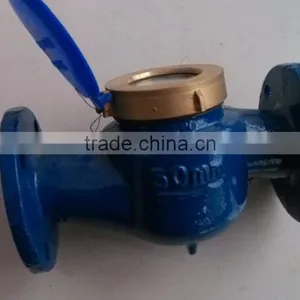

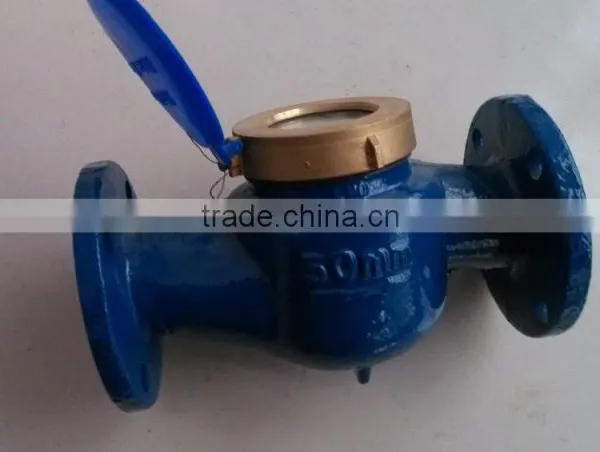

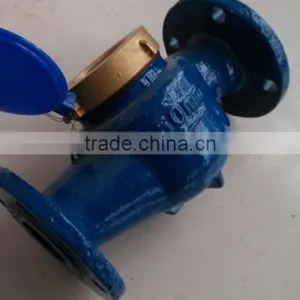

Wet dial mechanical water meter
We (Gaoxiang Water Metert )are professional water meter manufacture for 10 years and we can supplyhigh quality Flanged water meter Woltmann water meterr DN50-300mm with reasonable price ,any comments or needed ,pls feel free to comtact me:
Features;
1.the material is Environment Friendly
2..warranty: 2 years
3.Supply ability:100000 pcs per month
4.Free sample one piece is avaible ( but you need pay to us the sample fee and freight charge first to show the sincerity to coopertae with each other and we will return back the sample fee to you when we order to us
Application:
--Measuring the volume of cold (hot) water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance, register for universal use within this range detachable
without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
WORKING ENVIRONMENT:
Water temperature: 0.1°C~40°C (( 0.1°C~90°C forhot water meter)
Water pressure: ≤1Mpa(1.6MPa forspecial requirement)
MAIN TECHNICAL DATA:
| Type | Size(mm) | Class | Qs overload flow | Qp permanent flow | Qt transition flow | Qmin min flow | Mini reading | Max reading |
| m3/h | m3 | |||||||
| LXLC-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.002 | 999,999 |
| B | 3.0 | 0.45 | 0.002 | 999,999 | ||||
| LXLC-80 | 80 | A | 80 | 40 | 12.0 | 3.2 | 0.002 | 999,999 |
| B | 8.0 | 1.2 | 0.002 | 999,999 | ||||
| LXLC-100 | 100 | A | 120 | 60 | 18.0 | 3.8 | 0.002 | 999,999 |
| B | 12.0 | 1.8 | 0.002 | 999,999 | ||||
| LXLC-150 | 150 | A | 300 | 150 | 45.0 | 12.0 | 0.002 | 999,999 |
| B | 30.0 | 4.5 | 0.002 | 999,999 | ||||
| LXLC-200 | 200 | A | 500 | 250 | 75.0 | 20.0 | 0.002 | 999,999 |
| B | 50.0 | 7.5 | 0.002 | 999,999 | ||||
| LXLC-250 | 250 | A | 800 | 400 | 120.0 | 32.0 | 0.002 | 999,999 |
| B | 80.0 | 12.0 | 0.002 | 999,999 | ||||
| LXLC-300 | 300 | A | 1200 | 600 | 180.0 | 48.0 | 0.002 | 999,999 |
| B | 120.0 | 18.0 | 0.02 | 9,999,999 | ||||
Why you choose us as your supplier?
MOQ:
We will accept your trial order or sample order.
Logo:
Customers could customize their logo or lable on the water meter.
Sample Policy:
We will send samples to you( by TNT or DHL or EMS) for your confirmation within 2-7 days after we come to an agreement.
Delivery time:
Start shipping within 20-45 days after signing the contract.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
List Of Competitive Advantage:
•We are factory, can provide you high quality, best price
•Professional employee and effective management
•Professional trading service
•Prompt delivery
•Good service & reputation
•Large production line
