Specification for Intelligent Water Meter
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Gaoxiang Meter
Model Number:
LXS-MJL-13-40E
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Photoelectric Direct Reading Remote Trabsmission Cold or Hot Water MeterUS$ 20 - 80MOQ: 10 Pieces -
Epoxy Coated Cast Iron Material Turbine WM Water Flow MeterUS$ 44.99 - 99.99MOQ: 100 Pieces
-
Butterfly Brass Ball Valve For Water Meter Pipe LineUS$ 2.99 - 10.99MOQ: 1000 Pieces
-
Mechanism For Water Meter Class C Mechanism For Small Size Wet Dial Water Flow Meter R160US$ 1.39 - 1.59MOQ: 100 Pieces
-
Removeable Woltman Cold Water Meter 50mm-300mmUS$ 44.99 - 99.99MOQ: 100 Pieces
Place of Origin
Shandong, China
Brand Name
Gaoxiang Meter
Model Number
LXS-MJL-13-40E
Specifications
specification for intelligent water meter,brass body ,multi-jet dry dial ,prepaid water meterspecification for intelligent water meter

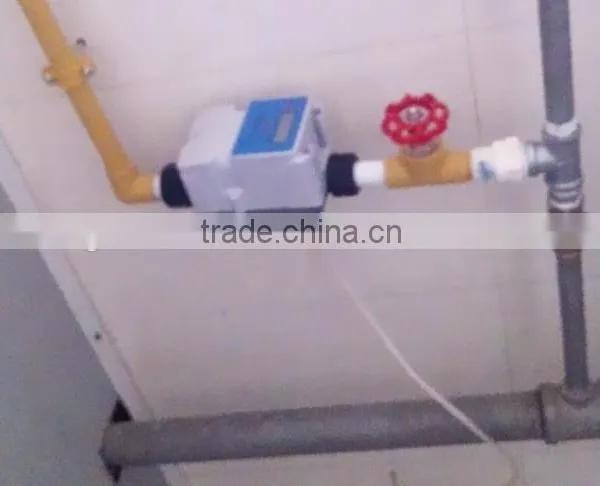

| Working environment: | |
| Indoor installation; | |
| Temperature around 5°C~55 °C; | |
| Relative humidity: less than93%; | |
| Water pressure 0.03~1MPa | |
| Maximum temperature: cold water be 30°C, hot water be 90°C. | |
| 3.6V lithium battery inside | |
| Rtand by Current less than 15 uA | |
| Comply with SJ/T11166-1998 | |
| Electric control valve response time not more than 13s | |
| Mainly function: | |
| 1. Signal collection | |
| High quality double reed pipe, alternate work method, equivalent to two steady state model, which can effectively prevent measurement error lead by vibrate, backwater, interference of outside magnetic field can be detected at the same time,guarantee the mechanical part and electronic part count, if there are any interference of outsidemagnetic field, two dry reed pipe, and at the same time, close valve control part start program, prevent theft of water. | |
| 2. Pre-paid functions: | |
| Automatically booking quantity by the purchase card, valve will be closed when it up to reservation quantity ,realize the payment first; Have a single price or tiered price double function. | |
| 3. Tiered price function: | |
| Water meter charged separately according to presupposed water consumption tiered price. | |
| 4. Hoarding limit function: | |
| It cannot recharge when the sum of balance and recharge amount large than the presupposed figure. | |

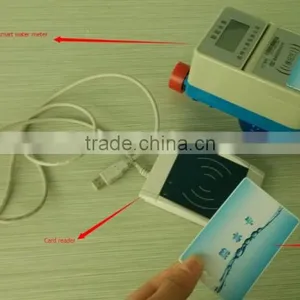

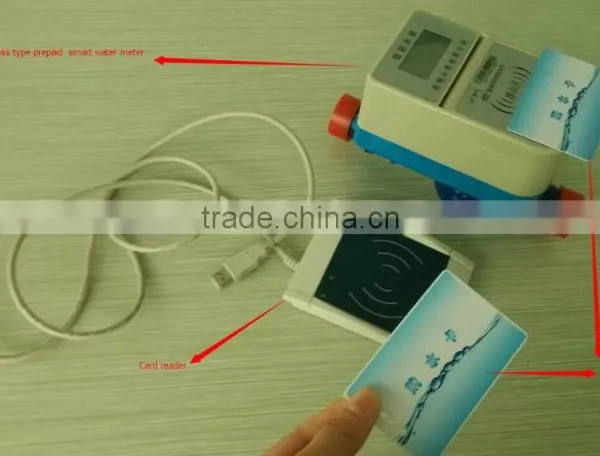

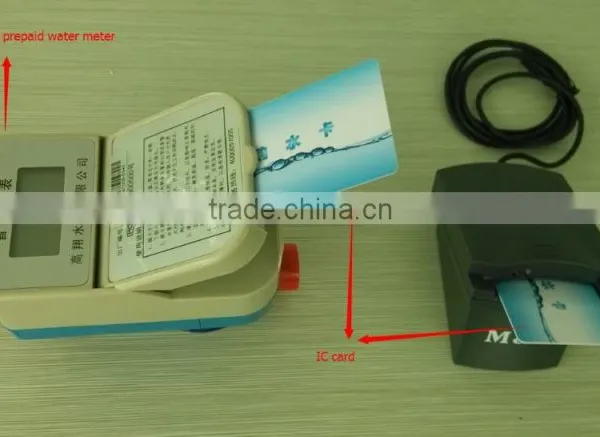

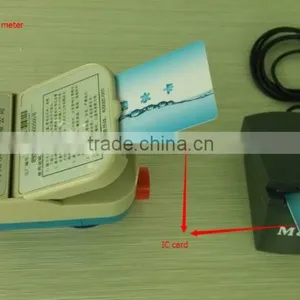

| 5. One IC card comply one meter: | |
| IC card use hardware and software encryption, has the perfect encryption system. User can check the Cumulative water consumption, surplus and the prepaid water quantity etc., and through the IC card to return to the corresponding water meter information to the management system. | |
| 6. Anomaly detection: With the same function like Black box, when strong magnetic interference measurementsignal, it will record the date, then close valve. | |
| 7. Pre-alarm function: According to demand to pre set the alarm, water over draft, when it up to limit figure, it will close valve and remind user to buy water. | |
| 8. External battery replacement function: | |
| Water meter can replacement battery with left/right direction, very easy to replacement in batch(Battery: ER18505M NA). | |
| 9. Regular maintenance of valve: | |
| To avoid the vale cannot normal work because of long time no change, it will open and close one time at Zero in the morning at each 7th , 14th , 21th and 28th . | |
| 10. Figure: | |
| The figure inside this water meter will keep more than 10years. | |
| 11. Ball valve system, its pressure loss is lower than the other structure of the valve, and valve drive system torque is generated in the required torque of the valve itself more than three times, more than 300% of the insurance factorcan prevent because of scale formation, long-term need not, the impurity control the consequences of toomuch. |
| Mainly Parameter: | |||||
| DN | Q3 | Q2 | Q1 | Maximum show figure | Minimum show figure |
| m³/h | m³/h | m³/h | |||
| 15 | 2.5 | Q3/Q1=50, 63, 80, 100, 125, 160 | 99999.9m³ | 0.1m³ | |
| 20 | 4 | Q2/Q1=1.6 | 99999.9m³ | 0.1m³ | |
| 25 | 4 | 99999.9m³ | 0.1m³ | ||
| 25 | 6.3 | 99999.9m³ | 0.1m³ | ||
| Boundary dimension: | |||||
| DN | L | B(W) | H | Connection thread | |
| mm | mm | Mm | mm | Connect pipe | Nut |
| 15 | 165 | 85 | 115 | R1/2 | G3/4B |
| 20 | 195 | 85 | 115 | R3/4 | G1B |
| 25 | 225 | 117 | 143 | R1 | G1 1/4B |
| MOQ: | |
| We will accept your trial order or sample order. | |
| Logo: | |
| Customers could customize their logo or lable on the water meter. | |
| Sample Policy: | |
| We will send samples to you( by TNT or DHL or EMS) for your confirmation within 2-7 days after we come to an agreement. | |
| Delivery time: | |
| Start shipping within 20-45 days after signing the contract. | |
| Payment terms: | |
| L/C, T/T, Western Union, MoneyGram, Paypal. | |
| Shipping: | |
| We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you. | |
| List Of Competitive Advantage: | |
| •We are factory, can provide you high quality, best price | |
| •Professional employee and effective management | |
| •Professional trading service | |
| •Prompt delivery | |
| •Good service & reputation | |
| •Large production line | |
| After Service: | |
| We will make compensate for you if the accident made by us. |
