PGZ1000 Flat plate Automatic Bottom Discharge centrifugal filter Separator
Technical parameters and selection model form
| (Flat Plate Filtration separator) Model Item |
PGZ800 | PGZ1000 | PGZ1250 | |
| SGZ800 | SGZ1000 | SGZ1250 | ||
| Bowl | Diameter(mm) | 800 | 1000 | 1250 |
| High(mm) | 400 | 500 | 630 | |
| Fliter area(m2) | 1.0 | 1.5 | 2.5 | |
| Liquid blocking | 560 | 760 | 870 | |
| plate diameter(mm) | ||||
| Working Volume(L) | 90 | 200 | 390 | |
| Max.feeding capacity(kg) | 135 | 240 | 500 | |
| Rotate Speed(r/min) | 1200 | 1200 | 1000 | |
| Separation factor | 640 | 800 | 700 | |
| Scraper speed | <100 | <100 | <100 | |
| Discharge type | Hydraulic scraper | |||
| Pneumatic scraper | ||||
| Air pressure(Mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | |
| Operating oil pressure(Mpa) | 1-1.2 | 1-1.2 | ||
| Brake mode | Electric braking | |||
| Motor | Model | YB132M-4 | YB160L-6-V1 | YB200L-6-V1 |
| Powde(kw) | 7.5 | 15 | 18.5 | |
| Rotate Speed(r/min) | 1460 | 1460 | 1000 | |
| Oil pump motor | Model | ––– | YB100L-6B5 | YB100L-6B5 |
| Power(kw) | ––– | 1.5 | 1.5 | |
| Rotate Speed(r/min) | ––– | 1000 | 1000 | |
| Weight | 1800 | 3000 | 4500 | |

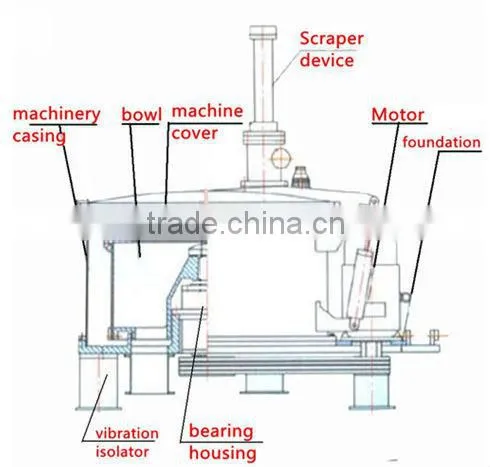

Structure and Principle
Centrifuge under PG flat to the main bowl parts, the scraper drive, mechanical transmission, chassis and other features modular design, so that you can achieve any combination of multi-functional. Scraper drive a hydraulic, pneumatic, manual, etc.. Start with a variable frequency start, electric brakes. Motor through the belt transmission, drive shaft axis of rotation bowl to form a centrifugal force field. Suspension was separated from the top of the feeding tube into the bowl, falls cloth plate, under the action of centrifugal force, threw the bowl wall, the wall of liquid through the bowl filter, filter pore thrown Chassis space within the chassis together through drain pipes discharge, and solid phase retained in the cloth on the inside. For washing, the washing water through the washing tube to join the washing, after dehydration, low-speed rotating bowl, scraper to scrape the solid phase falling through the bottom of the entrance and exit bowl unloading.

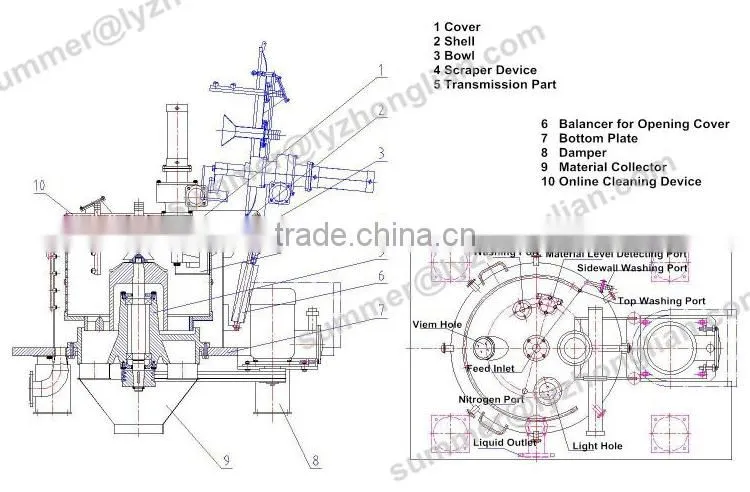

Structure Drawing
Main Feature
PGZ flat bottom discharge mechanical scraper Centrifuge for the flat bottom scraper discharge, intermittent operation, program control of the filter centrifuge. Through advanced PLC programmable controller, frequency conversion governor and brake combination unit, and hydraulic pneumatic, single control center with computer networking. By the hydraulic, electrical control system automatically feeding, separating, washing, dewatering, discharge and other processes, enabling remote operation.
It can be used with particle size 0.05-0.15 mm in the suspension of solid particles separated from the machine no clutch, no brakes tile, especially suitable for thermal sensitivity, the operator should not be close to the separation of materials, fully applicable to explosive, toxic, corrosive industrial field.
The machine has a high degree of automation, large capacity, good separation, running stability, the operation side, etc, can be cleaned from all directions, no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolator types of damping systems to produce the vibration device is completely absorbed, on the basis of the ground and around the equipment without interference, safe and reliable to meet GMP standards.
Application
Widely used in solid-phase particulate suspension for the filtering, flat In addition to general purpose,, especially suitable for density, toxic and harmful, flammable, explosive medium of the liquid separation , for the pharmaceutical, food, chemical , defense and other industries in the area of raw materials, intermediates and finished product liquid-solid separation.

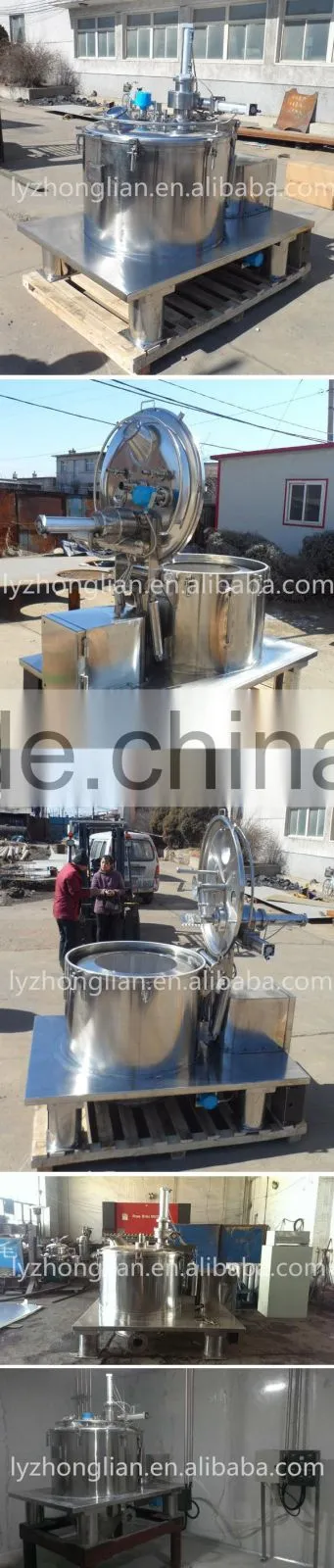

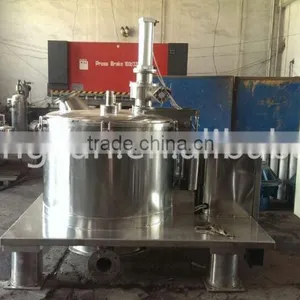

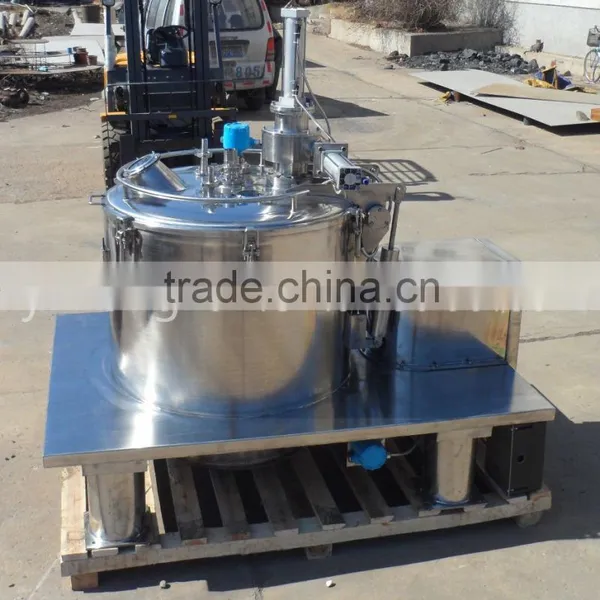

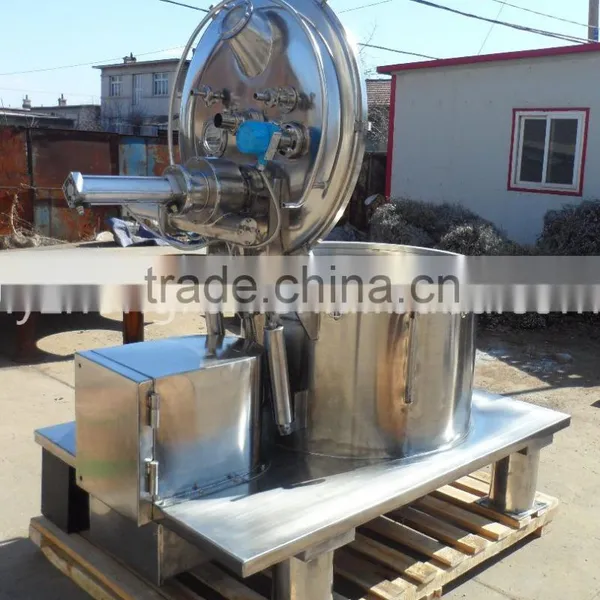

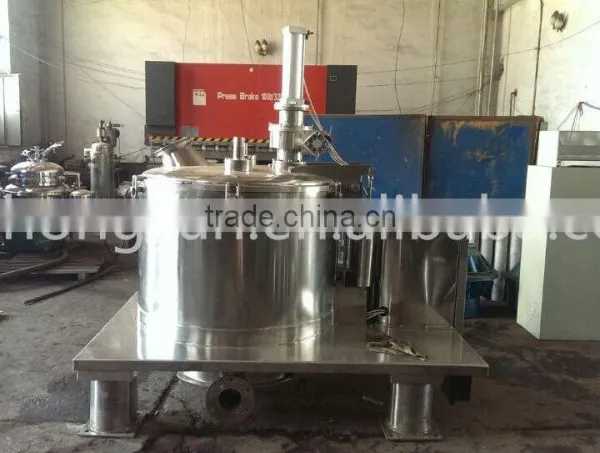

Product Pictures
PGZ1000 basket Centrifuge Packaging: Wooden Package
PGZ1000 basket Centrifuge Shipping: By Sea, By Air and By Train
The Service of PGZ1000 basket Centrifuge Machine:
Technical suppport and Training support
Engineers available to service
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning Province, earliest engaged in the production of centrifugal machinery in China. Zhonglian is specially engaged in
the production of centrifugal equipment and pharmaceutical machinery, owns many years of experience in professional production, enjoys advanced technology and high quality equipment, developed and manufactured multiple hi-tech centrifugal equipment including disc centrifuge, tubular centrifuge, tripod series centrifuge and
flat plate centrifuge, which are widely applied in pharmaceutical, chemical, food, smelting and other industries. Our company is supported and well received by a wide range of users with reliable quality and excellent after-sales service. Our company mapped and improved originally imported TA60 disc separator to perfect the complicated structure of disc separator and better each index to be greatly approved of by users.
