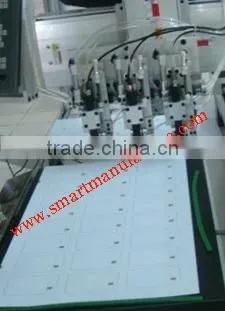

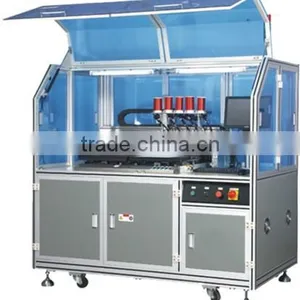

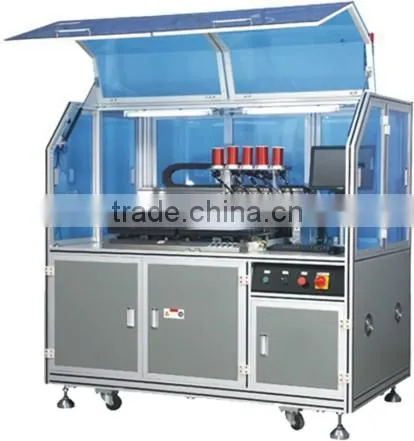

SMNCM-2 Contactless Smart Card Antenna Embedding Machine
US$ 41,667 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SmartManufacture
Model Number:
SMNCM-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMNCM-3 Contactless Smart Card Chip Bonding MachineUS$ 16,667 - 30,000MOQ: 1 Set -
SMNCM-4 Contactless Smart Card Chip Embedding MachineUS$ 16,667 - 25,000MOQ: 1 Set
-
SMCLM-3B PVC Card LaminatorUS$ 8888.00 - 8888.00MOQ: 1 Set
-
SMNCM-1 Contactless Smart Card Hole Punching MachineUS$ 13,333 - 20,000MOQ: 1 Set
-
SMSFL-1 Full Automatic Scratch Card Making MachineUS$ 31,000 - 58,333MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
SmartManufacture
Model Number
SMNCM-2
Specifications
SMNCM-2 Contactless Smart Card Antenna Embedding Machine is used embed antenna on sheet for making RFID smart cards.SMNCM-2 Contactless Smart Card Antenna Embedding Machine adopts the first-class servomotor multi-axial controllers and the first-class 70kHz ultrasonic generator (made in USA). It features high precision and high stability. The machine has higher productivity based on single worktable with speedy embedding heads. It is one of the fastest antenna embedding machines at present in the world.
1. Machine runs stable, wires are well-distributed.
2. Servo motor controls the location.
3. Designed for different plastic sizes and various shapes of antenna.
4. It is easy to load plastic sheet and easy to adjust.
5. PC control with software.
| Embedding Material | PVC, ABS, PET, PETG, Teslin or other mixed plastic materials |
| Embedding Layout | 3*7, 3*8, 3*9, 3*10 |
| Embedding Copper Wire | 0.1mm-0.15mm |
| Embedding Head | 3 heads |
| Embedding Size | double A3 or A3+ or A2 |
| Coiling Space | minimum 0.2mm |
| Ultrasonic Generator | 3units 70KHz |
| Embedding Efficiency | 400mm/second 2000pcs per hour |
| Air Supply | 0.6MPa 55Liter/minute |
| Control Method | PLC, Touch Screen, Servo System |
| Voltage | 380V 50/60Hz |
| Power | 2.5KW |
| Servo Precision | X and Y = 0.0125mm |
| Packing Size | 2000mm*1150mm*1750mm |
| Net/Gross Weight | 550KGS/600KGS |
