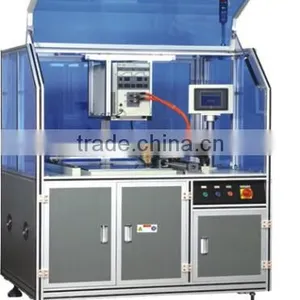

SMNCM-4 Contactless Smart Card Chip Embedding Machine
US$ 16,667 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SmartManufacture
Model Number:
SMNCM-4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMCLM-3B PVC Card LaminatorUS$ 8888.00 - 8888.00MOQ: 1 Set -
SMNCM-1 Contactless Smart Card Hole Punching MachineUS$ 13,333 - 20,000MOQ: 1 Set
-
SMNCM-2 Contactless Smart Card Antenna Embedding MachineUS$ 41,667 - 60,000MOQ: 1 Set
-
SMNCM-3 Contactless Smart Card Chip Bonding MachineUS$ 16,667 - 30,000MOQ: 1 Set
-
SMSFL-1 Full Automatic Scratch Card Making MachineUS$ 31,000 - 58,333MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
SmartManufacture
Model Number
SMNCM-4
Specifications
SMNCM-4 Contactless Smart Card Chip Embedding Machine is used to embed module into plastic sheet, and connect it to the antenna.SMNCM-4 Contactless Smart Card Chip Embedding Machine is used to embed module into plastic sheet, and connect it to the antenna. Machine adopts high-speed servo system and highly stable and precise spot welder with HF contravariant resistance, which is characterized with high precision, high stability and high speed.
1. The system can follow and adjust the ultrasonic parameter automatically during running.
2. There are several programs for different sizes of sheets.
3. Servo motor controls the bonding location
4. Use advanced ultrasonic technology with high electrical current instant bonding.
5. It is easy to load plastic sheet and easy to adjust with alarm system.
| Embedding Material | ABS, PVC, PET, PETG, Teslin or other mixed plastic materials |
| Embedding Layout | 3*7, 3*8, 3*9, 3*10 |
| Embedding Head | 3 heads |
| Embedding Size | Double sheets A3, A3+, A2 |
| Control Method | PLC, Touch Sceen, Servo System |
| Air Supply | 0.6MPa 50Liter/minute |
| Servo Precision | X and Y =0.125mm |
| Working Efficiency | 2500-3000pcs per hour |
| Voltage | 380V 50/60Hz |
| Power | 3KW |
| Packing Size | 1850mm*960mm*1750mm |
| Net/Gross Weight | 800KGS/900KGS |
