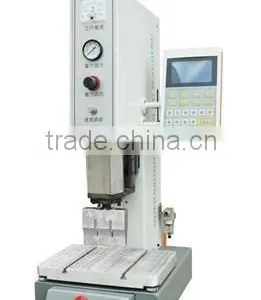

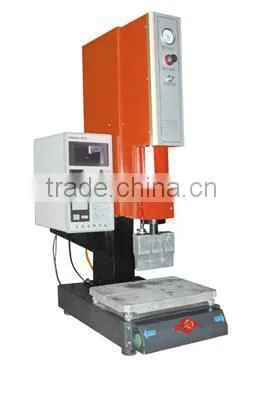

Help CenterAutomatic Frequency Tracking ULTRASONIC PLASTIC WELDING MACHINE JY-1520
Related Products
-
Non-standard Custom Ultrasonic Welding MachineUS$ 2,250 - 3,480MOQ: 1 Set -
Automatic Frequency Tracking Ultrasonic Plastic Welding MachineUS$ 1,800 - 3,800MOQ: 1 Set
-
15k Standard Ultrasonic Welding Machine /Ultrasonic Plastic Welding Machine\welding MachineUS$ 2,250 - 5,080MOQ: 1 Set
-
Ultrasonic Welding Machine for Sale Plastic PVC ABS C20KHz Quality ChoiceUS$ 1,800 - 1,999MOQ: 1 Set
-
*2014 Hot Sale, 15KHZ, 2600W, 3200W Automatic Ultrasonic Welding Machine, CE Approved, China LUS$ 2,200 - 2,500MOQ: 1 Set
Product description:

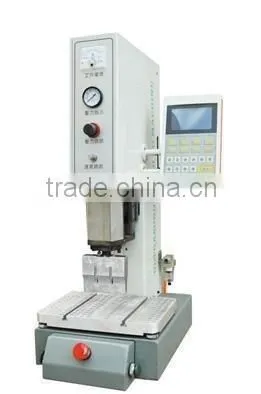

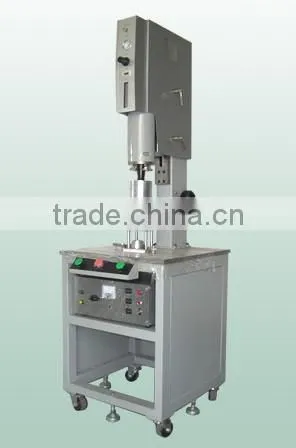

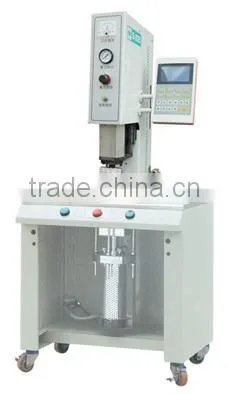

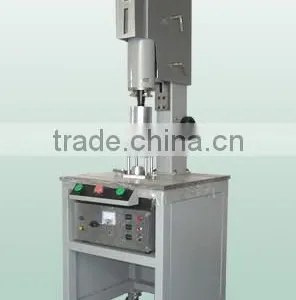

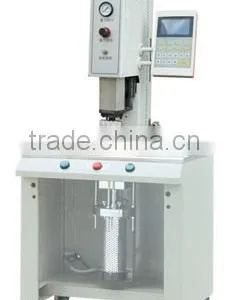

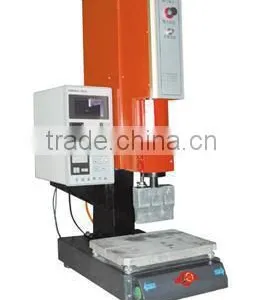

Later E series standard ultrasonic welding machine
Power: 2200 W M frequency: 15 KHZ
Later the whole Taiwan imports
The later electric lift platform, convenient adjustment
Japan's original later piezoelectric ceramic transducer, output strong stability
Later frequency automatic compensation circuit
Later the gravity casting forming, high accuracy, good appearance
The welding head level later adjustable structure, convenient in mold adjustment
Later use stability, welding and high efficiency
A, product introduction
Ultrasound is quick, clean, safe the advantages, such as plastic welding of ontology realization of advanced technology, and all of the workpiece in plastic injection can all the ultrasonic plastic welding machine so as to avoid the due to the binder etc method inconvenience.

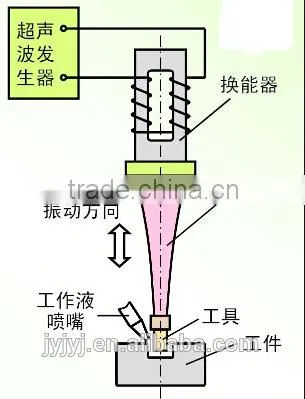

Two, work principle: by the high frequency generator generated 15 ~ 20 KHZ high frequency electric energy, make transducer produce the same frequency (1.5 ~ 20000 times per second) mechanical vibration, after horns are, welding, will head to stay on the welding workpieces vibration, contact friction is lowered produce heat make plastic melt and the union. Welding time less than 1 second.
Three, ultrasonic welding methods:
Four, welding method: in high frequency vibration of ultrasonic welding head in moderate pressure, make two pieces of plastic jointing surface grinding and polishing the heat produced instant molten joints, welding strength can be comparable with ontology, adopting appropriate workpiece and reasonable interface design, can achieve watertight and air, and from the AIDS inconvenience, achieve high efficiency and clean welding.
Ultrasonic welding machine working characteristics
Fast-every time welding time 0.01-9.99 seconds.
Strength-but to bear large pulling force, high pressure.
Quality-not leak, not leak, but air welding.
Economy-don't screw, glue. Reduce artificial and low cost.
Ultrasonic welding machine applicable range

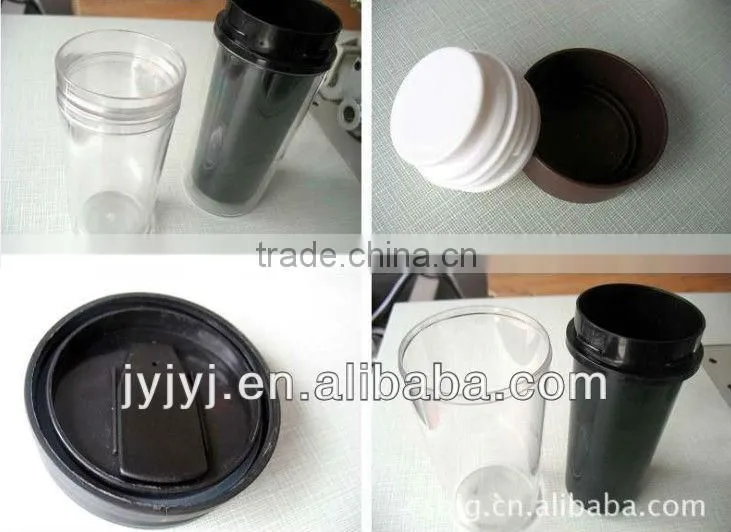

Ultrasonic welding machine widely applied in automobile industry, electronic industry, the medical industry, household electrical appliance industry, non-woven clothing, office supplies, packaging industry, the toy industry, etc. Such as body plastic parts, automobile door, automobile car instrument, lamps, mirror, the shade, inner decoration, filter, reflective material, reflective spike, bumper, lasso, motorcycle with plastic filter, radiator, brake fluid cans, oil, water tank, fuel tanks, cup, exhaust gas purifier, tray air filter board; Plastic electronics: prepay meter electric meter, communication equipment, cordless telephone, mobile phone accessories, following, shell battery, charger, valve controlled seal maintenance lead acid battery, 3 inch floppy disks, U disk, SD card, CF card, USB connectors, bluetooth; Toy stationery: folder, photo album, folding boxes, PP hollow plate, a pen and ink cartridge, selenium drum,; Medical daily: watch, kitchen utensils, oral liquid bottle caps, intravenous drip bottle caps, mobile phone decorations, gold soft brush, daily necessities, health products, children's products, air mattress, and clothes tree, the handle, garden supplies, cabinet ware, the flower is aspersed, gold soft brush, shower head, anti-counterfeiting cap and cosmetics bottle caps, coffee pot, washing machine, air dryer, iron, electric kettle, vacuum cleaners, speaker metal surface cover and civil grille, etc
(1) Surpasses the sound generator and the chassis melts for an integral whole complete machine structure.
(2) Model originalities unconventional , commend to appear both dignified and graceful.
(3) Accords with the man-machine interface that man-machine engineering demands , makes system operation comfortable , convenient and rapid. Stability , reliability that the circuit structure that
(4) Optimizes lifting greatly systematically.
(5) Rapid power and amplitude adjustment way high limits satisfy the bonding technology request.
Operating frequency |
20KHz±450Hz |
Working power |
AC220V±15V 50/60HZ |
Output power |
1600W |
Drive style |
Φ40mm |
Drive gas source |
6~7bar |
The height of rise and drop |
150mm |
Working Trip |
70mm |
weight |
80Kg |
