1. Product Overview

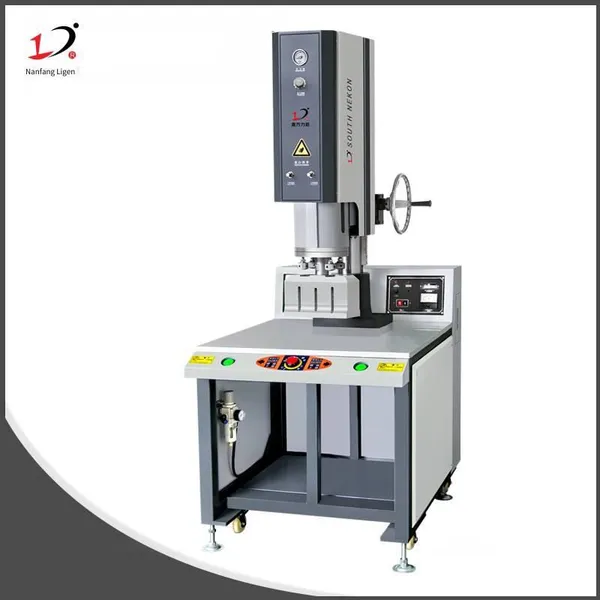

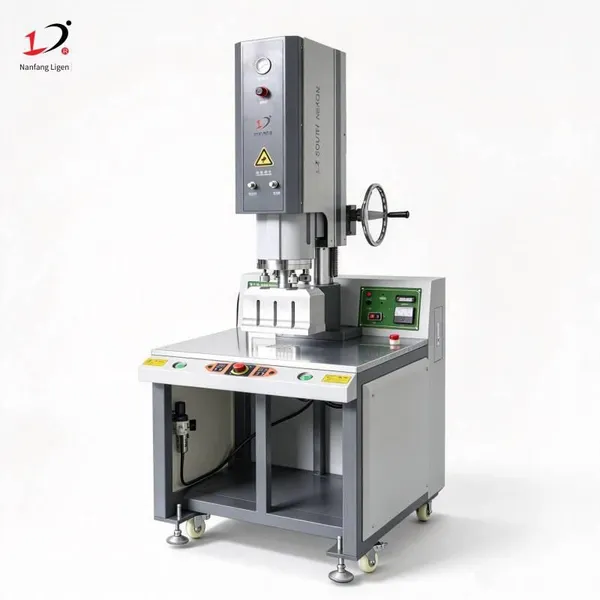

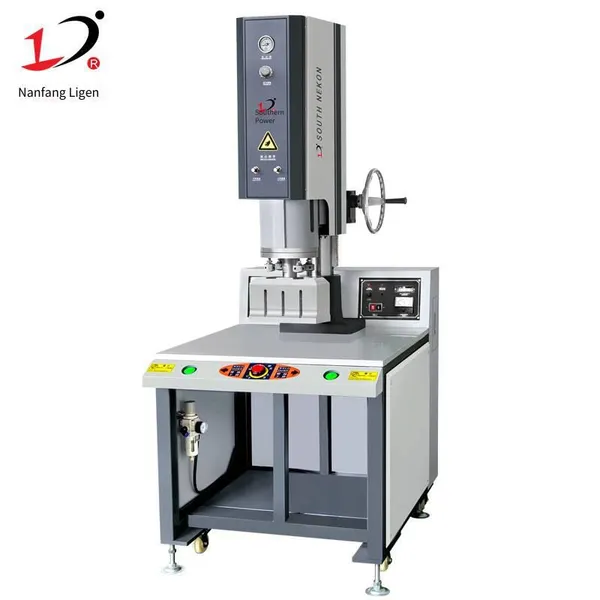

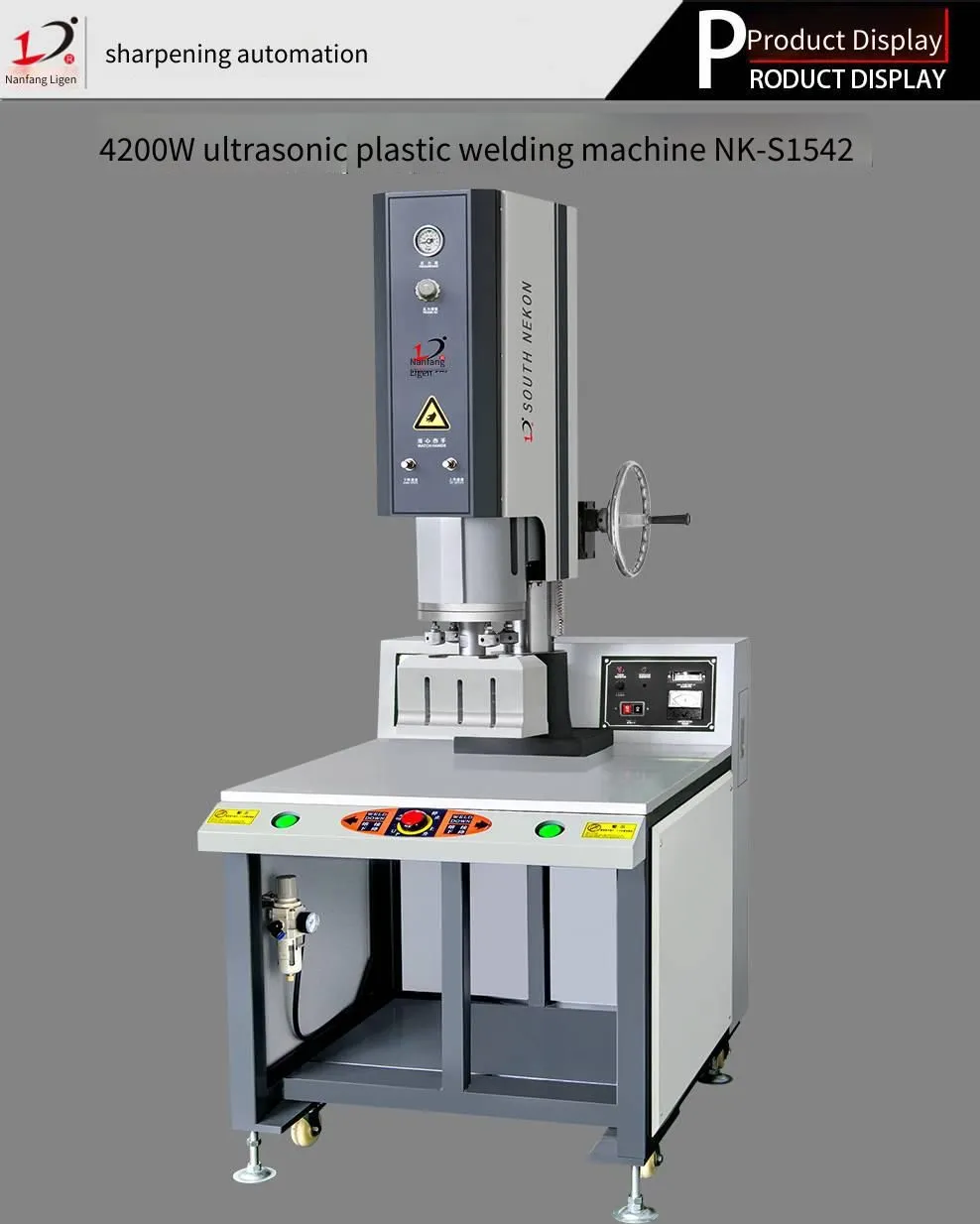

The 15K 4200W ultrasonic plastic welding machine is a high-power plastic welding equipment launched by the Plastic Welding Machine Division of Huizhou Lijing Automation Equipment Co., Ltd. (formerly known as Nanfang Lijing). The equipment transmits ultrasonic waves through the welding head to plastic processing parts, causing intense friction on the joint surfaces of two plastics due to ultrasonic action, and the frictional heat melts the joint surfaces instantly to complete fusion.
The equipment adopts a coaxial direct-pressure design, ensuring balanced pressure application and increasing welding precision. Equipped with a level screw design, the mold is easy to adjust; the welding limit system prevents glue overflow after welding. It has functions such as fusion, insertion, forming, riveting, spot welding, cutting, and stitching. By changing the welding head, one machine can be used for multiple applications. The overall structure is well-designed and the appearance is attractive.
15KHz + 4200W is a high-power ultrasonic welding configuration. Compared with the 15K 2600W model, the 4200W ultrasonic plastic welding machine has higher power, a welding area of up to 300mm, and stronger driving force, making it suitable for welding larger plastic parts, such as electric mosquito swatters, large-diameter impellers, electrical accessories, automotive parts, etc. It is a flagship equipment for batch welding of medium and large plastic products.
2. Six Core Advantages
High-power output, suitable for welding larger plastic products
The 4200W ultrasonic welding machine provides high power output with strong driving force and a welding area of up to 300mm. Compared with the 2600W model, it can weld larger plastic products, offers excellent welding firmness, and supports high pulling force and high pressure requirements.
Coaxial direct-pressure design for high welding precision
The machine adopts a coaxial direct-pressure design with balanced pressure application, ensuring uniform pressure distribution on the contact surface between the welding head and the workpiece, effectively improving welding precision and consistency, and reducing defective products caused by uneven pressure.
Welding limit system to prevent glue overflow
The equipment is equipped with a welding limit system that precisely controls welding depth, preventing glue overflow after welding, giving the product a clean and neat appearance, and reducing post-processing steps.

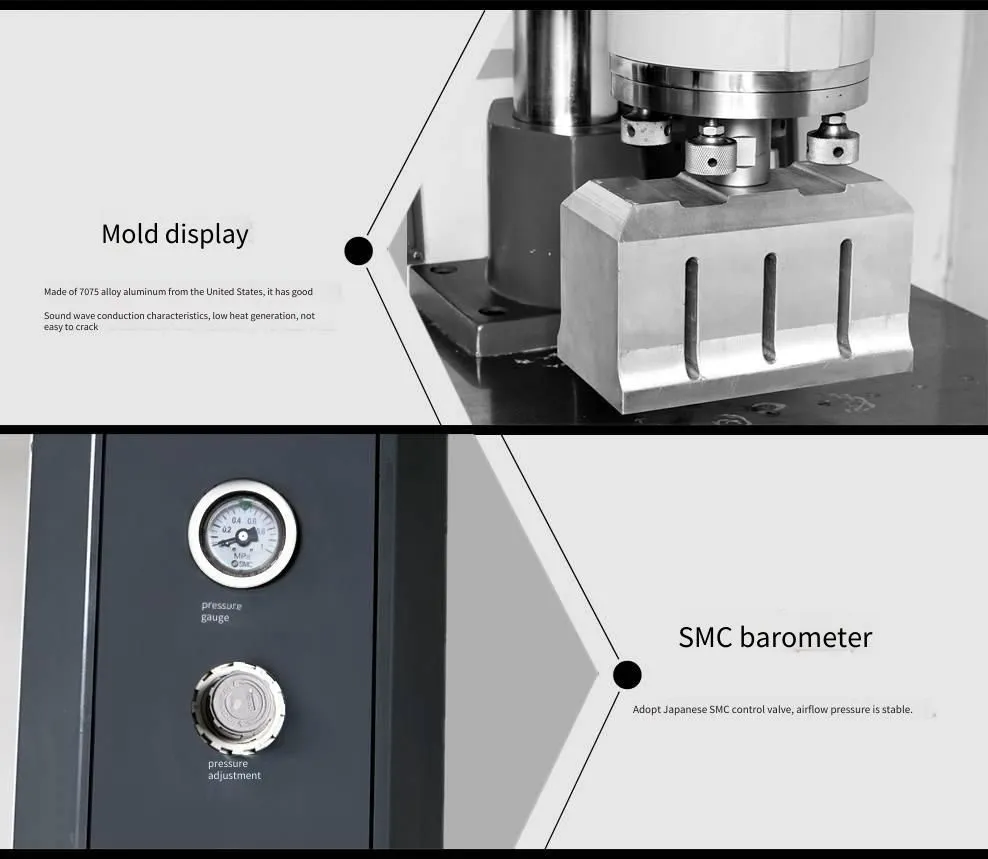

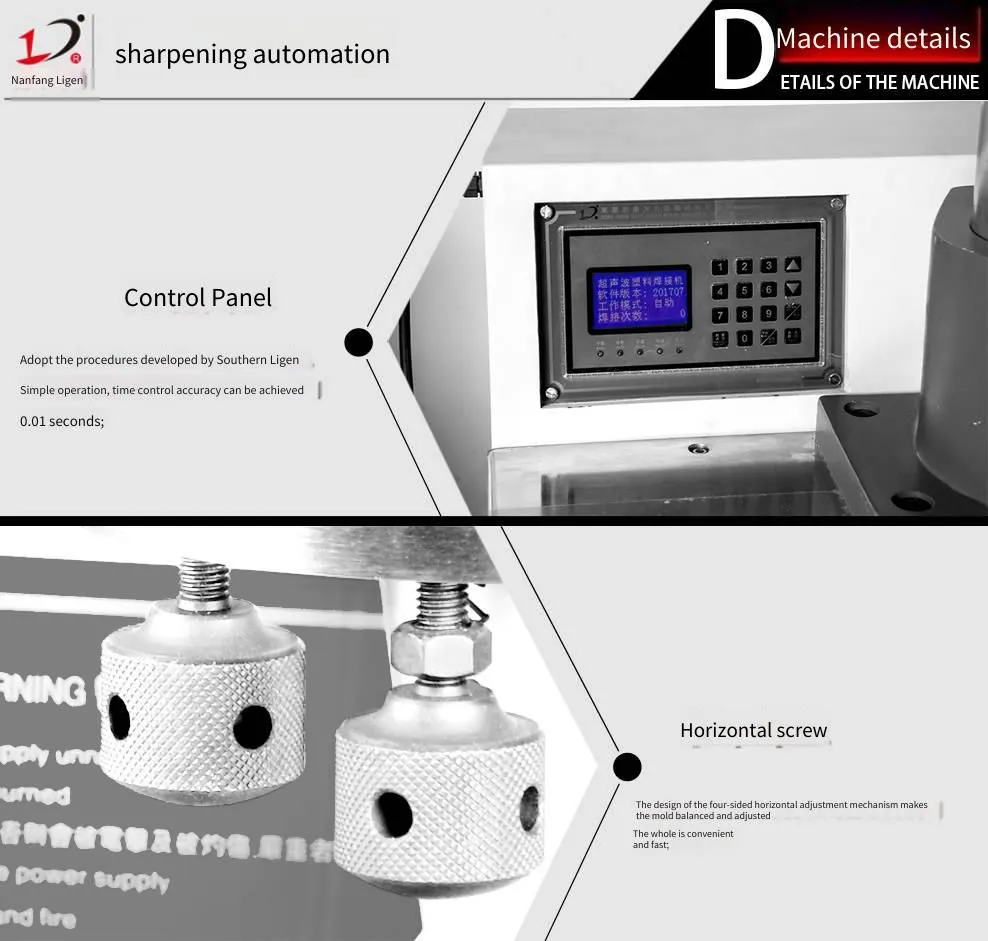

Level screw design for easy mold adjustment
Equipped with a level screw design, mold installation and adjustment are simple and fast, greatly shortening mold change time and improving production efficiency.
One machine with multiple uses; change the welding head for various applications
Reasonable structural design and attractive appearance
The ultrasonic welding machine has functions such as welding, embedding, forming, riveting, spot welding, cutting, and stitching. Changing the welding horn enables one machine to have multiple applications, meeting the welding needs of different products.
The whole machine features a reasonable structural design, scientific layout of functional units, and an elegant and generous appearance. The machine base is stable, ensuring long-term stable operation of the equipment.
3. Working Characteristics
Speed: Each welding time can be adjusted from 0.01 to 9.99 seconds, and most welds can be completed within 0.1-0.5 seconds.
Strength: The welding strength is close to that of the raw material, capable of supporting high tension and high-pressure requirements.
Quality: Can achieve water-tight and air-tight welding requirements without damaging plastic parts during welding.
Economy: Requires no screws or glue, eliminating the need for numerous fixtures and adhesives, reducing labor and saving costs.
4. Applicable Materials
The ultrasonic welding machine is suitable for most common thermoplastic materials:
ABS | PP | PE | PC | PS | PVC | PMMA (Acrylic) | PA (Nylon) | PPS | PBT | PETG | ABS and PC blends
The above are commonly weldable materials. The actual welding effect should be confirmed based on material characteristics and product structure. Samples are welcome for testing.

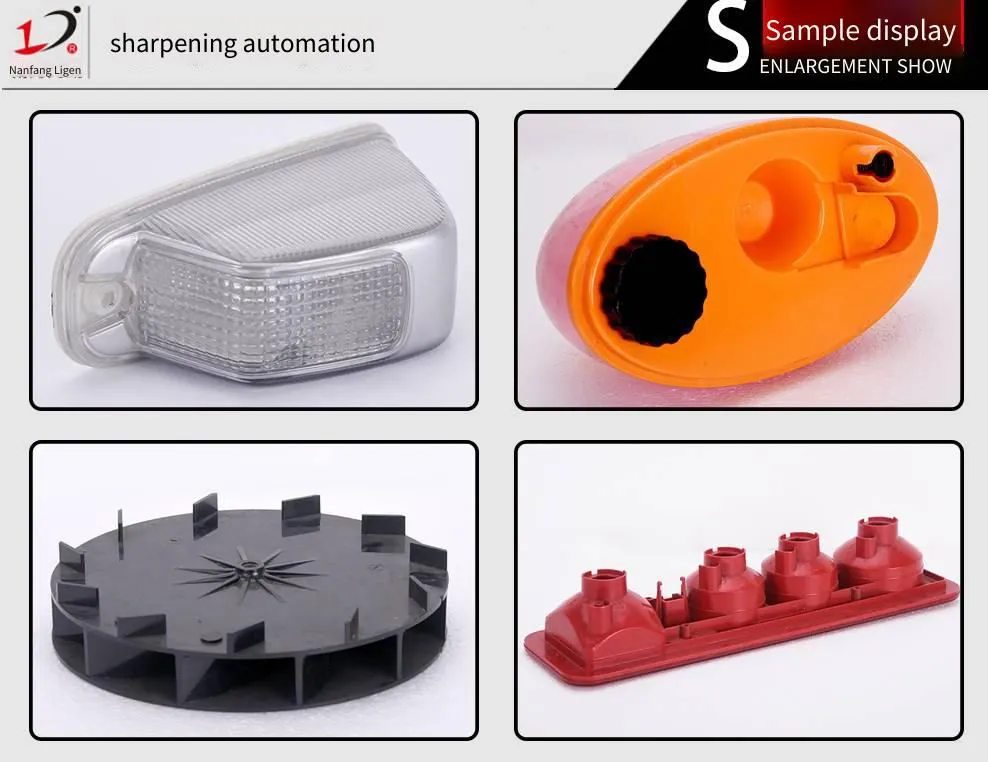

5. Typical Application Scenarios
Household appliances: electric mosquito swatters, large-diameter impellers, electrical accessories, home appliance housings
Automobile manufacturing: car door panels, dashboards, sun visors, headlights, bumpers, interior parts
Electronics: housings for large electronic products, battery cases, chargers, adapters
Home appliance industry: appliance housings, electrical accessories, filter element assemblies
Medical industry: plastic parts for large medical devices
Others: hollow boards, large daily necessities, sports goods
6. 15K 4200W vs 15K 2600W · Comparison Reference
Output power: 15K 2600W is 2600W; 15K 4200W is 4200W
Welding area: 15K 2600W is smaller; 15K 4200W is 300mm
Applicable products: 15K 2600W is suitable for medium-sized plastic parts; 15K 4200W is suitable for larger plastic parts
Power performance: 15K 2600W is powerful; 15K 4200W is more powerful
Typical applications: 15K 2600W is suitable for car door panels and dashboards; 15K 4200W is suitable for electric mosquito swatters, large-diameter impellers, and automotive parts
Equipment weight: both models are 180KG
