Specifications
1.automatic laminating machine2. laminated machine
3.stable and beauty
4.carton size:1000mm-2000mm
5.ISO,CE certificate

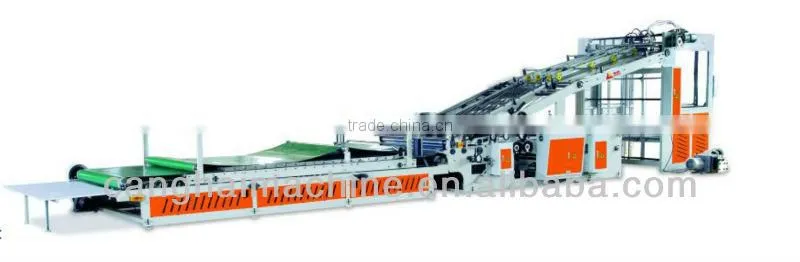

Automatic Flute Laminating Machine
Major feature:
1.The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
6. Roller design scientifically, avoid glue fly out when the speed is high.
7. Pressure rollers adopt one side adjustment, convenient and fast.
8. Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.
Technological parameter:
Model |
TMJ-1300A |
TMJ-1500A |
TMJ-1600A |
Max size of cover face |
1300mmX1100mm |
1500mmX1100mm |
1600mmX1100mm |
Mix size of cover face |
400mmX400mm |
400mmX400mm |
400mmX400mm |
|
Economic speed
|
0-100 piece/min |
0-100 piece/min |
0-100 piece/min |
|
Precision
|
±1.5 |
±1.5 |
±1.5 |
|
Power
|
10kw |
12kw |
12kw |
|
Size
|
10m x 2m x 2.4m |
10m x 2.15m x 2.4m |
10m x 2.15m x 2.4m |
|
Weight
|
About 6T |
About 6T |
About 6T |
1.The whole machine:
2. vacuum suctoon-type feeding system, feeding paper accurately,cycle stackingplanes
,so more efficient
4. Semi-auto bottom feeding unit:
feeding corrugated paper adopt suction automatic feed,feeding speed is automatic synchronous with surface paper
5. front guide position:
adopt elastic face set position,positioning precision. the corrugated paper never pull head.
5. Automatic corrugated board feeding unit
6.Surface board feeding unit.
7.board size:
