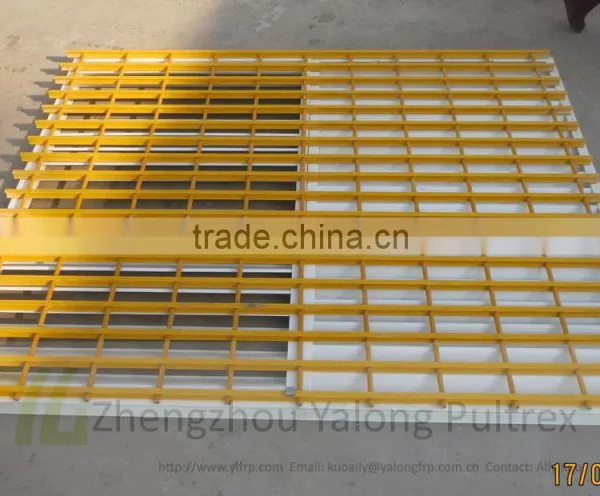

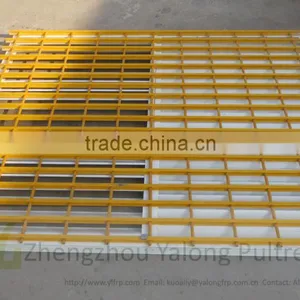

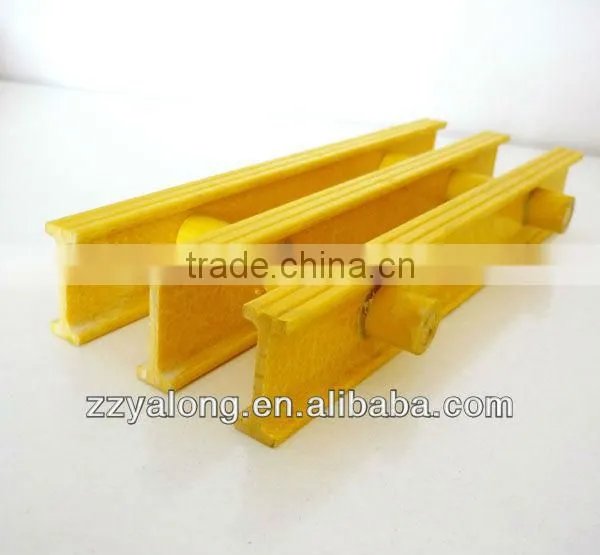

anti-corrosion Pultruded glass fiber reinforced plastic grating, superior load bearing
Pultruded FRP Grating is built with a much stronger process, and can carry a far superior load, and handle much greater impacts than molded grate.
long-term durability, offers the strength of steel at a fraction of the weight, plus it won’t corrode, spark or conduct electricity. Because it weighs less, it’s easier to install. And the color is molded all the way through, so no painting is required.
Yalong fiberglass floor grating specification list:
| Item | high (inches) |
top wide (mm) |
bottom wide (mm) |
top space wide (mm) |
theoretical weight (KG/M2) |
| 25mm I | 1 | 30 | 30 | 13 | 13 |
| 25mm I | 1 | 30 | 30 | 30 | 10 |
| 25mm I | 1 | 15 | 15 | 10 | 17 |
| 25mm I | 1 | 15 | 15 | 23 | 11 |
| 38mm I | 1.5 | 15 | 15 | 10 | 26 |
| 38mm I | 1.5 | 15 | 15 | 15 | 22 |
| 38mm I | 1.5 | 15 | 15 | 23 | 18 |
| 40mm I | 1.6 | 40 | 20 | 27 | 19 |
| 40mm I | 1.6 | 40 | 20 | 40 | 17 |
| 40mm I | 1.6 | 40 | 20 | 60 | 14 |
| 40mm I | 1.6 | 30 | 30 | 20 | 14 |
| 40mm I | 1.6 | 30 | 30 | 30 | 12 |
| 40mm I | 1.6 | 30 | 30 | 45 | 10 |
| 58mm I | 2.2 | 15 | 15 | 10 | 32 |
| 58mm I | 2.2 | 15 | 15 | 15 | 27 |
| 58mm I | 2.2 | 15 | 15 | 23 | 22 |
| 65mm I | 2.5 | 30 | 30 | 20 | 17 |
| 65mm I | 2.5 | 30 | 30 | 30 | 15 |
| 60mm I | 2.5 | 30 | 30 | 45 | 12 |
FRP grating, pultruded frp grating, fiberglass grating, frp pultrusion grating, trench grating, drain grating, grating walkway, platform grating
1-25mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
2-Easy to install;
3-Can be cut at any lengths you need; open area is decided by customer
4-Grating clamps are available.
Pultruded frp grating advantages
- Corrosion Resistant.
- High Strength-to-Weight Ratio.
- Long Service Life.
- Fire Retardant.
- Slip & Impact Resistant.
- Nonconductive.
- Easy to Install & Fabricate.
Fiberglass grating Applications:
Bridge walkways
Platforms
Trench Covers
Walkways
Pedestrian Ramps
Decks and Patios

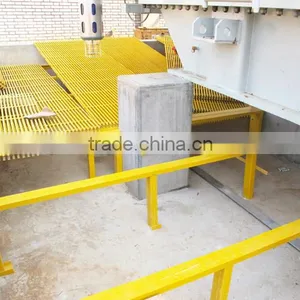

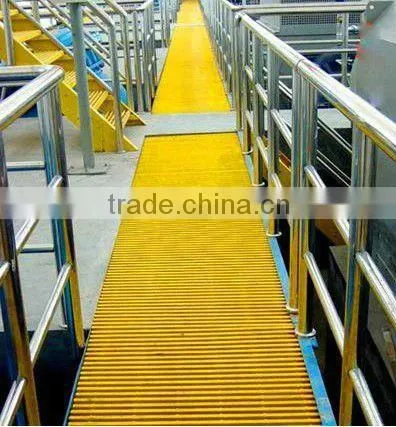

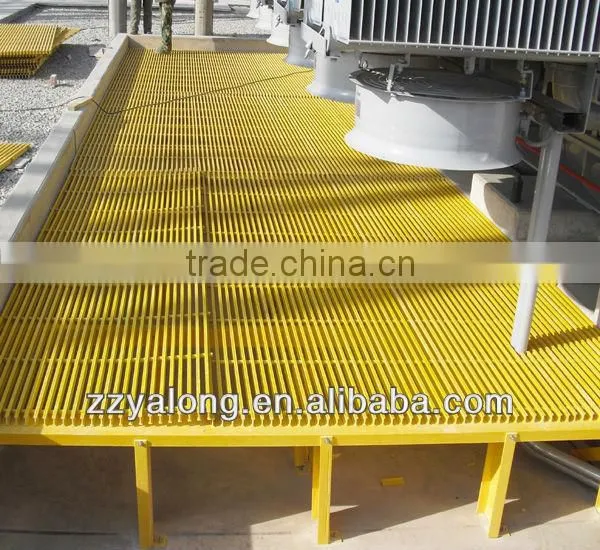

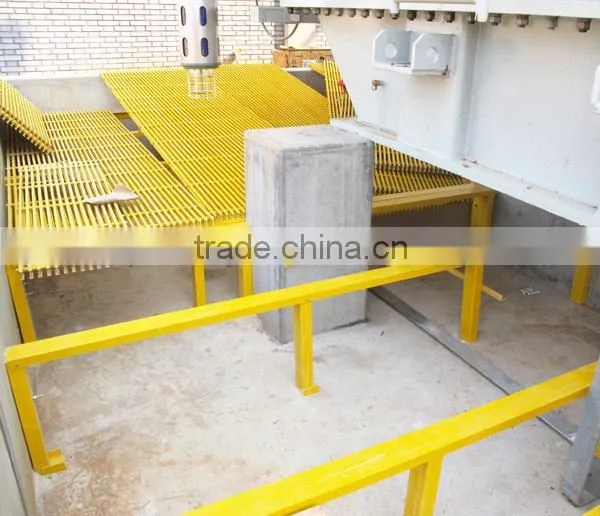

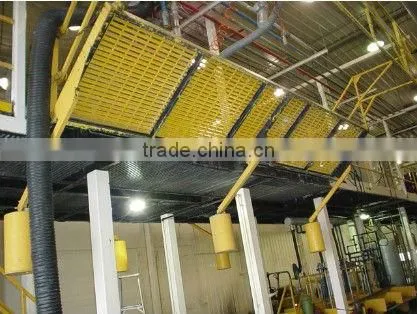

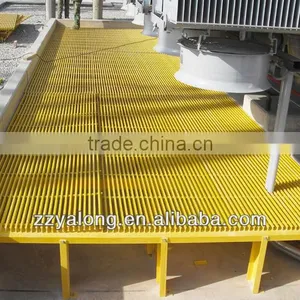

Yalong fiberglass product project photo
Zhengzhou Yalong specialized in frp pultrusion production for 20 years.
Yalong took part in many important state-owned fiberglass project in Aluminum smelter plant, power plant, chemical plant, etc
Yalong offer top quality and timely service, welcome contact for cooperation
