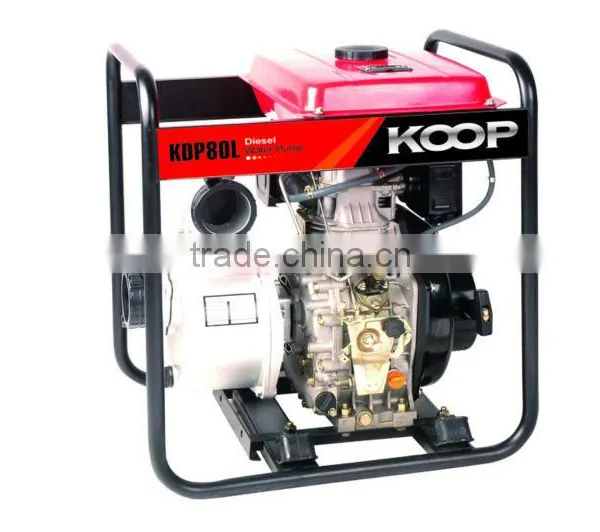

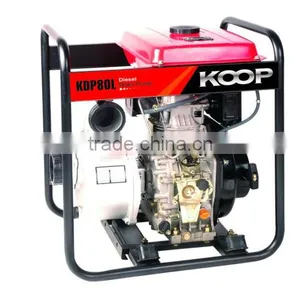

Diesel Water Pump

Diesel Water Pump photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KOOP
Model Number:
KDP80B/L/LE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name KOOP
Model Number KDP80B/L/LE

Specifications

1. Driven by super light KOOP diesel engine
2.Self-suction structure,.strong power,low fuel consumption,big suction structure


Model

KDP80B/L/LE

Suction/discharge port diameter [mm(in)]

80 (3’’)

Cont. capacity (L/min)

1000

Cont. head [m(ft)]

19 (62.1)

Self-priming time (s/m)

120

Max suction head [m(ft)]

8.0 (26.16)

Rotation speed (rpm)

3600

Fuel consumption [g(ml)/kWh]

441 (603)

Overall dimension [mm(in)](L×W×H)

585×460×535

(23×18.1×21.1)

Net weight [kg(lbs)]

52 (114)

Engine type

KD 178F /FE

Rated power [KW(Hp)]

4.0 (5.5)

Rated rotation speed (rpm)

3600

Displacement [cm³(Cu-in)]

296 (18.06)

Starting system

B: small fuel tank; L: large fuel tank; E: electric start
