Specifications
usb 3.0 to hdmi / VGA converterCompliant With USB 2.0/3.0
Compliant With HDMI and VGA Standard
usb 3.0 to hdmi / VGA converter
Compliant With USB 2.0/3.0
Compliant With HDMI and VGA Standard

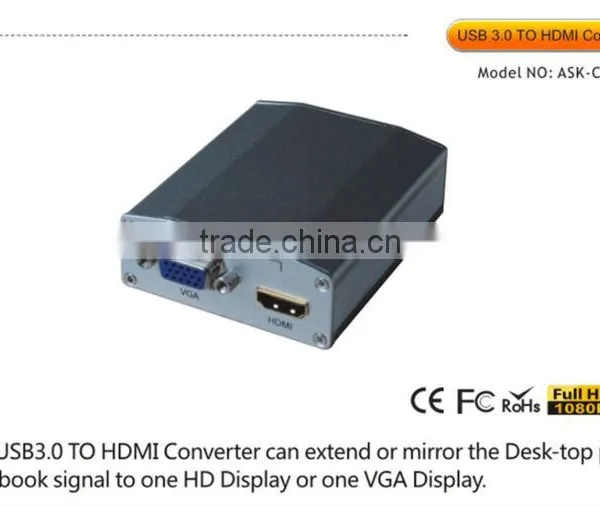

The HDT003 Adapter can extend the pc or notebook signal simultaneously to the other two displays or TVs by USD port. One display can be HDMI input supported, the other display can be VGA supported
FEATURES

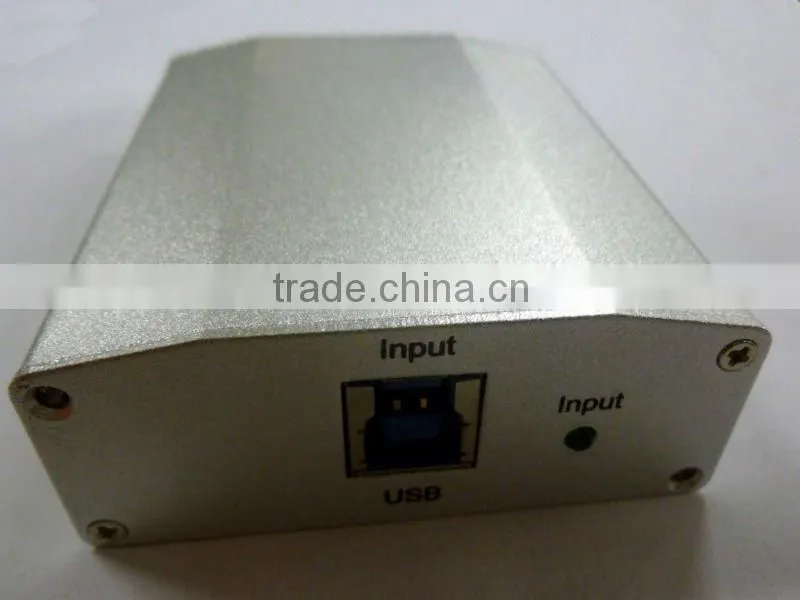

Support USB input for PC or notebook

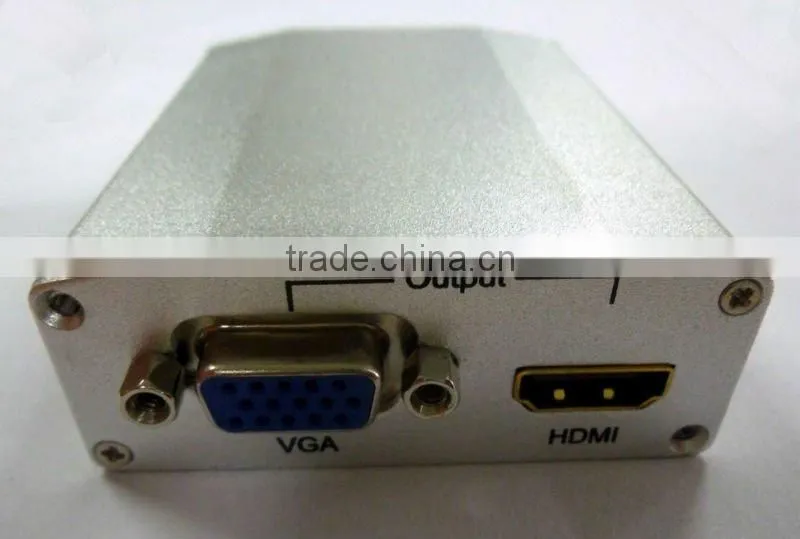

Support Video Output: HDMI Signal, VGA Signal (Support both routes of signal output simultaneously)
Compliant With USB 3.0
Compliant With USB 2.0
Compliant With HDMI and VGA Standard
Supported Function: 1.Primary 2.Extended 3.Mirror
HDMI Output: support up to 1920*1080 resolution and same format as the input signal(fresh rate 60Hz 32 True Deep Color)
HDMI Output Resolution:Support480I,576I,480P,576P,720P,1080I,1080p
Support OS for Windows® XP, Windows® Vista, Windows®7,and Windows® Multi Point Server 2010
Support CRT, LCD and Projector Display.
Led Status Light: The led light will go bright when HD Source& HD Display End
No Loss of Signal
Easy to Install
No need to add power adaptor
SPECIFICATIONS: HDT003
| USB Input | Support USB2.0/3.0 |
| HDMI resolution | Support up to 1920x1080, same format as input |
| VGA Output format | VGA,SVGA,XGA,SXGA,and UXGA |
| Max transmission bandwidth | VGA,SVGA,XGA,SXGA,and UXGA |
| Output DDC signal | 5Volts p-p (TTL) |
| USB Output cable distance | ≤5m USB standard cable |
| HDM Output cable distance | ≤10m AWG26 HDMI standard cable |
| Max working current | 400mA |
| Operating Temperature range Operating Temperature range | (-15 to +55°C) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 90X70X33 (mm) |
| Weight | 155g |
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
- 1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
- 2. All parts will be free from the strong shake, hit, fall.
- 3. Pls do not open the cover and do not touch the inside parts.
New product :USB 2.0/3.0 to HDMI/VGA converter from PC to TV
Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
Serial NO |
Trouble Description |
Cause and Ways to deal with |
2 |
No Picture |
1,Pls to make sure that the TV is on and has been connected with the machine. 2,To check if the signal source is on and well connected. 3,Check the system connection quality. 4,Check if the line is all good quality. 5,Check the cable quality |
3 |
Obscure Picture |
1,To try again to connect the cable to be free from the unsuccessful connection. 2,Check the cable quality |
