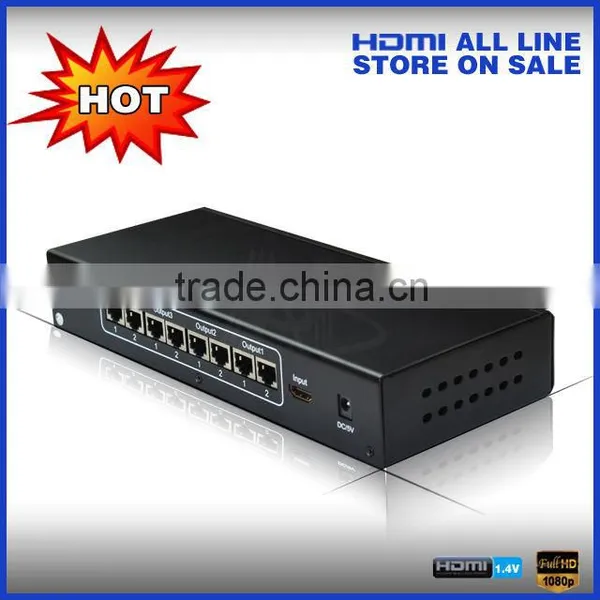

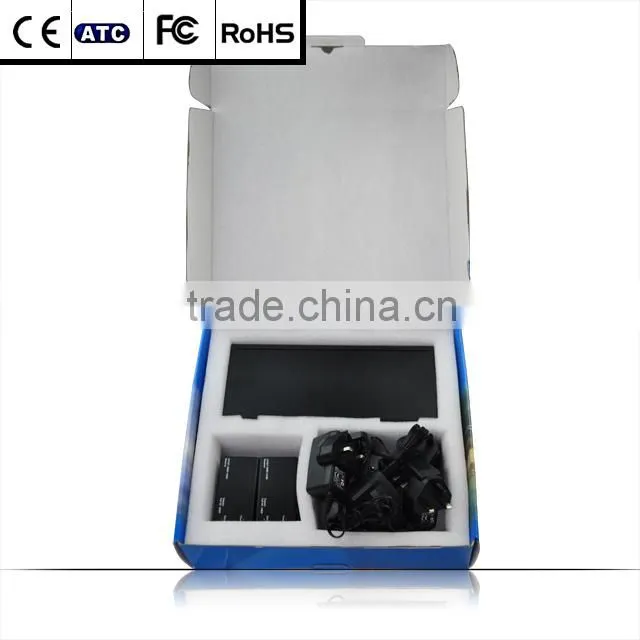

Help CenterHdmi Splitter 1 to 4 by 2 Cat 3D/1080p
Related Products
-
Log Splitter HDMI Log Splitter 1.4v 1*2 HDMI SplitterUS$ 20 - 25MOQ: 50 Sets -
Log Splitter Support 3D 1.4 1 in 4 Out Hdmi SplitterUS$ 28 - 30MOQ: 100 Sets
-
4K x 2K HDMI 1x2 SplitterNegotiableMOQ: 200 Sets
-
HDMI Splitter 1x8 Support 4K X2KNegotiableMOQ: 200 Sets
-
Hdmi Splitter 1 to 16 With 4K*2KNegotiableMOQ: 5 Sets
Specifications
HDMI 1.3 ,3DData transfer speed up to 1080
one hdmi in four hdmi out with cat5e/5/6/7 to extender hdmi signal to 60M
FEATURES
lOne HDMI input signal distribute and extender to four HD Displays by the eight pieces of cat5e/6, The shortest distance up to 60m.
lSupport 3D
lSupport CEC
lSupport video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
lAudio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
lLED Status Light:When power connected, the related led light will go bright.
lUse the standard AWG26 HDMI Cable and CAT5E/6 to make sure it can reach 60m.
lSupport signal retiming
lNo loss of quality
lInstalls in minutes
Need DC5V/2A power supply(TX/RX)
SPECIFICATIONS: HDT002
Length of CAT-6 cable between Rx and TX…..………….…….…….. Minimum of up to 60m
HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output...……. …………………………LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………….…………………………………165MHz
Max baud rate……………….…….………………….….……….………………………4.95Gbps
Input Video signal ………….…………………………...…………………….… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)
Input HDMI cable distance..…... …………………....….…≤15m AWG26 HDMI standard cable
Output HDMI cable distance…………………..…..….…...≤20m AWG26 HDMI standard cable
Max working current(TX)…………………………………………………………………...1000mA
Max working current(RX)………………………………………………..…………………...700mA
Power adapter format(TX/RX)…………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range……..…………….……………..…………………… (-15 to +55°C)
Operating Humidity range………………………….….…..…….5 to 90%RH (No Condensation)
Dimension (TX) …………………………….……………….…………………260X115X45 (mm)
Dimension (RX) …………………………….………………..……...…(82X44X22) (mm) X4pcs
Weight…..………………………………………………………..….……………………..……1300g
