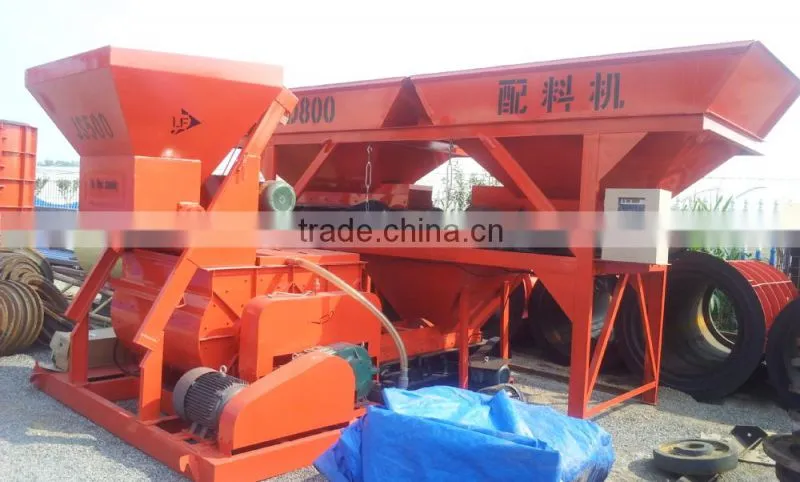

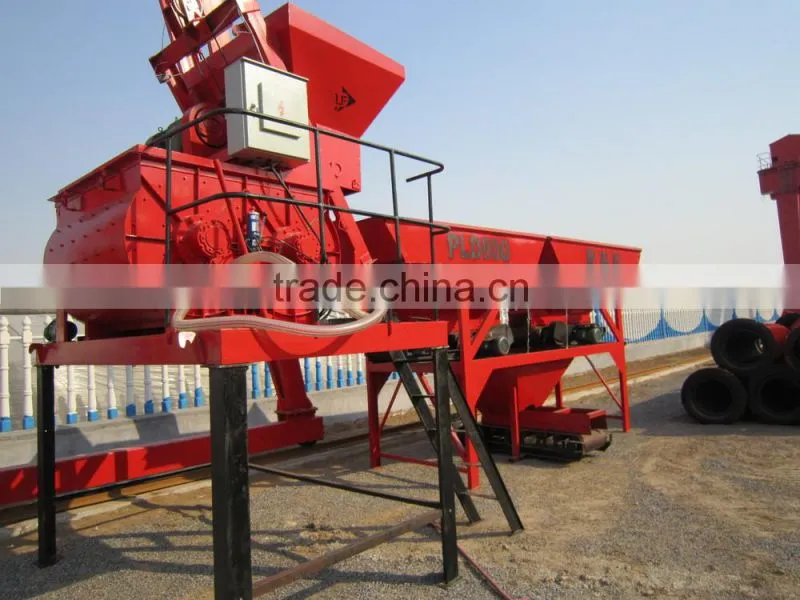

Help CenterPLD 800 Concrete Batching Machine
Related Products
-
Concrete Batching Machine for Mixing StationUS$ 1 - 1,000MOQ: 1 Unit -
Higy Qulity and Low Price Automatic Concrete Batching MachineUS$ 1 - 1,000MOQ: 1 Unit
-
Fully Pneumatic Automatic PLD800 Concrete Batching PlantUS$ 1 - 1,000MOQ: 1 Unit
-
Automatic Control , Best Material & Practical Design of JS500 JS750 Concrete MixerUS$ 1 - 1,000MOQ: 1 Unit
-
High Quality JS500 JS750 Concrete Mixer With Lift Hopper/ Cement MixerUS$ 1 - 10MOQ: 1 Set
Company Information
Qingzhou Haiyu Industry Co., Ltd is a leading manufacturer producing complete set of pre-stressed and reinforced spun concrete electric pole production mchines with passing ISO9001:2008 quality management system certificate.Recent years, adopting new technology to improving main machines to adapt to latest market demand and years of experience in manufacturing psc and rcc concrete pole machines and concrete drainage and well pipe machines, Our company has not only sold our products very well in Asian countries(Cambodia,Laos,Vietnam,Afghanistan,etc.),African countries(Kenyan, Ethiopia,Ghana,Sudan etc) and other countries but also developed and manufactured various kinds of advanced concrete products equipments and molds and building materials machinery equipments. Warmly and Sincerely Welcome To Visit Our Company
Product Description
1 Definition of Concrete Batching Machine

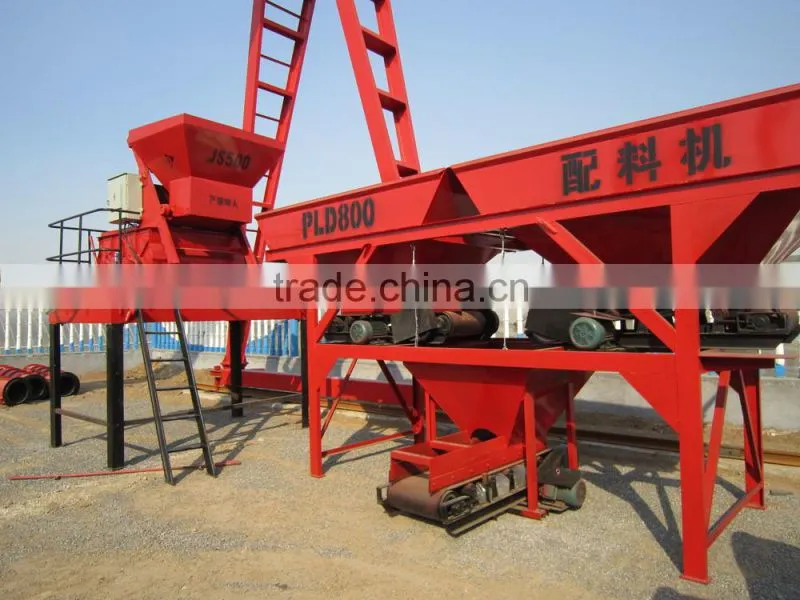

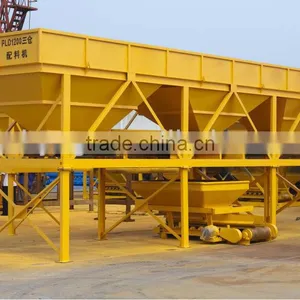

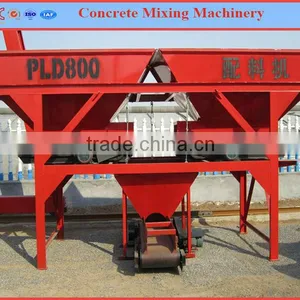

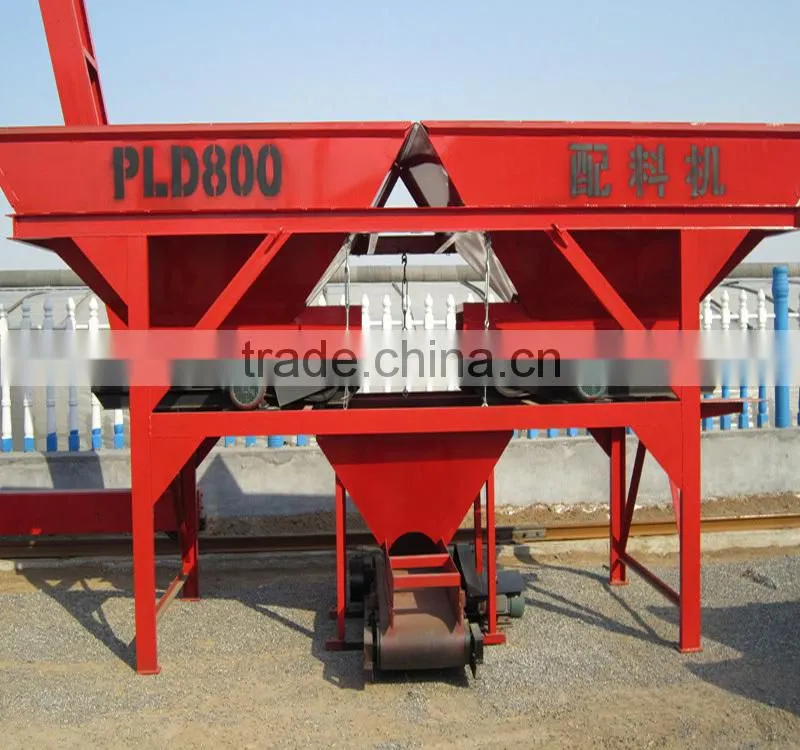

PLD series concrete Batching Machine is a kind of sandstone proportioning and batching device, and it adopts lifting hopper or belt conveyor to supply material to the mixer. Concrete batching machine can mix more than three kinds of material. The aggregate ingredient system may be equipped with 2-5 aggregate storage bins and can automatically finish the batching procedures of materials such as sand, stone, cement, according to demand from customers.

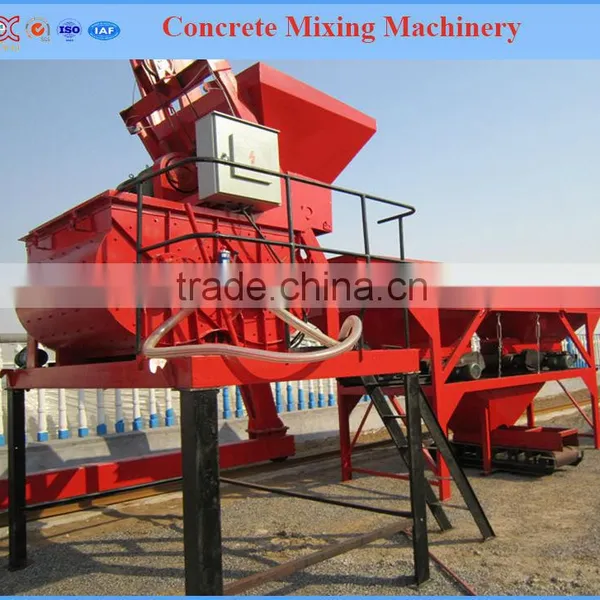

If PLD concrete batching machine combines with various types of mixers and other metering devices, then different types of concrete mixing plants can be formed.
2 Features of Concrete Batching Machine
This series production are designed according to the technical standard of batching system in GB10172Concrete mixing palnt technical condition
This series concrete batching machine adopts electronic weighing, computer control, digital display, wired remote control operation, which will effectively guarantee the mixing accuracy of cement, sand and stone, greatly reduce labor intensity of the feeding part and improve the quality of concrete mixture ratio, etc.. In addition, PLD concrete batching plant has excellent sealing performance and no leakage. So PLD concrete batching plant is an ideal batching equipment for various kinds of concrete mixing plants.
3 Usages of Concrete Batching Machine
PLD concrete batching machine is a new type of mixing machinery, and it suitable for ordinary construction sites, roads, bridges, etc..
Technical Parameter
Item |
PLD400 |
PLD600 |

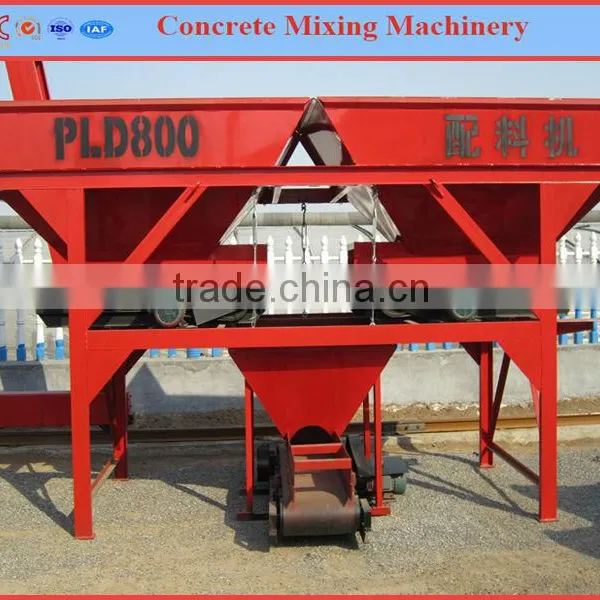

PLD800 |

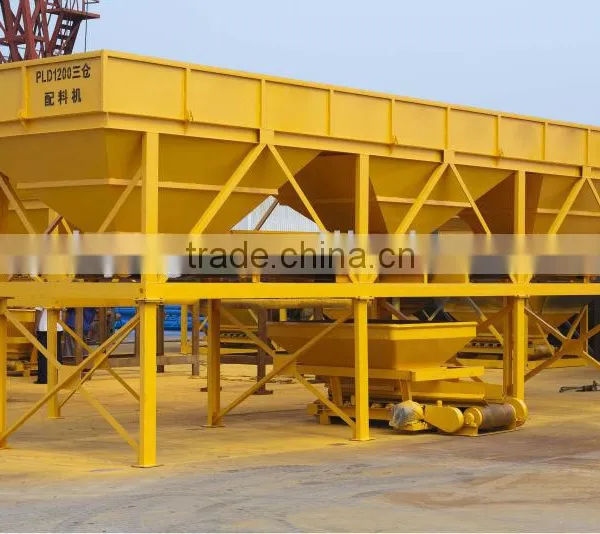

PLD1200 |
PLD1600 |
PLD2400 |
Weighing hopper(m3) |
0.4 |
0.6 |
0.8 |
1.2 |
1.6 |
2.4 |
Storage hopper(m3) |
1.2 |
1.5 |
2 |
2.2 |
3.7 |
12 |
Productivity(m3/h) |
48 |
48 |
48 |
60 |
80 |
120 |
Accuracy(%) |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
Max weigh(kg) |
1200 |
1500 |
1500 |
2000 |
3000 |
4000 |
Aggregate species |
2 |
2 |
2-3 |
2-4 |
2-4 |
3-4 |
Height(mm) |
1900 |
2000 |
3000 |
3000 |
3000 |
3200 |
Belt conveyor speed(m/s) |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.0 |
Power(kw) |
3 X2.2 |
3 X2.2 |
(2-3)X3 |
(2-4)X3 |
(2-4)X3 |
11 |
Weight(kg) |
1300 |
1300 |
2500 |
2900-3900-4900 |
3750-4750-5750 |
8500-10500 |
One hopper dimensions(mm) |
2800×1400× 2300 |
2800×1400× 2300 |
3200×1600× 3000 |
3200×2000×3200 |
3500×2000×3200 |
3250×2840×3900 |
Our Services
1.Complete production line supporting machines and all necessary accessories with high performance and good quality;
2. Free Service of plant structure design and layout plan drawings and other necessary construction drawings and guidance of construction work,office, warehouse etc and related drawings according to customers’ requirements.
3.Installation and commissioning of all production machines as well as the workers training.
We will make every effort to provide different satisfactory solutions for prestressed concrete pole project according to different requirements of our clients all over the world
We promise our customers:
High Qaulity ,
Professional Guidance,
Satisfactory After-Sale Service!
Warmly Welcome To Visit Our Factory
