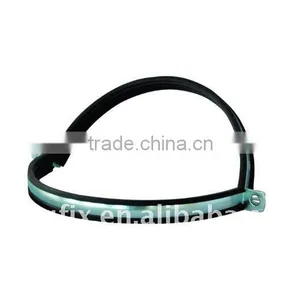

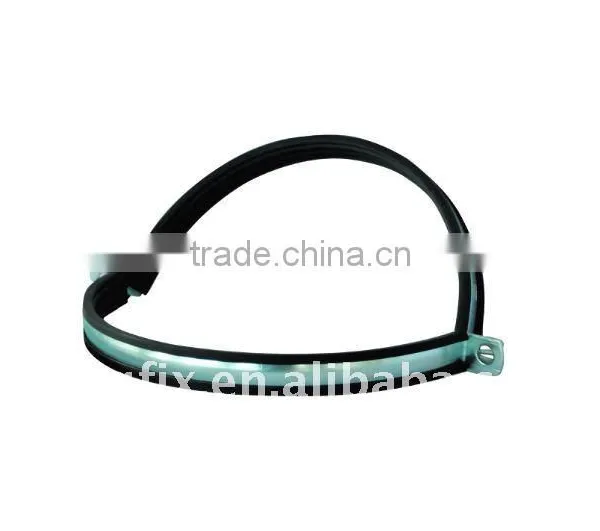

Help CenterHeavy Pipe Clip With Rubber
Negotiable
MOQ: 3000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Super Heavy Pipe Clamp Without RubberNegotiableMOQ: 1000 Pieces -
Rubber Heavy Duty Pipe Clamp With M8+M10 Combi Nut & RubberNegotiableMOQ: 3000 Pieces
-
Two Screw Steel Pipe ClipNegotiableMOQ: 3000 Pieces
-
Screw Pipe FittingNegotiableMOQ: 2000 Pieces
-
Set of M8 Pipe Clamp Without RubberNegotiableMOQ: 2000 Pieces
Place of Origin
Zhejiang, China
Specifications
clampUsed for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
Easy , safe assembly,and good qu
clamp
Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
Easy , safe assembly,and good quality
partial compensation of thermal expansion
Side screws are protected against loss during assemble with the help of plastic washers
| CODE | SIZE | D | S*B | M | A | PCS | carton size |
| 11B18 | 3/8" | 15-19 | 1.5*20 | M6*20 | M8+M10 | 200 | 42*27*13 |
| 11B22 | 1/2" | 20-25 | 1.5*20 | M6*20 | M8+M10 | 200 | 42*27*13 |
| 11B28 | 3/4" | 26-30 | 1.5*20 | M6*20 | M8+M10 | 160 | 42*27*13 |
| 11B35 | 1" | 32-36 | 1.5*20 | M6*20 | M8+M10 | 120 | 42*27*13 |
| 11B40 | 1-1/4" | 38-43 | 1.5*20 | M6*20 | M8+M10 | 120 | 42*27*13 |
| 11B48 | 1-1/2" | 47-51 | 1.5*20 | M6*20 | M8+M10 | 180 | 42*27*25 |
| 11B54 | - | 53-58 | 1.5*20 | M6*20 | M8+M10 | 175 | 42*27*25 |
| 11B60 | 2" | 60-64 | 1.5*20 | M6*20 | M8+M10 | 170 | 42*27*25 |
| 11B70 | - | 68-72 | 1.5*20 | M6*20 | M8+M10 | 110 | 42*27*25 |
| 11B75 | 2-1/2" | 75-80 | 1.5*20 | M6*20 | M8+M10 | 120 | 42*27*25 |
| 11B83 | - | 81-86 | 1.5*20 | M6*20 | M8+M10 | 100 | 42*27*25 |
| 11B90 | 3" | 87-92 | 1.5*20 | M6*20 | M8+M10 | 100 | 42*27*25 |
| 11B100 | 3-1/2 | 99-105 | 2.0*20 | M6*20 | M8+M10 | 100 | 42*27*25 |
| 11B110 | - | 107-112 | 2.0*20 | M6*20 | M8+M10 | 60 | 42*27*25 |
| 11B115 | 4" | 113-118 | 2.0*20 | M6*20 | M8+M10 | 60 | 42*27*25 |
| 11B125 | - | 125-130 | 2.0*20 | M6*20 | M8+M10 | 50 | 42*27*25 |
| 11B140 | 5" | 138-142 | 2.0*20 | M6*20 | M8+M10 | 40 | 42*27*25 |
| 11B160 | 6" | 159-166 | 2.0*20 | M6*20 | M8+M10 | 30 | 42*27*25 |
| 11B200 | 8" | 200-212 | 2.0*20 | M6*20 | M8+M10 | 15 | 42*27*25 |
| 11B220 | 8" | 215-220 | 2.0*20 | M6*20 | M8+M10 | 15 | 42*27*25 |
