Specifications
brick making machine1.good/high quality
2.reasonable price
3.easy to oprate

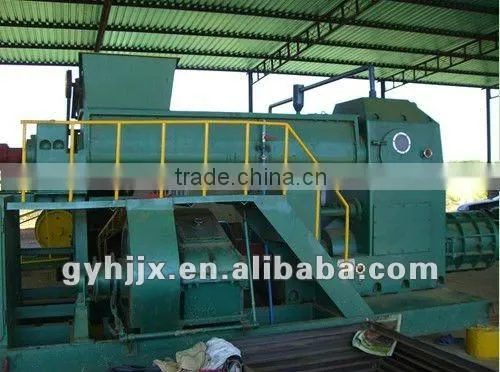

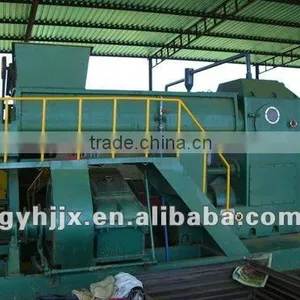

Brick making machine supplier !! HJK-70 Advanced technology & superior service vacuum extruder
This machine is used to produce solid bricks and hollow bricks with great quantities of holes and large section in all size of hole style.It is applicable to many sorts of materials.Its features are novel structure,advanced technology,high extrusive pressure,high production and high vacuum degree.It adopts pneumatic clutch to control.It is sensitive,convenient and reliable.the following is the detailed information of the clay brick making machine:
1.Fired and Energy-saving Clay Brick Machine Supplier:
Clay/Red Brick Making Machine, a type of patented product, is advanced by introducing the first-class technology of the same type of machine, which makes it popular both at home & abroad.
2.Main Use of Fired and Energy-saving Clay Brick Machine Supplier:
The machine applies to clay, shale, coal gangue, fly ash, slag, mountain mud, silt, etc. as raw materials to carry out a strong mixing, vacuum processing, and then the screw auger extrusion system to produce provisions cross-section of ordinary solid bricks, hollow bricks, and other products.
3. Features of Fired and Energy-saving Clay Brick Machine Supplier:
The trowel of this machine uses wear-resistant metallization technology; mixer shaft in above stage, main shaft of trowel and the body of machine are worked over by the aging, quenching and tempering; gears of reducer are hard tooth surfaces; clutch adopts screw press patented technology, which improves the service life of our equipments. At the same time, with reasonable design, compact structure, this machine can operate stably without having to install anchor bolt and greatly reduce the power consumption in the operating process due to shave. Utilizing the equipment and technologies can make the waste profitable as well as saving energy with obvious economic and social benefits.
Details:
1. Structure: all steel structure. it is made by high quality steel plate welding;
2. Suitable range: the small brickyard or the area which is lack of electric power;
3. Extrusion pressure: 3.0MPa, it can make both solid and hollow brick;
4. Control: adopts pneumatic clutch;
5. Main axle techniques: Quenching, tempering, the suppression experiment, so strengthen main axle's steel and toughness.
6. Rack techniques: whole welding and overall plane processing, these can make better for the machines' concentrically.
7. Techniques of squeeze out cylinder and vacuum chamber: the whole processing, quenching processing, these can increase the toughness and extent complete machine life.
8. Vacuum chamber: adopts the funnel shape, it can pull out the vacuum fatly.
9. Reamer techniques: adopts the high chromium casting, quenching processing, the service life reaches , it is better than the ordinary spray coating craft.
Technology data of brick making machine :
Yield |
Block/h |
18000-22000 |
Reamer Diameter |
mm |
700 |
Extrusion Pressure |
Mpa |
4.0 |
Vacuum Degree |
Mpa |
92 % |
Motor Power |
Kw |
250+90 |
Pictures:
