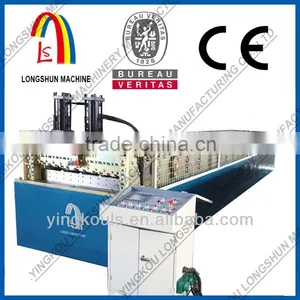

Aluminium roofing sheet making machine
Main Parts
* Manual Decioler
* Roll Forming System
* Hydraulic Cutting
* Hydraulic Station
* PLC Control System
* Run-out Table
Working :
Decoiler--- Feeding---- Roll Forming ---- Cutting ---- Run out table
Parameters :
No. |
Spcification |
|
1 |
suitable material |
Color Steel plate, galvanized sheet |
2 |
Feeding width |
1000mm//1200mm/1250mm or customized |
3 |
Rows of rollers |
16rows |
4 |
Main power |
4kw |
5 |
Hydraulic power |
4kw |
6 |
Thickness of raw material |
0.3-1.0mm |
7 |
Transportation system |
Chain transportation |
8 |
Thickness of chain |
1.2 inches |
9 |
Effective Width |
Customized |
10 |
Out diameter of shaft |
80mm (solid shaft) |
11 |
Material of shaft |
45# steel forged by the Carbon at high temperature |
12 |
Roller material |
40Cr steel polished and coated with chrome HRC55-60° |
13 |
Shear mould |
Cr12 |
14 |
Voltage |
380V 50Hz/60Hz 3phases |
15 |
Control system |
PLC Frequency Control System with touch screen |
16 |
Toal Weight |
7 tons |
Machine types
Types |
Input Width |
Output width |
Plate Thickness |
LS-1250-1100 |
1250mm |
1100mm |
0.4-0.8mm |
LS-1200-1000 |
1200mm |
1000mm |
0.4-0.8mm |
LS-1000-860 |
1000mm |
860mm |
0.4-0.8mm |
LS-1000-840 |
1000mm |
840mm |
0.4-0.8mm |
LS-1000-828 |
1000mm |
828mm |
0.4-0.8mm |
LS-1000-828-25 |
1000mm |
828mm |
0.4-0.8mm |
LS-1000-800-35 |
1000mm |
800mm |
0.4-0.8mm |
LS-1000-800-33 |
1000mm |
800mm |
0.4-0.8mm |
LS-1000-820 |
1000mm |
820mm |
0.4-0.8mm |
