Help CenterLS-900 Double Roll Froming Machine Building Penal
Related Products
-
Aluminium Roofing Sheets Machines PricesUS$ 10,000 - 60,000MOQ: 1 Set -
Color Plate Sheet Double Layer Roof Glazed Tile Machine for SaleUS$ 8,900 - 19,860MOQ: 1 Set
-
Color Plate Sheet Double Layer Roof Glazed Tile Machine Chinese ManufactorUS$ 8,900 - 19,860MOQ: 1 Set
-
Color Plate Double Layer Roof Tile Sheet Roll Forming MachineUS$ 8,900 - 19,860MOQ: 1 Set
-
Double Layer2 Designs One Roll Froming MachineUS$ 8,900 - 19,860MOQ: 1 Set
Glazed Tile Sheet Forming machineCircular Arc Glazed Roof Tile Cold Roll Forming machine
Parameters of the machine :
No. |
Spc. |
|
1 |
suitable material |
Color Steel plate, galvanized sheet |
2 |
Feeding width |
1000mm |
3 |
Rows of rollers |
16 rows |
4 |
Main power |
5.5kw |
5 |
Hydraulic power |
4kw |
6 |
Thickness of raw material |
0.3-1.0mm |
7 |
Transportation system |
Chain transportation |
8 |
Thickness of chain |
1.2 inches |
9 |
Effective Width |
860mm |
10 |
Out diameter of shaft |
80mm (solid shaft) |
11 |
Material of shaft |
45# steel forged by the Carbon at high temperature |
12 |
Roller material |
40Cr steel polished and coated with chrome HRC55-60° |
13 |
Shear mould |
Cr12 |
14 |
Voltage |
380V 50Hz/60Hz 3phases |
15 |
Control system |
PLC Frequency Control System with touch screen |
16 |
Total Weight |
7 tons |

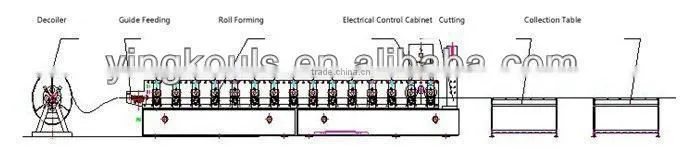

Machine Components:
De-coiler |
1 set |
Forming machine |
1 set |
Production support table |
1 set |
The model can be customized according to the requirements,
such as input width, output width,as well as corrugated shape.
Installation and training:
Ifyou come to our factory for visiting and checking, we could teach you how to install and operate the machine hand
by hand, if you do not plan to come to our factory, we will send the user manual and video to show you how to install
and operate.If you need our engineer and technician for local installation and we could go to your place also, but you
need to pay the return tickets and accommodations in your place.
We demand of ourselves the highest mechanical standard. Our products
and our process are excellently qualified.we are sure that you will be more
than satisfied to use our products or to establish a long term business
relationship with us.
Payment terms: 30%TT in advance, 70%-the balance should be paid before loading.
Delivery time: 15 days after receiving the 30% advance payment.
Guarantee period: 18 months service for free, paid service for the whole machine life.
