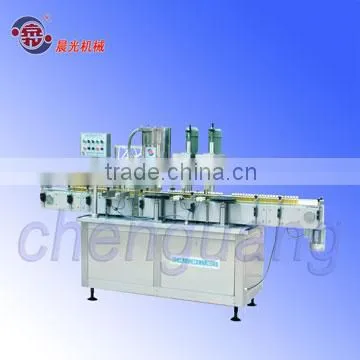

Technical performance:
This machine can realize filling, cap-trimming and cap-screwwing at the same time.It is suitable for the filling of water aqua and non-foam liquid within chemical,daily chemical,cosmetic,food,medicine and pesticide industry etc.
This machine has simple structure, convenient operation. It is an economic and practical integration machine.
Performance advantages:
1. Control panel----Adopting traditional control plate knob controls,simple control plate,safe and reliable.
2.Filling way----Diving filling.
3.Feeding way----Bottom feeding,without workbin.
4. Electrical elements----Adopting international famous brand,ensuring the machines safety reliability and high precision.
5. Machinery elements----The parts contacted with the material adopt 316 high-quality stainless steel and non-poisionous and anticorrosive serve PTFE hose,the other parts use the 304 high-class stainless steel.
6. Maintance condition----This machine accords to the GMP requirements,easy disassemble and clean.
7. .Changing specification: Just by simple adjusting when changing filling specification.
Technical parameters:
1.Filling head:4 heads(4/6 heads can be selected)
2.Capping head:2 heads
3.Filling capacity:20ml(made to order according to customers requirements)
4.Power: 220V/380V
5.Suitable bottle diameter: 20mm-50mm
6.Filling error: ≤±1%
7.Production speed: ≤4000 bottles/hour(water for test)
8.Overall sizes: 2000mm × 900mm × 1600mm
9.Air requirements:stable 0.55Mpa-0.65Mpa air.
10.Machine weight: 300 kg
