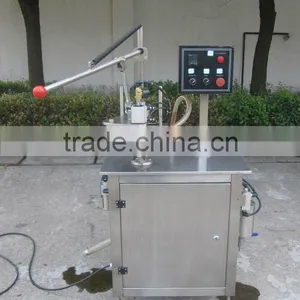

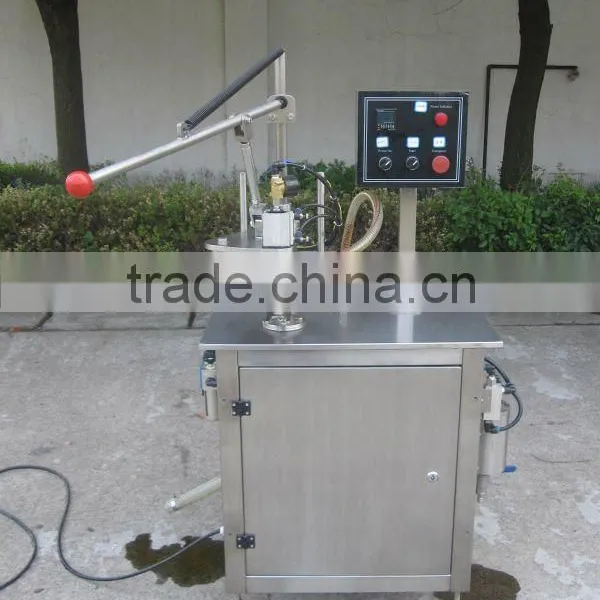

Help CenterSemi Bag in Box Filling Machine and Bottle Filling Machine ( BIB Filling and Capping Machine)
Related Products
-
24 Heads Bottle Toilet Water Filling MachineNegotiableMOQ: 1 Set -
0.5L ~ 20L Bottle Filling MachineNegotiableMOQ: 1 Set
-
CCG1000-16B Automatic Piston Filling MachineUS$ 24,000 - 27,000MOQ: 1 Set
-
50ml-250L Automatic Cooking Oil Filling MachinesUS$ 2,000 - 40,000MOQ: 1 Set
-
20ml-250L(20-100ml,50-500ml,100-1000ml,1-5L,5-30L,50-250L) Automatic Cooking Oil Fillling MachineUS$ 10,000 - 40,000MOQ: 1 Set
Specifications
semi filling machine1.filling in bag in box & filling in bottles,bag capping
2.flowmeter filling,high filling precision
The bag-in-box filling machine is designed for one of our customer to fill 10L /20L oil in bag-in-box. Different from other BIB FILLING MACHINE, it aslo can fill liquid in bottles.

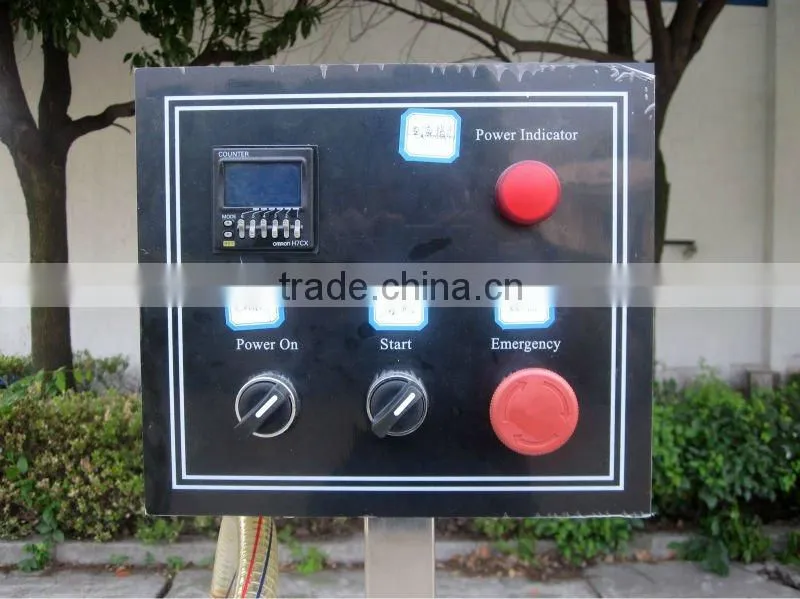

It uses Omron counter and the flowmeter to control the quantity of material, the filling precision is much than traditional cylinder filling machines. It can be widely used in bag-in-box filling applications for such liquid materials as wine, edible oil, fruit juice, additives, milk, syrup, alcoholic beverages.
Main technical parameter:
Filling range |
500ml-50L |
Filling precision |
±0.3% |
Filling speed |
220-240 bags/hour (when filling 3L bags) |
200-220 bags/hour (when filling 5L bags) | |
Pressure at the liquid material inlet |
≤0.4-0.6 Mpa |
Power |
≤0.38 KW |
Supply voltage |
AC220V/50Hz±10% |
Air consumption |
0.2m3/min |
Operating pressure |
0.4-0.6 Mpa |
