Main Characteristics:
1. This machine adopts atmospheric pressure fixed channel and can achieve filling range 40ml - 1000ml by controling filling time. It's wide used in Food, Chemical, Medical, Cosmetic, Agrochemical industries, common applied to till Cooling Oil, Pesticide, drink waters etc.

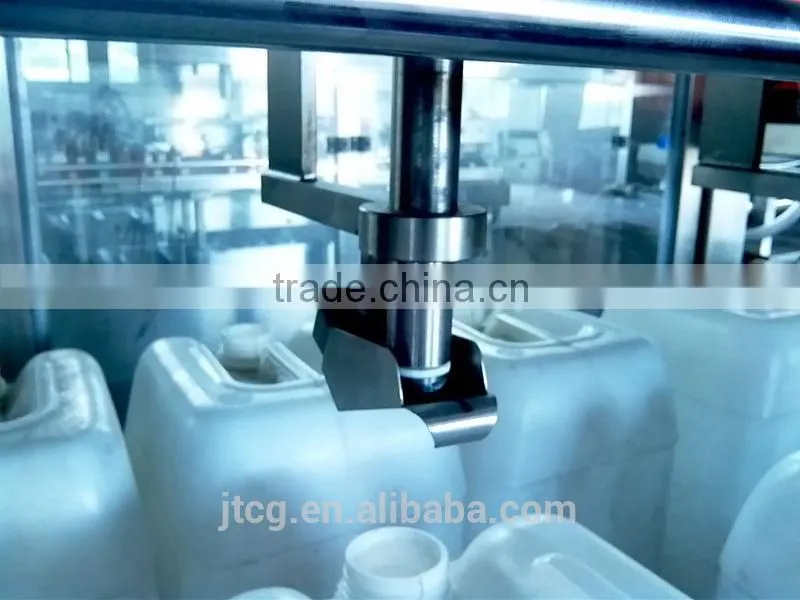

2. PLC programmable system and color touch screen to form the control center, automatic adjust the filling speed. No bottle no filling. The machine can stop automatically & alarm while bottles get blocked. The filling nozzles are equipped with filling blocker (prevent drawing, dropping and leaking). This machine can realize diving filling for foam liquids (Optional).
3. Stainless steel (316/ 304) & Non-poisonous, anti-corrosive PTEF hose are applied for excellent durability and sanitation compliance. The whole machine designed according to GMP standard, easy to dismantle, clean and maintain. Machine equipped safety protection, environmental, sanitary, adapting to various kinds of working places.
4. No need to change any components when changing filling volume or container, reset the machine in-house specification only, simple operation and much helps to save the equipment cost.
Technical Parameters:
- Filling nozzle: 8 heads (4, 6, 12, 16, 20, 24 heads are optional)
- Filling speed: 3000 ~ 4000 BPH (tested by 200ml water)
- Filling range: 40ml ~ 1000ml
- Filling accuracy: ±1%
- Air Pressure: 0.55Mpa-0.65Mpa
- Dimension: (L) 2000mm × (W) 900mm × (H) 2500mm
- Weight: 700 kg
- Pneumatic valve:YSC/ Korea
- PLC system:Mitsubishi/ Japan
- Touch screen:TouchWin color screen/ Canada
- Solenoid valve: AIRTAK/ Taiwan
- Cylinder: AIRTAK/ Taiwan
- Air source treatment: AIRTAK/ Taiwan
- Electro-optical system: Omron/ Japan
Suitable samples:
- Outside: Standard Export Wooden Case Pack
- Inner: Stretch Film
- Technical guidance & Pre-maintain Able to send engineer to maintain. (Hotel & delivery fee paid by customer);
- 1 year quality warranty and supply more set wearing parts;
- 24 hours/ 365 days online technical service;
- Welcome to send samples for testing.
Company Profile
Jintan Chenguang Light-Industry Machinery was founded in 1996, which is a high-tech company focusing on R&D and producing packaging machinery.
The company is located in Jintan, Jiangsu Province, Yangtze River Delta. To the east lies Shanghai; to the west Nanjing. It takes about an hour to reach Changzhou railway station or Nanjing airport. Our company covers an area of 18,000 m² and building area 8,456 m² with registration capital of RMB6,000,000. The main products are brand "JING JIU" series filling machine, capping machine, labeling machine, pouch packaging line and related auxiliary equipments such as the bottle unscramble, bottle feeder, cap sender, cap sorter, packing table, etc. Many techniques have obtained Chinese Patents. Company's products have been purchased by more than 20 provinces, 600 clients home and abroad. Due to convincing quality and excellent service, our company enjoys a high requtation in this field.
Because our company has been sticking to the Technological innovation and relying on many colleges and institutes, we possess a series of independent intellectual property rights products and techniques. So far, the company has developed eight patent new products, won eighteen National Patent, and has two High-tech products in Jingsu Province. As early as 2003 the company was rated as "high-tech enterprises", in 2013, we earned the award of "China 10 outstanding manufacturer of in-household care products industry". Apart from the innovation, we also lay emphasis on inner management as well as brand construction. At present, our company has passed ISO9001 & ISO14000. Since 2002, JINGJIU has been awarded famous-brand products in Jiangsu Province for eleven years in a row. In 2013, JINGJIU was awarded Well-know trademarks of Changzhou City.
Welcome to visit Chenguang to create our prosperous future all together.
