Home > Manufacturing & Processing Machinery > Mould > Mould Parts > 12v/24voltage FY014 Linear Actuator With High Load Capacity and Compact Size

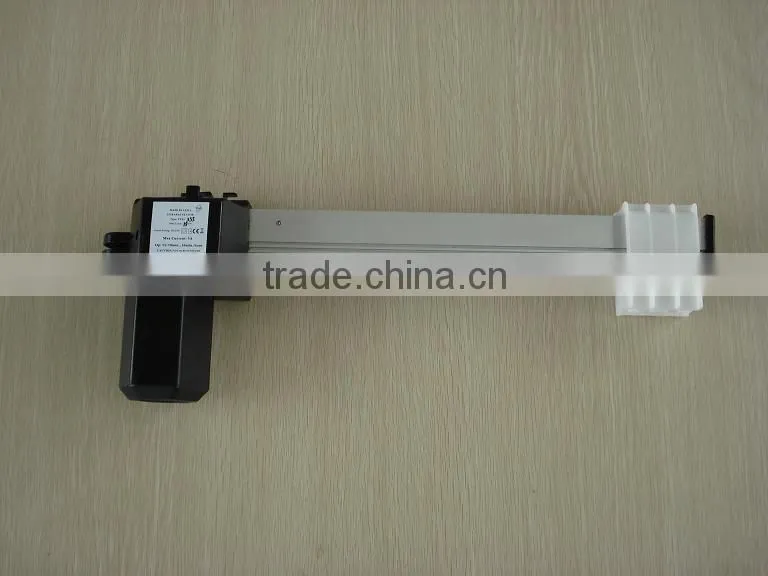

12v/24voltage FY014 Linear Actuator With High Load Capacity and Compact Size
US$ 27 - 42
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Material:
Other, Plastic and Aluminium
Use:
Sofa
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FY012 12v/24v dc Motor Linear ActuatorUS$ 27 - 42MOQ: 100 Pieces -
FY011C 12v/24v dc Linear Motors Electric Linear ActuatorUS$ 32 - 48MOQ: 100 Units
-
FY013 Actuators Linear Motor for Electric Hospital Bed, Patient BedUS$ 32 - 48MOQ: 50 Units
-
FY013 8000n Actuators Linear Motor for Electric Hospital Bed, Patient BedUS$ 32 - 52MOQ: 50 Units
-
FY012 Dental Chair Waterproof Linear ActuatorUS$ 27 - 42MOQ: 50 Pieces
Material
Other, Plastic and Aluminium
Use
Sofa
Place of Origin
Jiangsu, China
Brand Name
JDR
Model Number
FY014
CE Slider-driving Linear Actuator for furniture parts :
It can be used in sofa and chairs, Raising or falling of the back of electric sofa is based on the raise and falling of its white slider.
Specifications :
| 1) Thrust up to 4000N |
| 2) 12V / 24V DC input voltage |
| 3) Min Installation Dimension : S + 155mm |
| 4) Standard protection class, IP20 |
| 5) High-strength plastic housing protecting motor and gears |
| 6) Black plastic parts and anodized aluminium profile |
| 7) Noise level, 48 dB, actuator not loaded |
| 8) Elegant and compact design with small installation dimensions |
| 9) Colour, black plastic parts and natural anodiz ed Aluminium profile |
| 10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use |
Description :

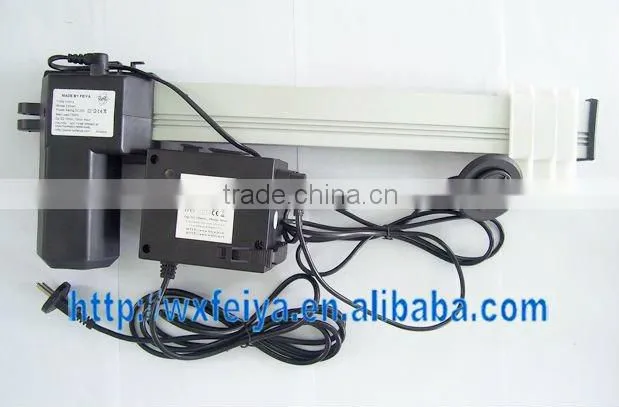

This type linear actuators allow you to screw the sliding block to your device giving flexibility and can also come complete ready to plug in and play out of the control box , include hand controller and power supply .
