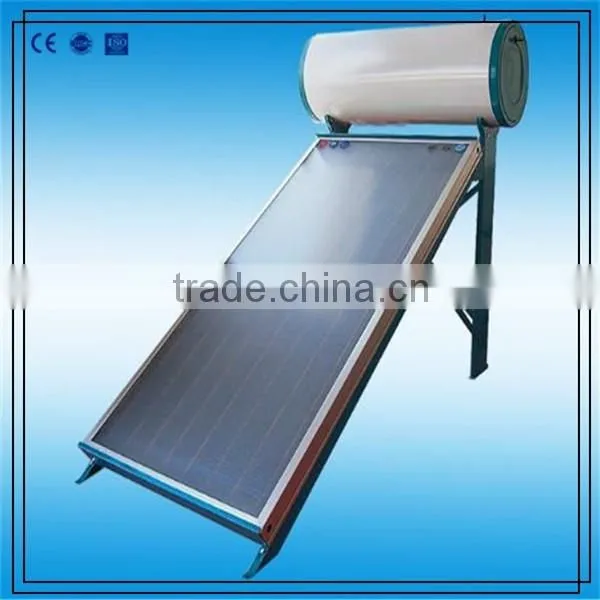

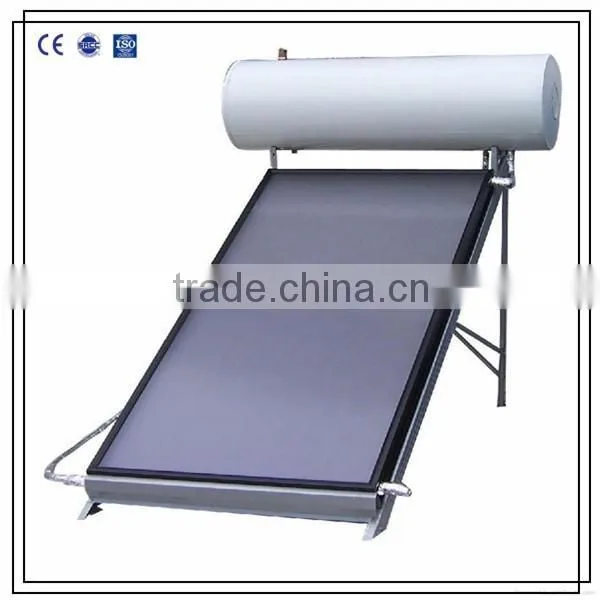

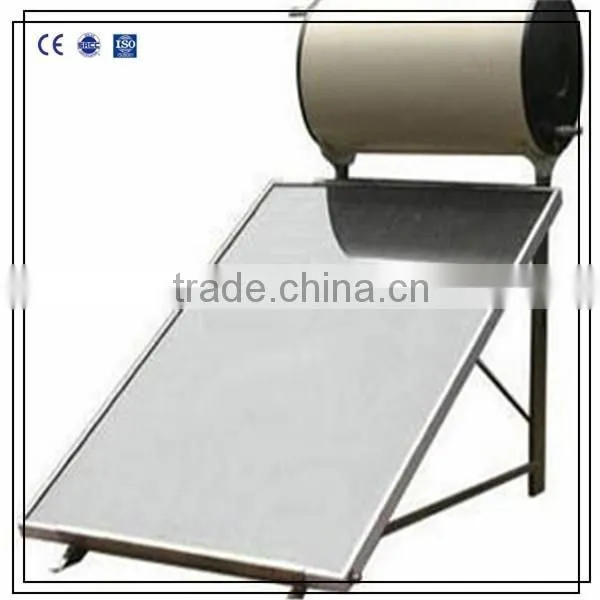

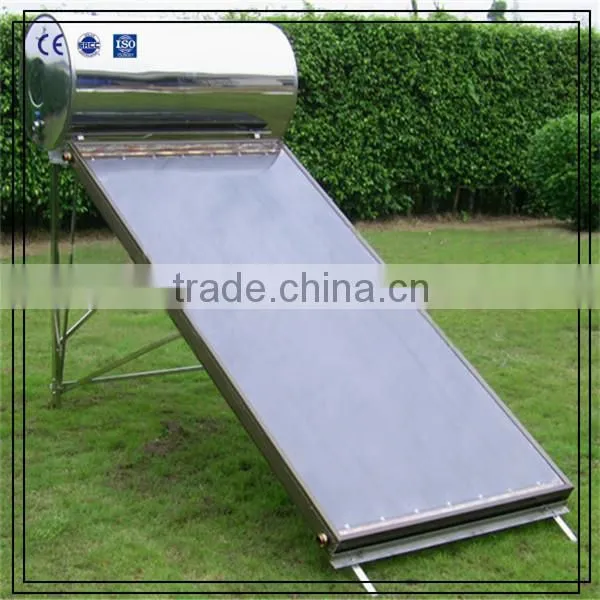

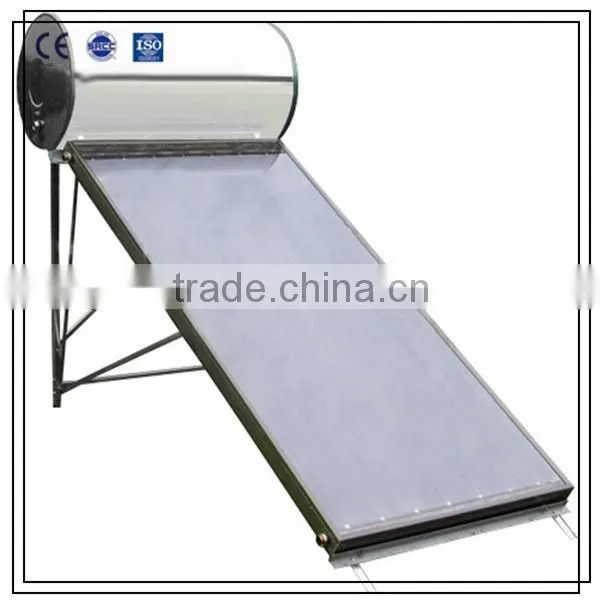

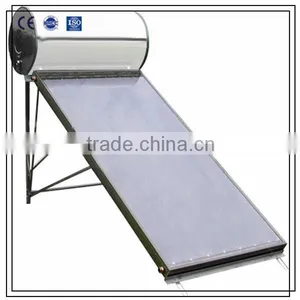

Integrative Flat Panel Solar Water Heater made in China
Flat Panel Solar Collector |
Size (mm) |
2000*1060*82 / 2000*1560*82 |
|||||
Cover glass |
Low-iron tempered glass with transmittance ≥91% |
||||||
Coating |
Selective anodic oxidation coating with absorptivity ≥95±2% |
||||||
Absorber |
Aluminum plate welded with copper header & riser tubes |
||||||
Insulation |
High-density fiberglass & PU foam |
||||||
Frame |
Anodized aluminum alloy with anti-aging elastic sealing |
||||||
|
Non-pressure Water Tank |
Capacity |
100L ~ 300L for hot water storage tank |
|||||
Inner tank |
Food-grade stainless steel SUS304-2B / SUS316 / Enamel |
||||||
Insulation |
High-density polyurethane foam with 80~90 hours heat preservation |
||||||
Tank shell |
Stainless steel SUS304-BA ( painted color steel is available) |
||||||
Bracket |
Shaped strong stainless steel adaptable to flat or slope roof |
||||||
Auxiliary Equipments |
Assistant Tank, Electrical Heater, Intelligent Controller, Magnesium Anode, Pipe& Fittings |
||||||
Tilt Angle |
25 ~ 50° |
||||||
Model Number |
Flat Panel Solar Collector |
Aperture Area/ m2 |
Tank Liter |
Container Loading Qty /sets |
|||
Size /mm |
Qty /pcs |
20GP |
40GP |
40HQ |
|||
SN-PF100 |
2000*1060*82 |
1 |
2 |
100 |
51 |
102 |
124 |
SN-PF120 |
1 |
2 |
120 |
49 |
98 |
119 |
|
SN-PF150 |
1 |
2 |
150 |
44 |
89 |
108 |
|
SN-PF150 |
2000*1560*82 |
1 |
3 |
150 |
35 |
70 |
85 |
SN-PF200 |
1 |
3 |
200 |
31 |
62 |
75 |
|
SN-PF250 |
2000*1060*82 |
2 |
4 |
250 |
25 |
49 |
60 |
SN-PF300 |
2 |
4 |
300 |
23 |
45 |
55 |
|
Accessories
Assistant Tank, with a ball valve inside to automatically refill water for storage tank and keep it full always;
Intelligent Controller, , display water temperature and water level in storage tank and automatically control backup heating device;
Electrical Heater , reliable electric booster with thermal cut-out working in cloudy or raining days for sufficient hot water;
Magnesium Anode , in areas with hard water, this device is installed in water storage tank to effectively prevent system from corrosion.
Pipe& Fittings, Φ22mm insulated stainless steel corrugated pipe or copper pipe is suggested as circulation pipe for flat panel solar water heater, copper fitting is suggested for pipe connection.
1 Advantages of SANENG Thermosiphon Flat Panel Solar Water Heater
Comparing with Thermosiphon vacuum tube solar water heater
1. More simple collector installation;
2. More strong and safe collector with tempered glass glazing;
3. Traditional solar collector with more market share;
4. Enjoys much more popularity in warm area;
2 Features
1. Most wide-used and practical collector in solar water heating system;
2. Wide applications for water heating, pool heating, space heating;
3. Large solar heating capacity up to 500,000 Liter hot water;
4. Much safe and stable performance with little maintenance;
5. Very efficient direct or indirect solar water heating;
6. Strong adaptability to flat or slope roof installation;
7. Easy installation and connection with simple structure;
8. Super anti-freezing performance with glycol-water mixture;
9. Applicable to passive and active solar water heating system;
3 Our Service
Fast response: Your inquiry will be replied within 24 hours via e-mail or online messenger;
Technical support: You have more than 10 years experience from SANENG SOLAR for product suggestion, installation guidance, market analysis, etc.
OEM & ODM: We welcome OEM & ODM requirements for solar collector, storage tank, installation frame, and even for some outsourcing equipments;
Sample checking: In spite of quality control in production, samples will be selected and installed to check prior to delivery;
Minimum order quantity: We offer sample sample manufacturing for customers to check SANENG quality and service;
Shipping service: SANENG company offers to arrange goods shipment to abroad ocean port or inland site, and if necessary to make goods insurance, customs clearance, etc;
Import certificates: SANENG company offers to make Certificate Origin CO, FORM A, FORM E, FORM F, customs certification, etc.
4 Remarks
1.Lead-time: 7-15 working days after receiving payment
2.Payment Term: T/T, L/C, Western Union
3. Warranty: 5 Years for the full system, 15 Years for the vacuum tube, and 1 year for accessories
4. Trade Term: FOB, CFR and CIF
5. Contact: Ms. eva he Mobile: (00)86-13511390503 Skype: eva201423
