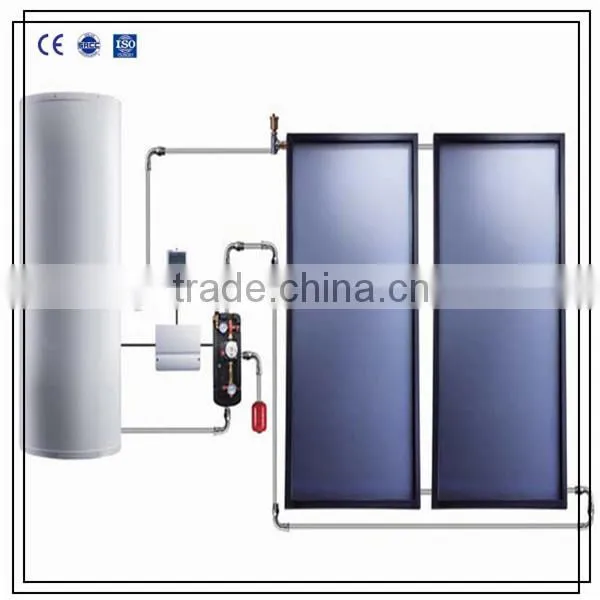

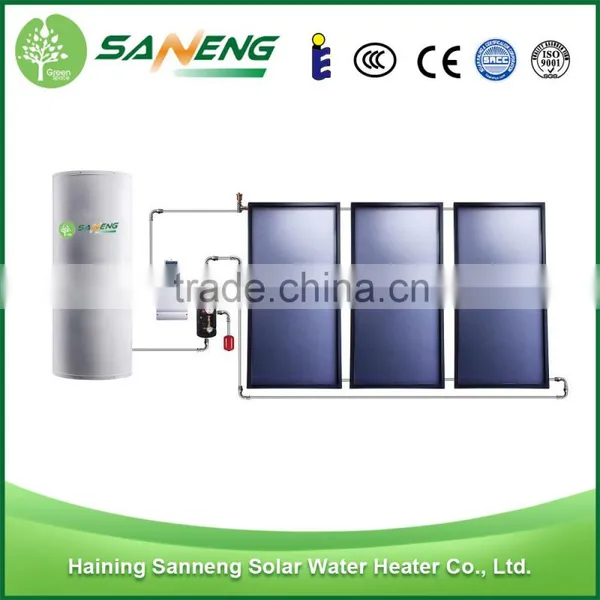

split flat panel solar water heater,high pressure solar water heater factory
Flat Plate Solar Water Heater Description :
Flat plate Solar Water Heater is one of common Solar Water Heater for solar water-heating system in homes and solar space heating.Flat plate Solar Water Heater provide quality hot water with its new solar energy efficient flat plate design.This glazed collector includes a selective coating to maximize the solar heat absorption ,weather resistant aluminium framing and interior fibreglass insulation for increased efficiency
Flat Plate Solar Water Heater Features:
1.Using patent advanced coating technology with high efficiency performance.
2.High strength aluminium-alloy structure with surface varnish baking
3.High visual shape ,easy installation ,maintenance free
4.Pressurized designing ,operate with pressure up to 1 Mpa
Advantage:
1.16 years sale experience
2.Certificate:CE,ISO9001-2008,SRCC,Solar keymark,SGS,CCC
3.Life span:Approximate to 15 years
4.We can customize according to customers' requirement
5.Warranty time :5 years
Type |
Flat-Plate |
Pressure |
pressurized |
Circulation Type |
Direct / Open Loop (Active) |
Heating System |
Batch/ICS(Passive) |
Connection Type |
Direct-Plug |
Installation |
Freestanding |
Housing Material |
colour steel |
Certification |
CE, SRCC,ISO9001-2008, CCC, Solar keymark, SGS |
Capacity |
200 |
Place of Origin |
Zhejiang, China (Mainland) |
Brand Name |
Sanneng/OEM |
Model Number |
SN-SF01 |
Heat preservation |
More than 72 hours |
Warranty time |
5years |
Flat Plate Solar Water Heater Technical Data :
Material |
Tempered textured glass |
Cover thickness |
4mm |
Cover transmision |
87% |
Ext.Dimension |
2000*1060*75/82/95mm |
Aperture area |
2 m² |
Absorber |
|
Dimension L*W*T |
1840*980*0.15 |
Material |
Red copper |
Surface coating |
Black chromed/blue sputtered |
Construction type |
Fin&tube(ultrasonic welding) |
Header mateial |
Copper T2 |
Header tube size(L*W*T) |
1886mm*Φ10mm*0.458pcs |
Absorptivity |
α=0.93(±0.05) |
Emittance |
ξ=0.12(±0.02) |
hermal insulation |
|
insulation material |
Fibie glass Insulation(blacking backing) |
insulation thickness |
Back 25mm |
Conductivity(w/mk) |
≤0.048w/m.k under test temperature 70°C |
Other parameters |
|
Bracket/Frame |
Aluminum alloy |
Back plate |
Galvanized steel plate 0.3mm |
Max operation temperature |
200°C |
Max pressure |
1400kpa |
sealing gasket |
EPDM |
Max. working temperature |
120°C |
Max. working pressure |
10bar |
Daily output colume |
105˜300L |
