0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM

0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM thumbnail-1
0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM thumbnail-2
0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM thumbnail-3
0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM thumbnail-4
0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM thumbnail-5
0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM thumbnail-6
0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM photo-1

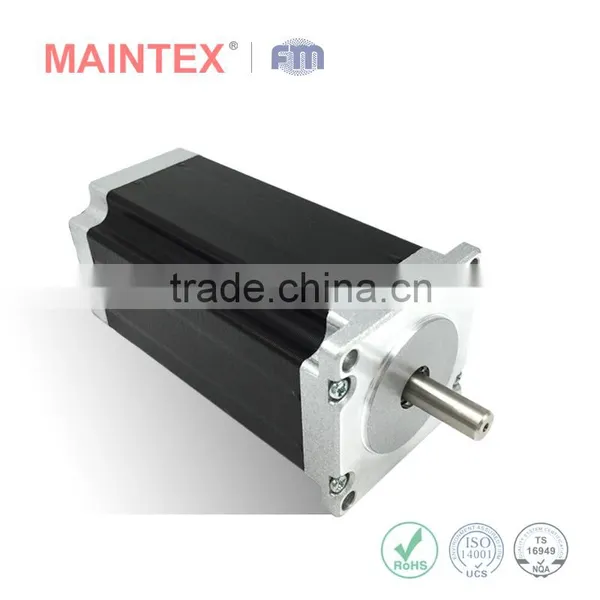

0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM photo-2

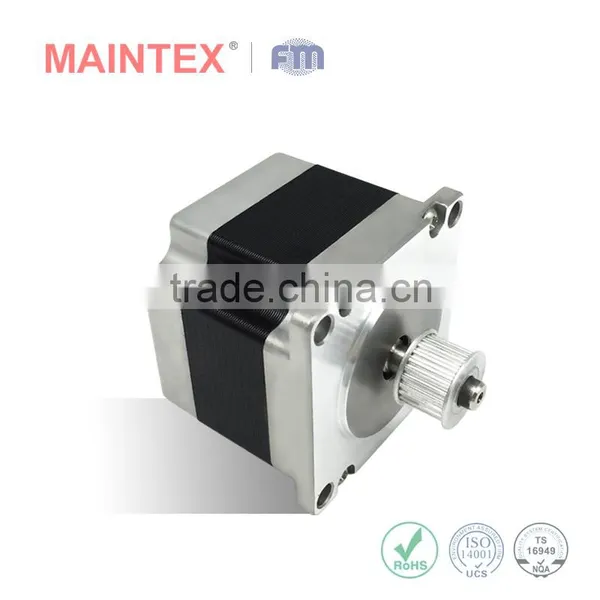

0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM photo-3

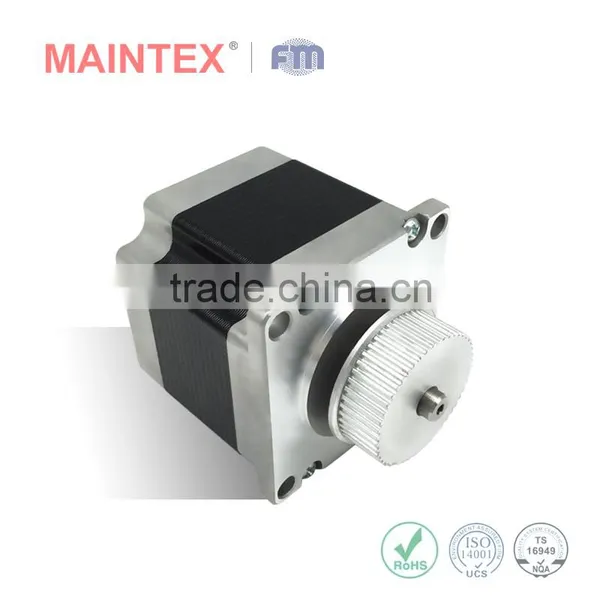

0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM photo-4

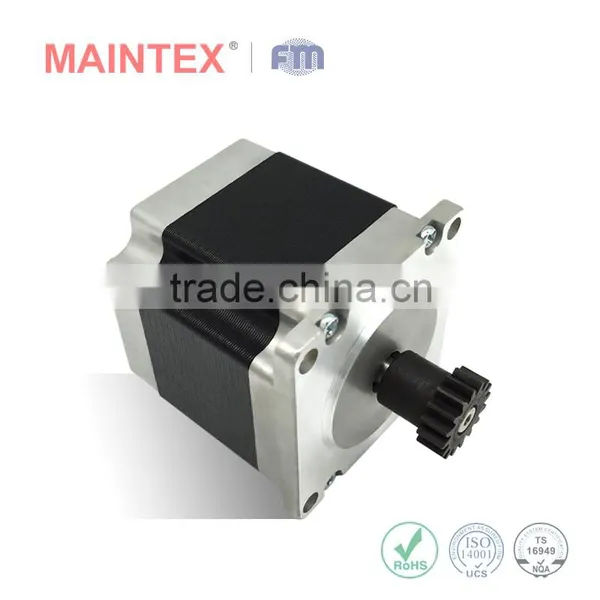

0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM photo-5

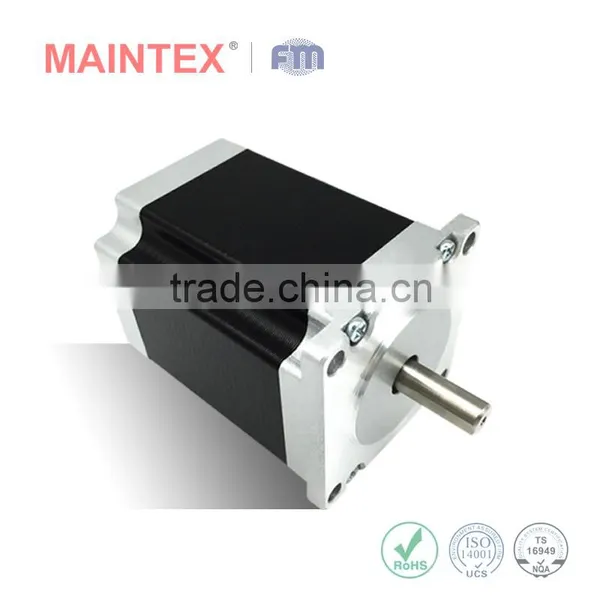

0.9 Degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM photo-6
US$ 4 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Maintex
Model Number:
57BYGH/57HSM /NEMA23
Contact Supplier Request Quote Chat Now
Shenzhen Maintex Intelligent Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Maintex
Model Number 57BYGH/57HSM /NEMA23
Phase 3
Type Hybrid
Certification CCC, CE, ISO, ROHS, UL, Other, CCC, CE, ISO, ROHS, UL, TS16949
Step Angle(degrees) 0.9 degree
Holding Torque 45-320 N.cm
Current / Phase 0.3-7 A



0.9 degree NEMA 23 Hybrid Stepper Motor 57HSM


Description of 0.9 degree NEMA 23 Hybrid Stepper Motor 57HSM/57BYGH

Step Angle Accuracy: ±5%(full step, no load)

Resistance Accuracy: ±10%

Inductance Accuracy: ±20%

Temperature Rise: 80℃max (rated current, 2 phase on)

Ambient Temperature: -20℃~+50℃

Insulation Resistance: 100MΩ min,500VDC

Dielectric Strength: 500VDC for one minute

Shaft Radial Play: 0.02mm max(450g load)

Shaft Axial Play: 0.08mm max(450g load)

Max. radial force: 28N(20mm from the flange)

Max. axial force: 10N

Rotation:        CCW

Insulation Class B(130℃)

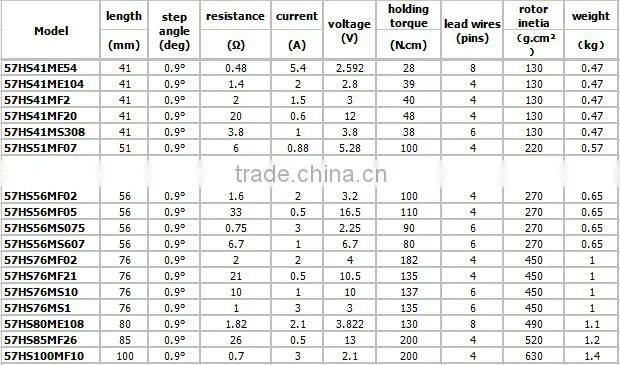

Parameter of  0.9 degree NEMA 23 Hybrid Stepper Motor 57HSM/57BYGH





 0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM

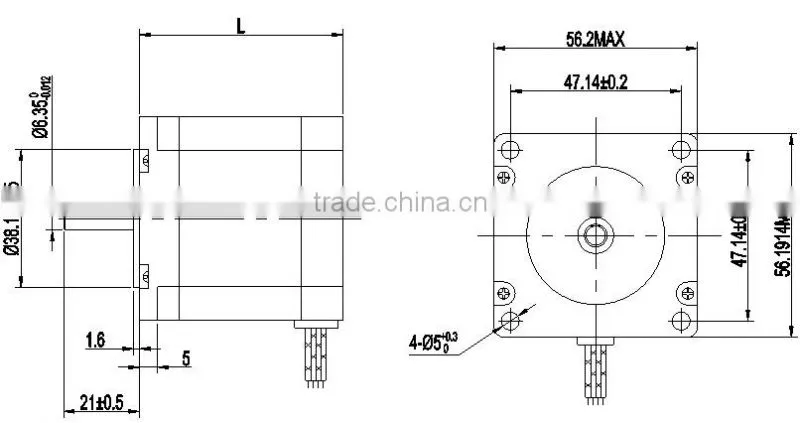

Drawing of  0.9 degree NEMA 23 Hybrid Stepper Motor 57HSM/57BYGH

 0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM









Applications









Our Company



0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM0.9 degree NEMA 23 Hybrid Stepper Motor Square 57BYGH / 57HSM
